GATES 85731 - Hydraulic Hose - C14CT PTFE Hose - SAE100R14 Type B - Conductive
$40699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

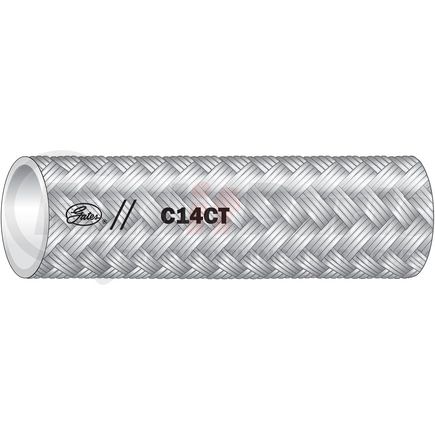

C14CT PTFE Hose - SAE100R14 Type B - Conductive
Features & Benefits
- For use with Brass and Stainless Steel C14 Couplings [G40 Series]
- Temperature Range: Dynamic: -65 Deg. F to +400 Deg. F (-54 Deg. C to +204 Deg. C); Static: -65 Deg. F to +450 Deg. F (-54 Deg. C to +232 Deg. C)
- NOTE: Electrostatic Discharge: Many applications involving PTFE hose do not require a conductive tube
- NOTE: But you must review the potential for electrostatic discharge for every application and be aware that static electricity can be hazardous
- NOTE: In those cases where electrostatic discharge can occur, conductive PTFE hose with a conductive tube (Gates C14CT) is recommended
Product Attributes
| Product Type | C14CT PTFE Hose - SAE100R14 Type B - Conductive |
| Industrial Description | 8C14CTX25FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1000 PS |
| Burst Pressure | 4000 PS |
| Temperature Rating | -65 Deg. F to +400 Deg. F (Dynamic); -65 Deg. F to +450 Deg. F (Static) |
| Length | 25 FT |
| 9941 | 8 |
| Inside Diameter | .406 IN |
| Outside Diameter | .55 IN |
| 2053 | 2000 PS |
| 9879 | 5.3 IN |
| 9835 | 28 INHG |
| Tube Description | Conductive Black/White Smooth Bore Polytetrafluoroethylene |
| Hose Material | PTFE - Type B |
| Reinforcement Material | One Braid of 300 Series Stainless Steel Wire - 304 Stainless |
| Cover Color | Silver |
| Cover Material | 300 Series Stainless Steel Wire |
| Cover Type | Braided |
| 9856 | C14 Couplings |
| 9453 | 100R14 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00072053223002 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
