(888) 312-8812 Login SignupGATES 85688 MegaTech 500 High-Temp Oil-Air Return Hose
$4,63499
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jun 17
GATES 85688 Part Description
Manufacturer
Product Description

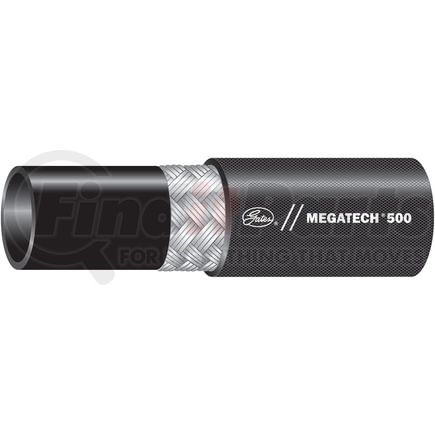

MegaTech 500 High-Temp Oil-Air Return Hose
Features & Benefits
- For use with GL Couplings [G43 Series] and GlobalSpiral Plus Couplings [G22 Series]
- 500 PSI constant pressure for all ID's
- Temperature Range: Petroleum-based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 85688 Specifications
Product Attributes
| Product Type | MegaTech 500 High-Temp Oil-Air Return Hose |
| Industrial Description | 32MEGATECH500X50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 500 PS |
| Burst Pressure | 2000 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Length | 50 FT |
| Dash Size | 32 |
| Inside Diameter | 2 IN |
| Outside Diameter | 2.48 IN |
| Bend Radius | 18 IN |
| Vacuum Rating | 30 INHG |
| Tube Description | Black Tube Specifically Compounded for Temperature & Chemical Resistance |
| Hose Material | CPE - Type J |
| Reinforcement Material | One Braid of High-Tensile Steel Wire |
| Cover Material | Textile Braid, Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| Coupling Recommendation | GL, GlobalSpiral Plus, Stainless Steel S |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00072053497243 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 85688 Cross References
| Brand | Part Number |
|---|---|
| N/A | 925006439 |
| NAPA | 85688 |
