GATES 85582 - Hydraulic Hose - G4H Return Line and Suction Hose
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

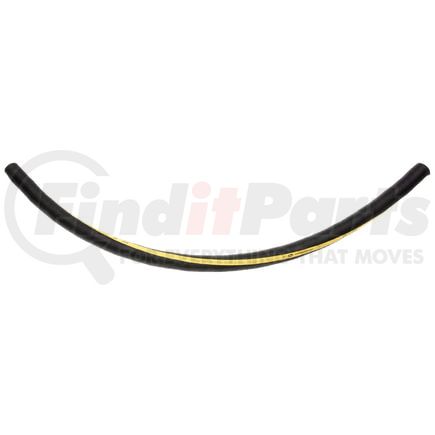

G4H Return Line & Suction Hose
Features & Benefits
- Meets or exceeds requirements of SAE 100R4 (except 1 in. I.D.)
- Uses half the bend radius of SAE 100R4
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg F to +275 Deg F (-40 Deg C to +135 Deg C)
- Recommended Couplings: MegaCrimp Couplings (-12 & -16)
Product Attributes
| Product Type | G4H Return Line & Suction Hose |
| Industrial Description | 20G4HX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 200 PS |
| Burst Pressure | 800 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) |
| Length | 25 FT |
| 9941 | 20 |
| Inside Diameter | 1.25 IN |
| Outside Diameter | 1.68 IN |
| 9879 | 4 IN |
| 9835 | 25 INHG |
| Tube Description | Black, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Double Spiral Textile Reinforced w/ a Helical Spiral-Wire to Prevent Collapse |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| 9856 | MegaCrimp |
| 9453 | 100R4 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| UPC | 00072053295016 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
