(888) 312-8812 Login SignupGATES 85470 25 ft. EFG6K Spiral Wire Hydraulic Hose, 1-1/4" ID x 1.97" OD, 6000 psi Max WP
Tap to view 1 more
$3,26199
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Sep 11
GATES 85470 Part Description
Manufacturer
Product Description

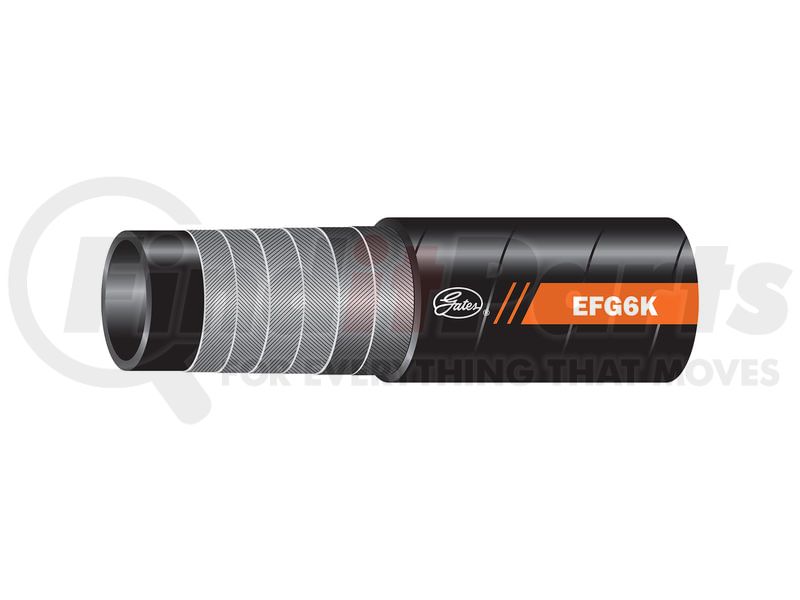

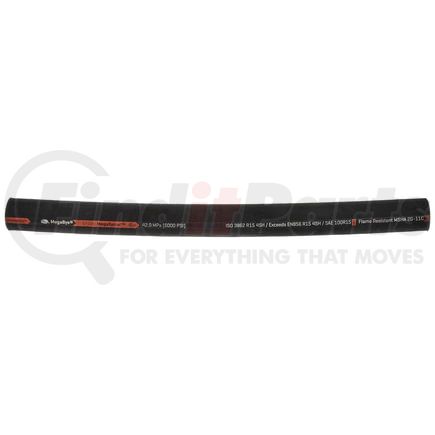

EFG6K Spiral Wire Hose - SAE 100R15
Features & Benefits
- Temperature Range: -40 Deg F to +250 Deg F (-40 Deg C to +121 Deg C)
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20)
GATES 85470 Specifications
Product Attributes
| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 |
| Industrial Description | 20EFG6KX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Extremely High Pressure |
| Maximum Working Pressure | 6000 PS |
| Burst Pressure | 24000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 25 FT |
| Dash Size | 20 |
| Inside Diameter | 1.25 IN |
| Outside Diameter | 1.97 IN |
| Bend Radius | 8.2 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Six Alternating Layers of Spiraled, High-Tensile Steel |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| SAE Standard | 100R15 |
| EN Standard | 856 4SH |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Stock Status | N |
| UPC | 00072053508000 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
