(888) 312-8812 Login SignupGATES 70962 MegaTech 3000 High-Temp Oil-Air Return Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 70962 Part Description
Manufacturer
Product Description

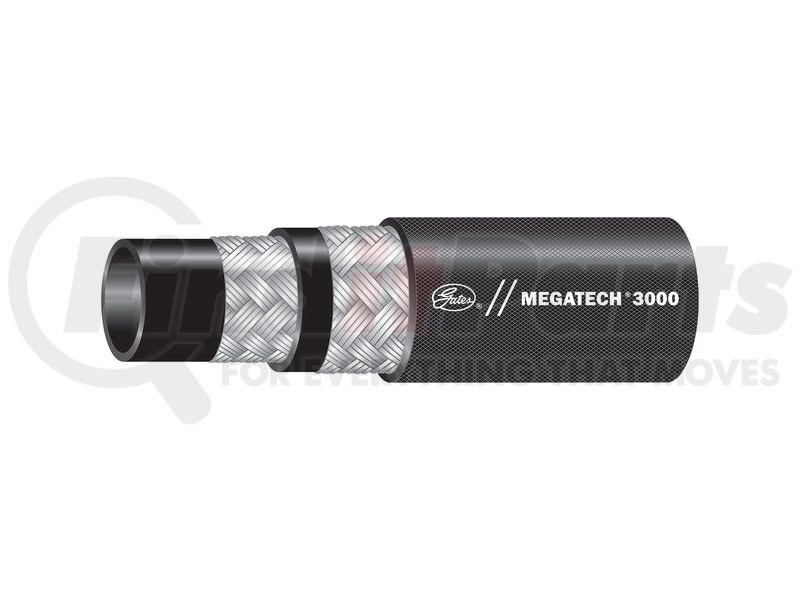

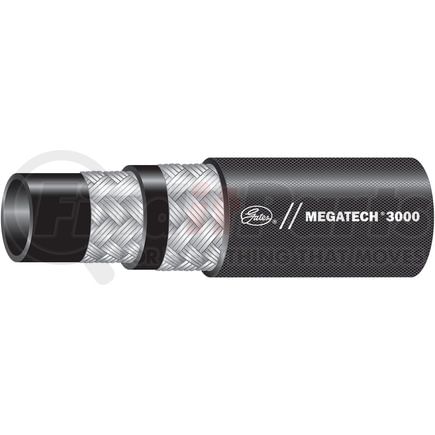

MegaTech 3000 High-Temp Oil-Air Return Hose
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- 3000 psi constant pressure for all ID's and has a black textile braid cover
- Temperature Range: Petroleum-based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
- Temperature Range: Petroleum–based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70962 Specifications
Product Attributes
| Product Type | MegaTech 3000 High-Temp Oil-Air Return Hose |
| Industrial Description | 8MEGATECH 3000XREEL |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3000 PS |
| Burst Pressure | 12000 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Length | 350 FT |
| Dash Size | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .86 IN |
| Bend Radius | 3.5 IN |
| Vacuum Rating | 30 INHG |
| Tube Description | Black Tube Specifically Compounded for Temperature & Chemical Resistance |
| Hose Material | CPE - Type J |
| Reinforcement Material | Two Braids of High-Tensile Steel Wire |
| Cover Material | Textile Braid, Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00770075156185 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 70962 Cross References
| Brand | Part Number |
|---|---|
| NAPA | 70962 |
