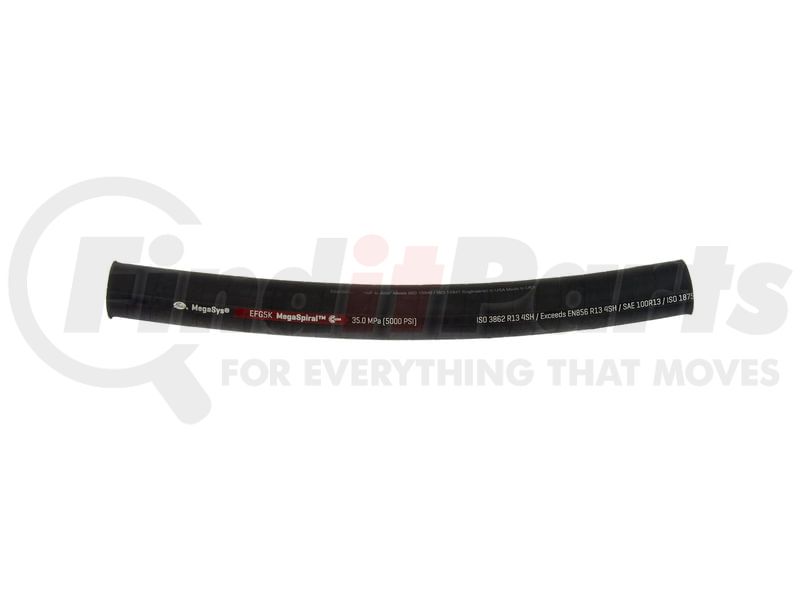

GATES 70730 EFG5K Spiral Wire Hose - SAE 100R13

Name: Gates 70730 EFG5K Spiral Wire Hose - SAE 100R13
SKU: 70730
Price: 73.74 USD
Availability: OutOfStock

Tap to view 1 more

$73.74

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

GATES 70730 Part Description

EFG5K Spiral Wire Hose - SAE 100R13

For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
Tested to industry-leading 1,000,000 impulse cycles
XtraTuff hose lasts up to 25 times longer than standard hose
MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)

Product Type	EFG5K Spiral Wire Hose - SAE 100R13
Industrial Description	16EFG5KXLL
Type	Hydraulic Hose
Hose Pressure Description	Extremely High Pressure
Maximum Working Pressure	5000 PS
Burst Pressure	20000 PS
Temperature Rating	-40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Length	200 FT
Dash Size	16
Inside Diameter	1 IN
Outside Diameter	1.53 IN
Bend Radius	6 IN
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C

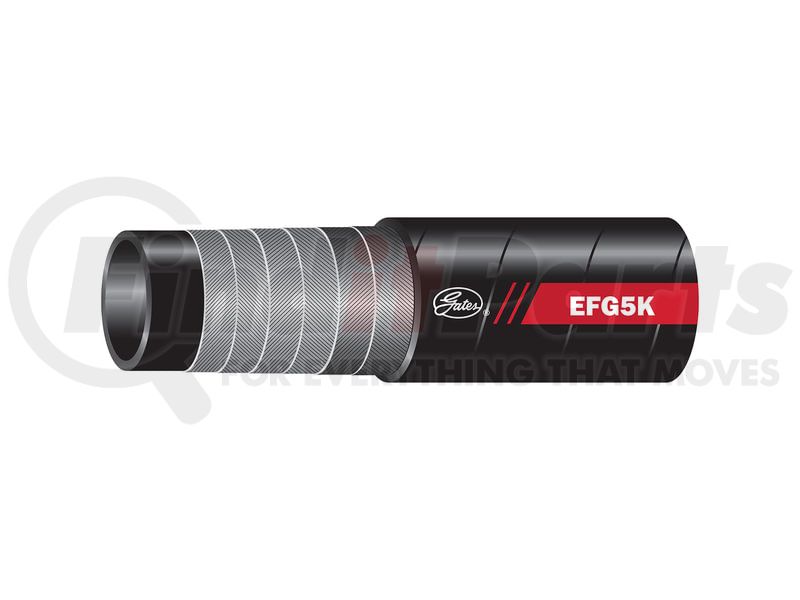

Reinforcement Material	Four Alternating Layers of Spiraled, High-Tensile Steel
Cover Material	Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline
Cover Type	Type A - Flame & Oil Resistant
Cover Color	Black
Coupling Recommendation	GlobalSpiral, Stainless Steel S
SAE Standard	100R13
EN Standard	856 R13, 856 4SH
ISO Standard	18752 Grade D, 3862 Type R13
