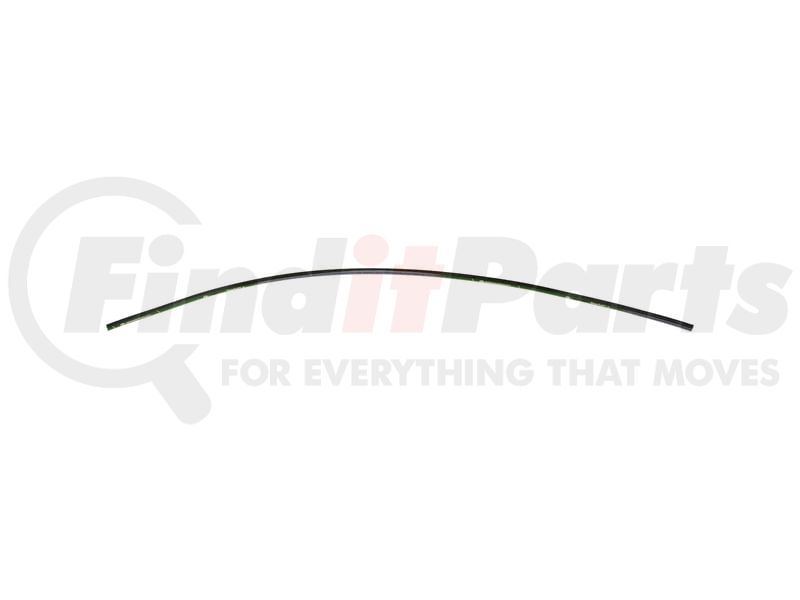

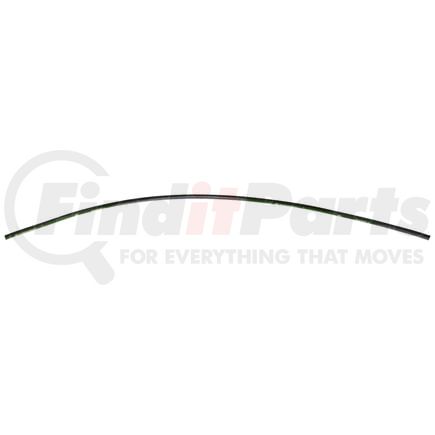

GATES 70407 - Hydraulic Hose - M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - MegaTuff Cover
$3,09249
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

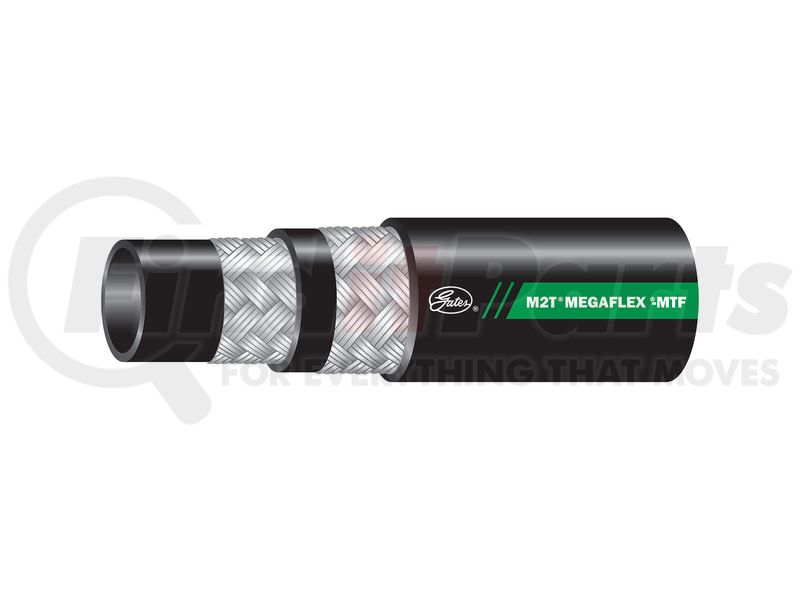

M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Product Attributes
| 9453 | 100R16 |
| 9954 | 857 2SC, 853 2SN |
| 9953 | 11237 2SC R16, 1436 2SN R2 |
| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - MegaTuff Cover |
| Industrial Description | 10M2T-MTFXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3800 PS |
| Burst Pressure | 15200 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 220 FT |
| 9941 | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .95 IN |
| 9879 | 3 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Cover Color | Black |
| 9856 | GlobalSpiral, MegaCrimp, Stainless Steel B |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00072053435511 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
