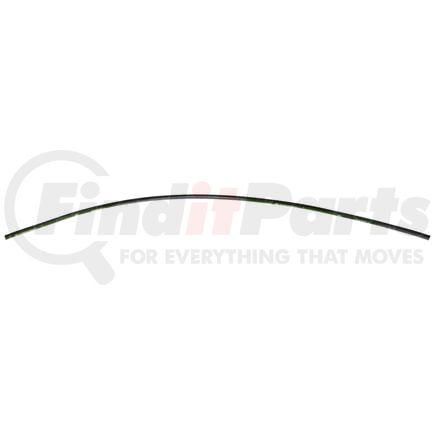

GATES 70389 Part Description
Manufacturer
Product Description
M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70389 Specifications
Product Attributes
| Burst Pressure | 17200 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 330 FT |
| Dash Size | 8 |
| Inside Diameter | .5 IN |
| Outside Diameter | .82 IN |
| Bend Radius | 2.8 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| SAE Standard | 100R16 |
| EN Standard | 857 2SC, 853 2SN |
| ISO Standard | 11237 2SC R16, 1436 2SN R2 |
| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - MegaTuff Cover |
| Industrial Description | 8M2T-MTFXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 4300 PS |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Stock Status | S |
| UPC | 00072053352740 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70389 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | XR16SC-08X250 |
| N/A | 04029981 |
| NAPA | 70389 |
| Parker | 471ST-8-BX, 471ST-8-RL, 471ST-8 |
