GATES 70294 Part Description
Manufacturer
Product Description

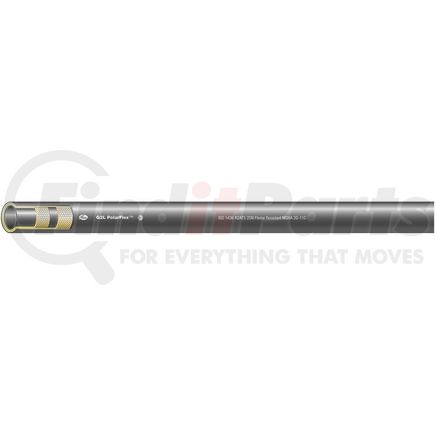

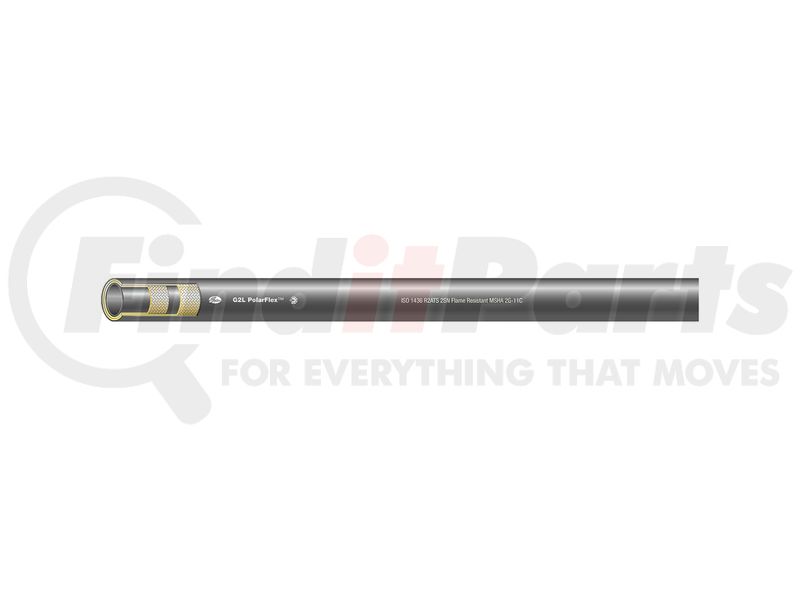

Global G2L PolarFlex Hose - SAE 100R2 Type S
Features & Benefits
- For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series] and MegaCrimp Couplings [G25 Series]
- Tested to industry-standard 600,000 impulse cycles
- Unique low temperature tube for extended service life at extremely low temperatures
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -70 Deg. F to +212 Deg. F (-57 Deg. C to +100 Deg. C)
GATES 70294 Specifications
Product Attributes
| Product Type | Global G2L PolarFlex Hose - SAE 100R2 Type S |
| Industrial Description | 20G2LXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 1825 PS |
| Burst Pressure | 7300 PS |
| Temperature Rating | -70 Deg. F to +212 Deg. F (-57 Deg. C to +100 Deg. C) |
| Length | 120 FT |
| Dash Size | 20 |
| Inside Diameter | 1.25 IN |
| Outside Diameter | 1.84 IN |
| Bend Radius | 16.5 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Thin Synthetic Rubber - Chloroprene - Type A |
| Cover Type | Type A - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSprial, MegaCrimp |
| SAE Standard | 100R2 |
| EN Standard | 853 2SN |
| ISO Standard | 1436 2SN R2 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00072053530322 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70294 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | GH120-20, GH793-20 |
| Goodyear | LR2SN-20X100CL, LR2SN20X100 |
| N/A | 04030063 |
| NAPA | 70294 |
| Weatherhead | H42520-150 |
