(888) 312-8812 Login SignupGATES 70074 RLC 3-Fiber Braid Return Line & Low Pressure Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 70074 Part Description
Manufacturer
Product Description

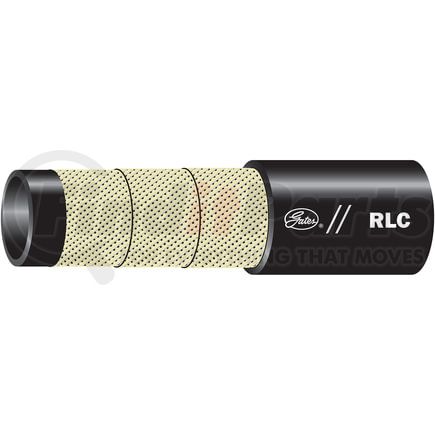

RLC 3-Fiber Braid Return Line & Low Pressure Hose
Features & Benefits
- Generally connected to 100R4 stems, beaded nipples or tube type ports with worm gear clamps
- Temperature Range: Hydraulic Oil Lines: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) constant
- Hydraulic Oil Lines: up to +300 Deg. F (+149 Deg. C) intermittent (up to 10 percent of operating time)
- Air: -40 Deg. F to +160 Deg. F (-40 Deg. C to +71 Deg. C)
GATES 70074 Specifications
Product Attributes
| Product Type | RLC 3-Fiber Braid Return Line & Low Pressure Hose |
| Industrial Description | 20RLCXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 200 PS |
| Burst Pressure | 800 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (Constant), +300 Deg. F (Intermittent) & +160 Deg. F (Air) |
| Length | 50 FT |
| Dash Size | 20 |
| Inside Diameter | 1.25 IN |
| Outside Diameter | 1.88 IN |
| Bend Radius | 10 IN |
| Vacuum Rating | 25 INHG |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Three Fiber Braids |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | Use Barbed Stem or Beaded Tube w/ Clamps Only |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053226119 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70074 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04030292 |
| NAPA | 70074 |
| Weatherhead | H11520300R, H11520-300R |
