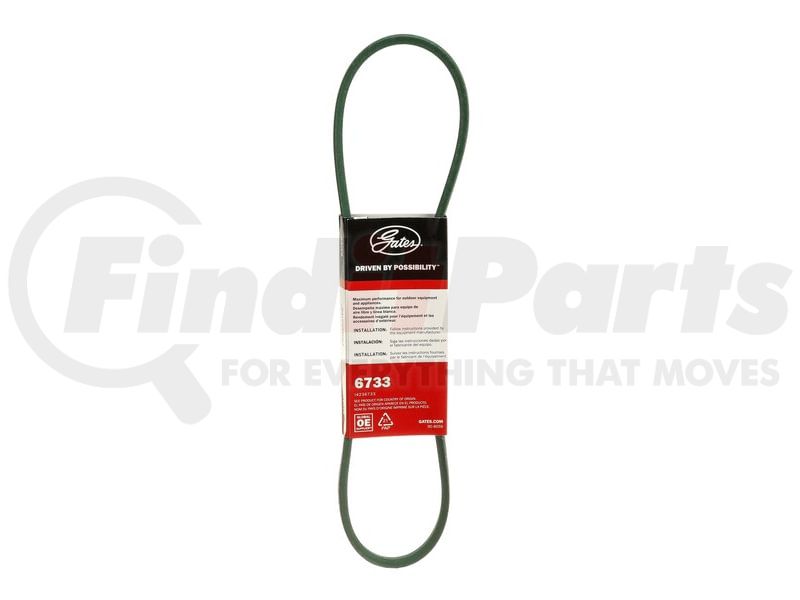

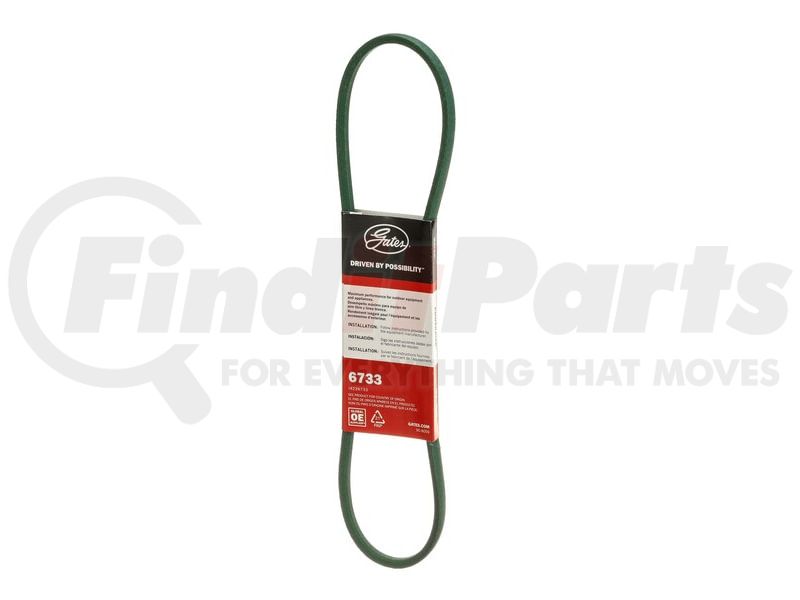

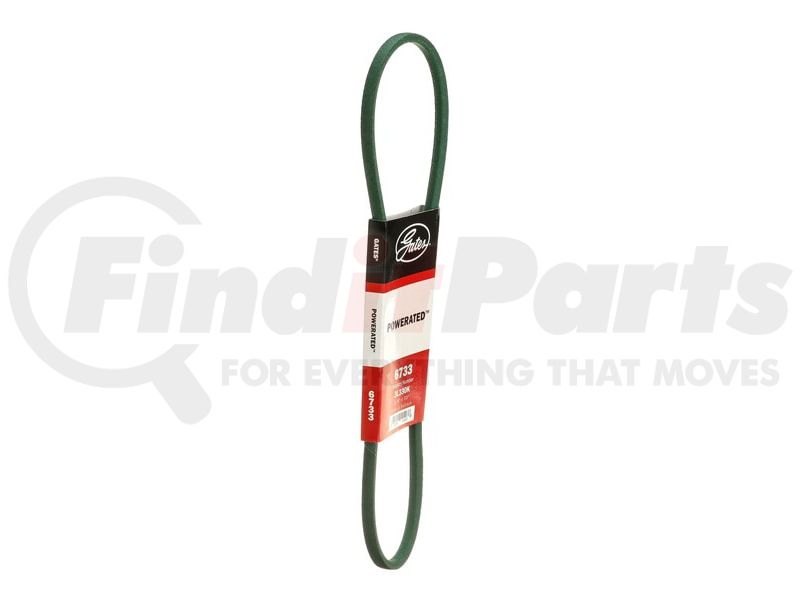

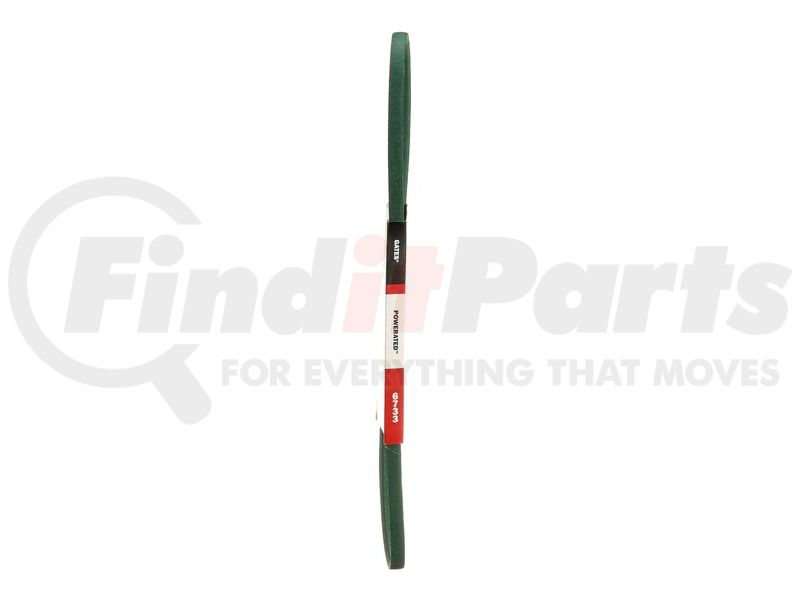

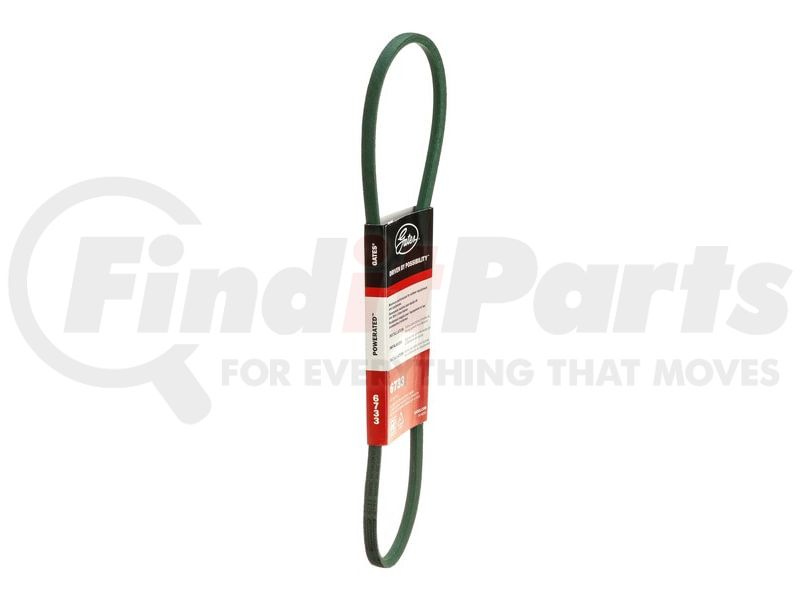

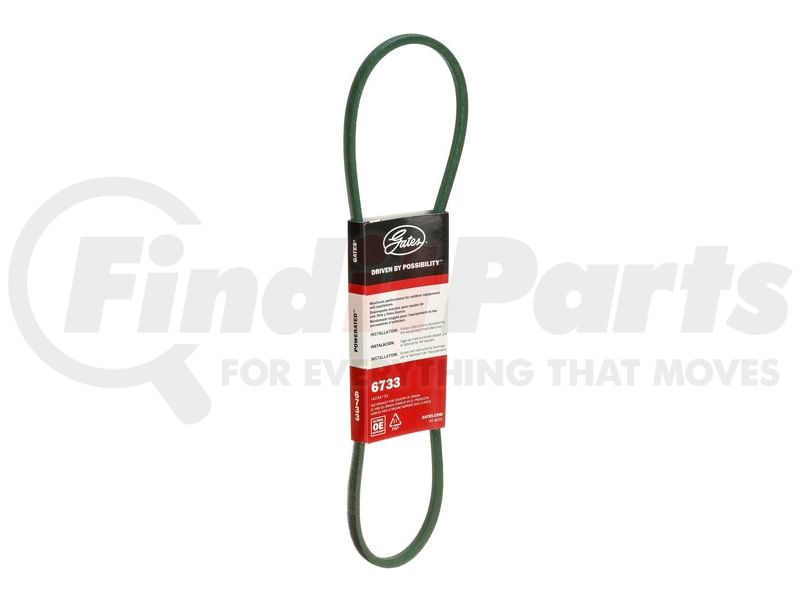

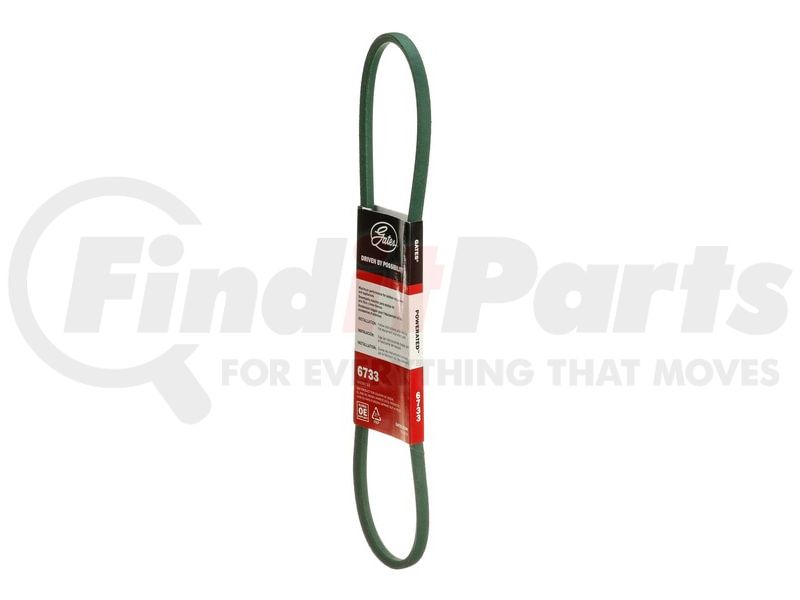

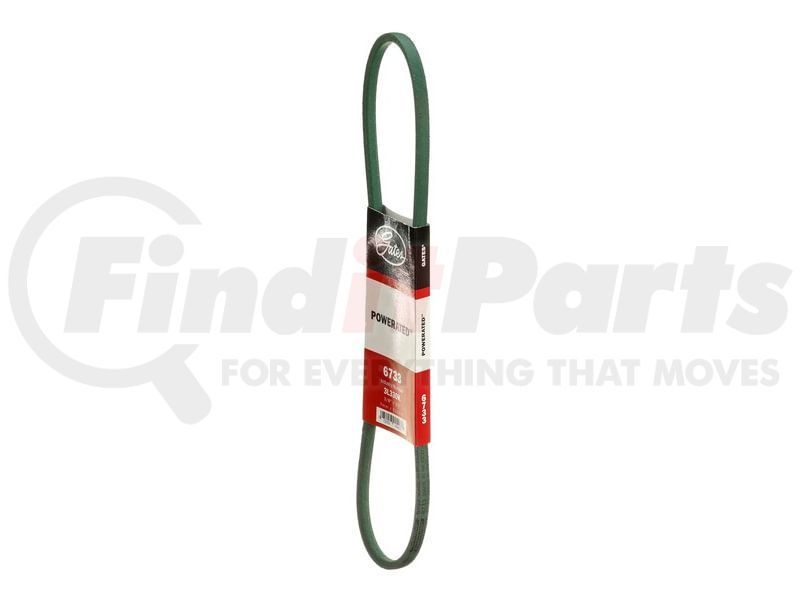

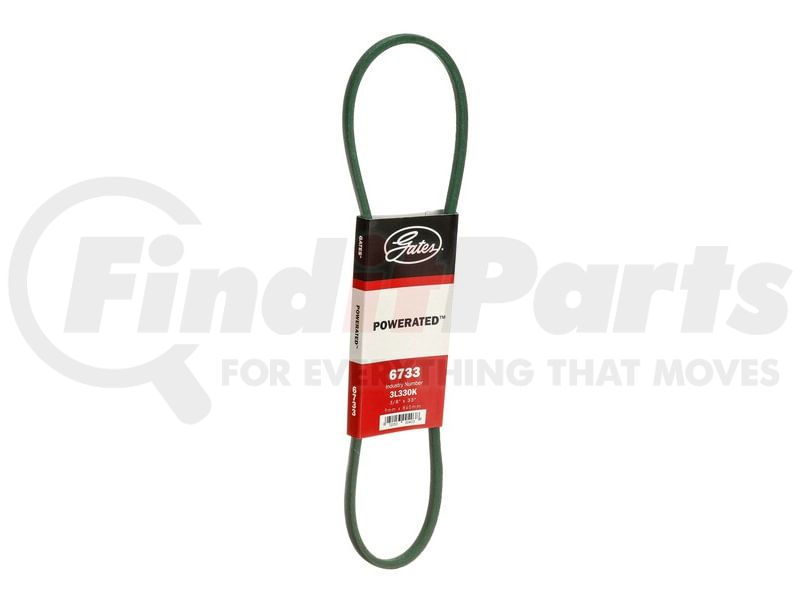

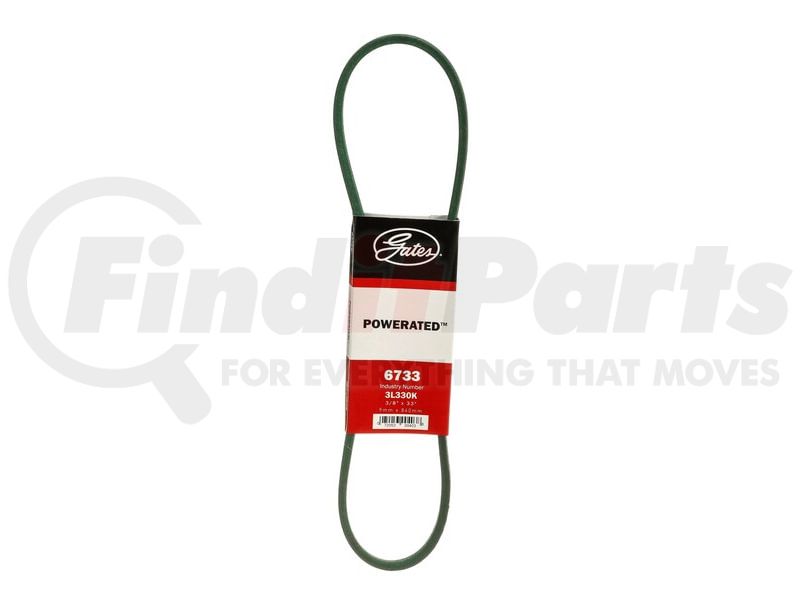

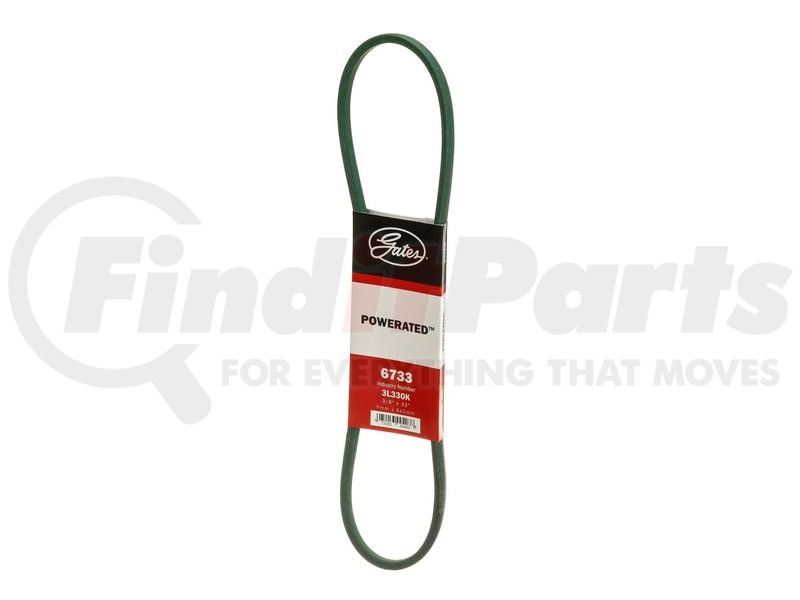

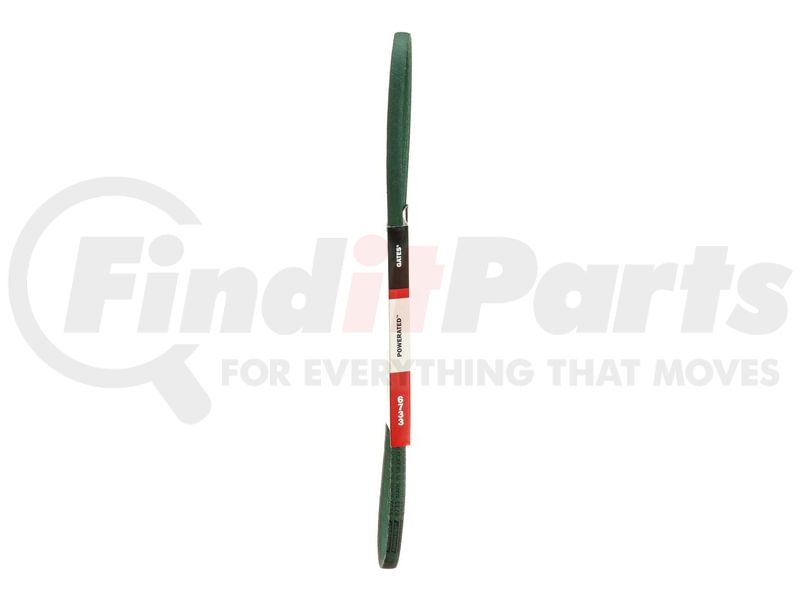

(888) 312-8812 Login SignupGATES 6733 PoweRated FHP Medium Horse-Power V-Belt
Tap to view 2 more
$1499
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
GATES 6733 Part Description
Manufacturer
Product Description
PoweRated FHP Medium Horse-Power V-Belt
Application Summary
Ariens, 835006, , Tractor To Blower Drive
Features & Benefits
- Designed with distinct green color bareback construction for smooth clutching on shock loaded, backside idler-driven equipment to ensure high crack resistance
- Low, aramid tensile cord positioned in a thin profile gives extreme flexibility and limited stretch with extraordinary strength and durability
- Meets RMA oil and heat-resistant standards, but not for static conductivity
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- Note: Gates PoweRated V-belts can be substituted for equivalent sizes of FHP low horsepower Gates Truflex V-belts
GATES 6733 Specifications
Product Attributes
| Type | FHP Medium Horse-Power V-Belt |
| Cross Section Designation | 3L |
| Angle | 38 |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 33 in |
| Effective Length | 32.9 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Top Width | 10 mm |
| Outside Circumference | 838 mm |
| Effective Length | 836 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053004038 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 6733 Part Interchanges
| Brand | Part Number |
|---|---|
| Mopar | B3L-330 |
| Murray | 780141, B579932, B583050 |
| White | Q622451 |
| ACDelco | 3L330, 3L330P |
| Dayco | 0M033, 3L330, 38X330, L333 |
| BF Goodrich | 0330 |
| General Electric | 501211, K5705475AF17 |
| Goodall | W0061, W00661 |
| Prime-Line | 7-3H330 |
| CARQUEST | 1330, 6733 |
| Silver Streak | 75-633, DB3L330, 75-333 |
| Ariens | 07200633, 072042, 072098, 072138, 07236300, 72042, 72098, 72138, 72321, 72363, 07232100 |
| Bendix Appliance | 904037 |
| Bendix-Westinghouse | 18086 |
| Bolens | 1712113 |
| Browning Manufacturing | 0315 |
| Bush Hog | S3855 |
| Cub Cadet | 01002700 |
| Doall Mfg Co | 106016 |
| Eberbach | 1330 |
| General Power | 604234 |
| John Deere | LG38330, TY4358, 145871, 1733324SM, GX22819, M118011, M41314, M97340, PT13490 |
| Massey Ferguson | 1025796M1 |
| Homelite | JA325910 |
| Jacobsen | 336055, 325910, 501294, 83330 |
| Lawn Boy | 613368, 921043 |
| MTD Products | 754-04003A, 954-04003A |
| Noma | 579932 |
| Ransomes | 58ZA26 |
| Rockwell International | 35033 |
| Rotary Lifts | 12-5016, 12-7438, 123716 |
| Sears | 0540300, 579932, 83663 |
| Simplicity | 1676461, 1720234, 172929, 179929 |
| Snapper | 10467, 29604 |
| Stens | 238-033, 265-354, 265-437, 265-502, 265-525, 266-243, 265-149 |
| Thermoid | 3H330 |
| Toro | 115-4669, 2048940, 258340, 70074, 718500, 92-1043, 929785 |
| Husqvarna | 601001437 |
| Magna | 511193 |
| Goodyear | 3L330, 73330, FO33, 83330 |
| NAPA Belts/Hose | 3L330, 3L330W |
| Durkee-Atwood | 38-330, XDV38-330 |
| Gilmer | 2330 |
| Gilson | 211650 |
| Grainger | 3L330 |
| MBL Three Stars | 3LK330 |
| Monitor | G134 |
| OMC Lincoln | 611803 |
| Oregon | 75-633, 15-014, 75-333, 75-727, 75-764, 15-211, 15-193 |
| Penneys | 248940 |
| Power Lawnmower Part | 109-023 |
| Reliance Electric | 108168 |
| Roper | 3754H, 51193 |
| Sensation | BT9 |
| Sund | T705 |
| Superior Sewing | 3L33 |
| Universal Sewing | 13673 |
| <Unknown> | 10070, 106553, 1109575, 11116, 19180, 1928025, 21705041, 3353, 3V335, 4631333, 4928025, 600119, C4A123, KK5705475AR17, KR20FC033, P83478, S36338, 6411, B405M206 |
| L Series | 3L330 |
| Metric | 9R840, 9RL840 |
