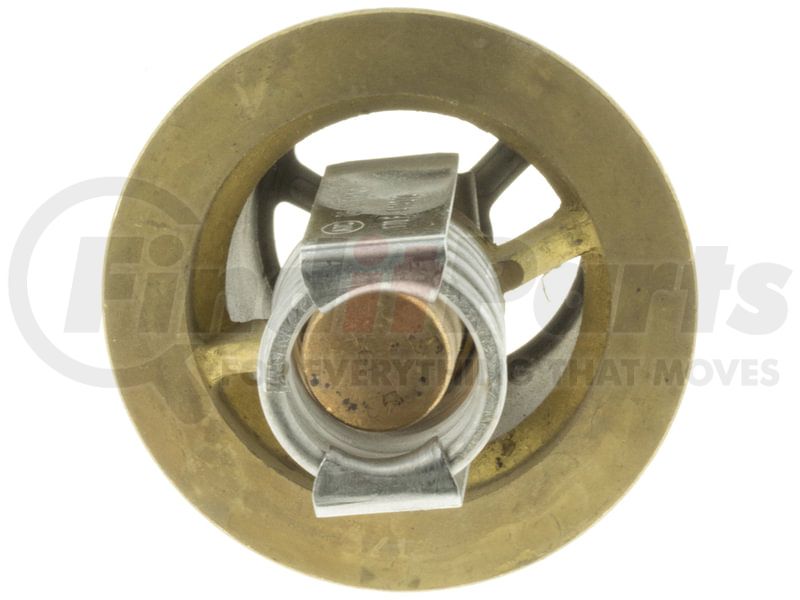

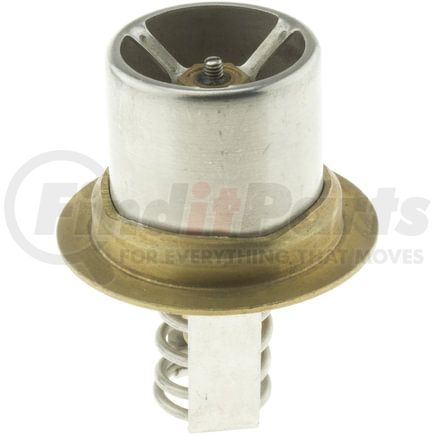

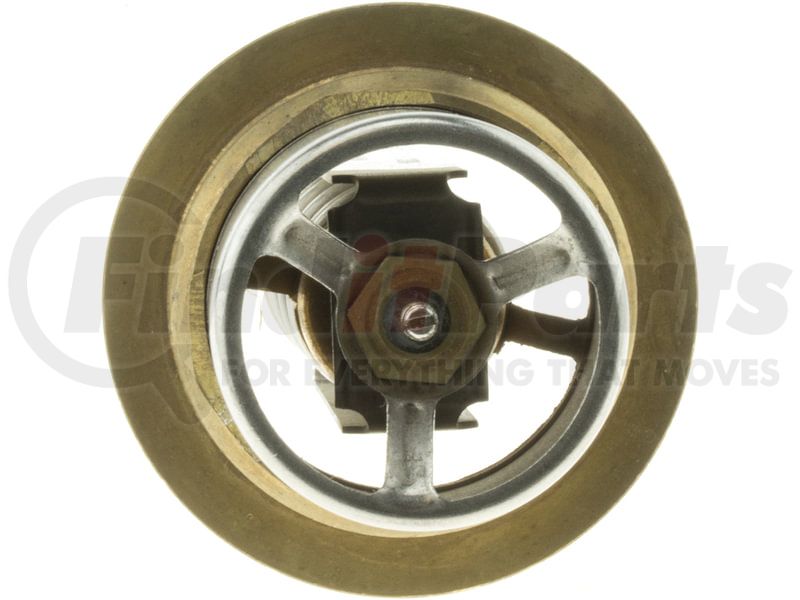

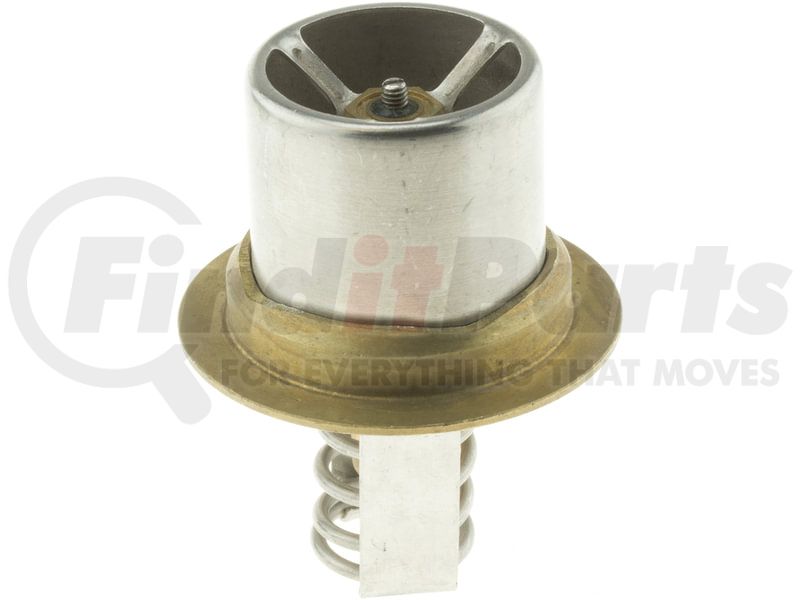

(888) 312-8812 Login SignupGATES 33397 Green Stripe Heavy-Duty Engine Coolant Thermostat
Tap to view 2 more
$10999
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
GATES 33397 Part Description
Manufacturer
Product Description
Green Stripe Heavy-Duty Engine Coolant Thermostat
Application Summary
1985-1978 GMC, Brigadier, Detroit Diesel 6V-53 Diesel, Thermostat
Features & Benefits
- Heavy-gauge brass and stainless steel construction for corrosion resistance
- Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
- Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
- Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts
GATES 33397 Specifications
Product Attributes
| Type | Heavy-Duty Thermostat |
| Start to Open Temperature | 170 FA |
| Design | Top By-Pass |
| Material | Stainless Steel, Brass, Copper |
| Height | 3.02 IN |
| Sealing Flange Outside Diameter | 2.45 IN |
| Flange Thickness | .11 in |
| Valve Outside Diameter | 1.6 IN |
| Flange Height | 1.69 IN |
| Height Between Flanges | 1.33 IN |
| Jiggle Pin Weep Hole | No |
| Jiggle Pin Check Valve Quantity | 0 |
| Gasket Quantity | 0 |
| Seal Quantity | 0 |
| Installation Tool Included | No |
| Start to Open Temperature | 77 CE |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| UPC | 00072053024654 |
| VMRS Code | 042006000 |
| UNSPSC | 41112209 |
GATES 33397 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | RT-187 |
| Dayco | 83714 |
| Motorad | 8400, 840070, 8410 |
| Robertshaw | 445-170 |
| Allis Chalmers | 4314561 |
| Cummins | 119938, 52643 |
| Delco Harrison | 132-32 |
| Dole | DV-247-C |
| Fleetrite | ZAM-2757 |
| General Motors | 12302886, 5124872, 5143210, 6410226, 8921348 |
| Leroi | R026001 |
| Waltham | W358-170 |
| Detroit Diesel | 5124872, 5143210, 8921348 |
| Edelmann | 2062-170 |
| NAPA Belts/Hose | 33397 |
| Ideal Tridon | 31797 |
| NAPA | 358-170 |
| Scoville | VD10101, VD10103, VD10110, VD10110-B |
| Standard Thomson | 358-170 |
| <Unknown> | 486483 |
GATES 33397 Fits Vehicles
- Peterbilt 200 (1972-1974)
- GMC Brigadier (1981-1985)
GATES 33397 Cross References
We have 1 alternatives for the 33397 by GATES:
