(888) 312-8812 Login SignupGATES 22763 Premium Molded Coolant Hose
$3499
Limited availability at this price!
In Stock
Get it by Monday, Dec 15
GATES 22763 Part Description
Manufacturer
Product Description

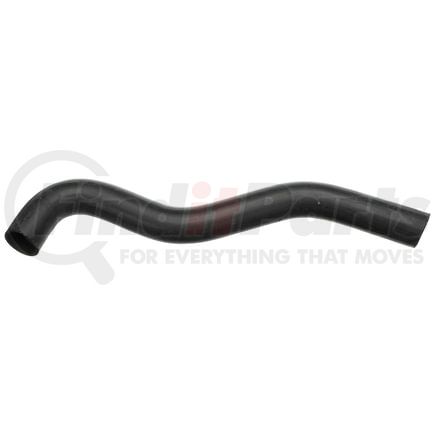

Premium Molded Coolant Hose
Application Summary
2007-03 Chevrolet, C4500, GM V-8 6.6 L Diesel, Upper - Eng. To Rad.
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22763 Specifications
Product Attributes
| Centerline Length | 23 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.75 in |
| End 2 Inside Diameter | 1.75 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 584 MM |
| End 1 Inside Diameter | 44 MM |
| End 2 Inside Diameter | 44 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053794496 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22763 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 26432X |
| Dayco | 72155 |
| Carquest | 22763 |
| General Motors | 15030593, 15096350, 15797900 |
| Goodyear | 66724 |
| NAPA Belts/Hose | 9396 |
| Duralast | F10107 |
GATES 22763 Fits Vehicles
- GMC C5500 Topkick (2003-2007)
- Chevrolet C5500 Kodiak (2003-2007)
- GMC C4500 Topkick (2003-2007)
- Chevrolet C4500 Kodiak (2003-2007)
GATES 22763 Cross References
We have 1 alternatives for the 22763 by GATES:
