(888) 312-8812 Login SignupGATES 22733 Premium Molded Coolant Hose
$3799
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Dec 24
GATES 22733 Part Description
Manufacturer
Product Description

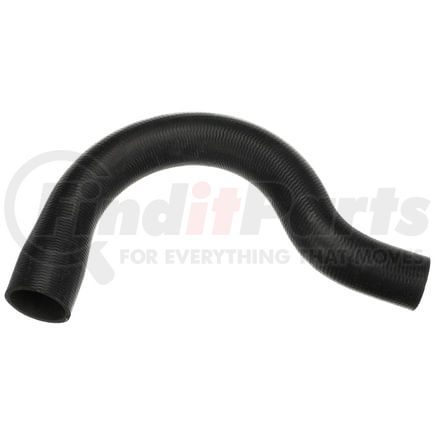

Premium Molded Coolant Hose
Application Summary
2004-00 Isuzu, FRR, Isuzu 6HK1-TC Diesel, Upper - Eng. To Rad.
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22733 Specifications
Product Attributes
| Centerline Length | 19.4 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.523 in |
| End 2 Inside Diameter | 1.937 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 493 MM |
| End 1 Inside Diameter | 39 MM |
| End 2 Inside Diameter | 49 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053690286 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22733 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 22459M |
| Carquest | 22733 |
| General Motors | 15987294 |
| Isuzu | 15987294 |
| Goodyear | 66808 |
| NAPA Belts/Hose | 9366 |
GATES 22733 Fits Vehicles
- GMC T7500 (1999-2002)
- Chevrolet T7500 (1999-2002)
- Chevrolet W6500 Tiltmaster (1995-1996)
- GMC T6500 (1999-2002)
- Chevrolet T6500 (1999-2002)
- Chevrolet W7500 Tiltmaster (1995-1996)
- GMC W6500 Forward (1995-1996)
- GMC W7500 Forward (1995-1996)
- GMC W5500 Forward (1995-1998, 2000-2004)
- Chevrolet W5500 Tiltmaster (1995-1998, 2000-2004)
- Isuzu FTR (1996-1998, 2000-2003)
- Isuzu FVR (1996-1998, 2000-2003)
- Isuzu FSR (1996-2002)
- Isuzu FRR (1996-1998, 2000-2004)
GATES 22733 Cross References
We have 1 alternatives for the 22733 by GATES:
