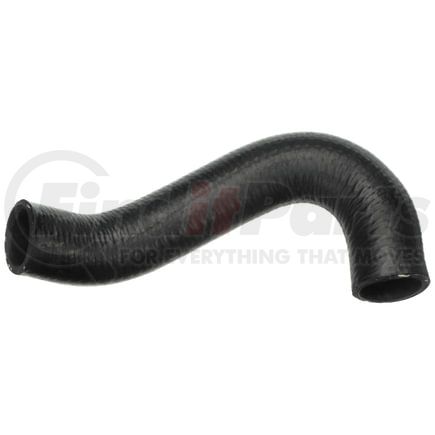

(888) 312-8812 Login SignupGATES 21531 Premium Molded Coolant Hose
$1699
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
GATES 21531 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
2018-12 Chevrolet, Aveo, 4-Cyl. 1.6 L (Non-US), Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 21531 Specifications
Product Attributes
| Centerline Length | 10.7 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.25 in |
| End 2 Inside Diameter | 1.25 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 272 MM |
| End 1 Inside Diameter | 32 MM |
| End 2 Inside Diameter | 32 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00072053058802 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 21531 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 142-6064 |
| Canadian Tire | 14-2127-6 |
| Motorcraft | KM-2199 |
| ACDelco | 20189S |
| Carquest | 21531 |
| Atlas (Canada) | MH-4531 |
| Daewoo | 96182269 |
| General Motors | 96807000, 96536532 |
| Volkswagen | 191121051F |
| International Harvester (IHC) | 1613852C1 |
| Lazorlite | L34-5571 |
| Vera | 54-02399, 54-04765, 54-06131 |
| Goodyear | 559, 61646, 62918 |
| NAPA Belts/Hose | 8246 |
| Rapro | R38106 |
| Continental Belt | 61646 |
| Duralast | F10083 |
GATES 21531 Fits Vehicles
- Audi A3 (1998-2000)
- Pontiac Wave (2005-2008)
- Pontiac G3 (2007-2008)
- Suzuki Swift+ (2004-2008)
- Chevrolet Aveo (2004-2018)
- Chevrolet Aveo5 (2006-2008)
- Pontiac Wave5 (2005-2007)
- Volkswagen Passat (1991-1993)
- Volkswagen Jetta (1985-1992, 1999-2001)
- Volkswagen Golf (1985-1992, 1999-2004)
- Daewoo Lanos (1999-2002)
GATES 21531 Cross References
We have 1 alternatives for the 21531 by GATES:
