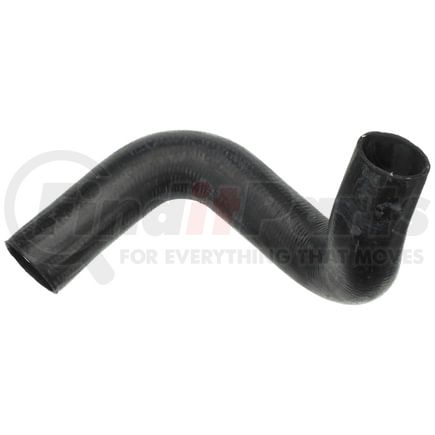

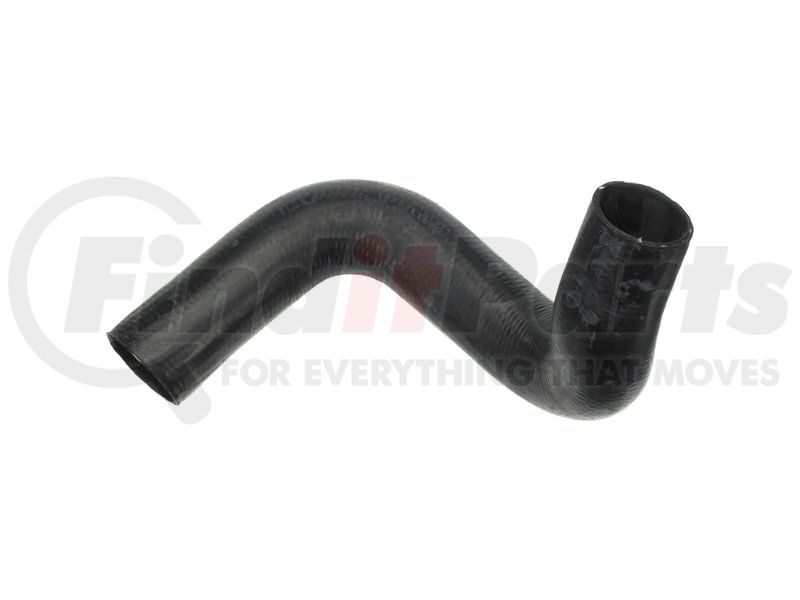

(888) 312-8812 Login SignupGATES 21249 Premium Molded Coolant Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 21249 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
1994-1990 Ford, F600, Ford V-8 7.0 L, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 21249 Specifications
Product Attributes
| Centerline Length | 19.6 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.94 in |
| End 2 Inside Diameter | 2 in |
| Contains Spring | Yes |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 498 MM |
| End 1 Inside Diameter | 49 MM |
| End 2 Inside Diameter | 51 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00072053056327 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 21249 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM-1030, KM-1854 |
| ACDelco | 22142M |
| Dayco | 71111 |
| Carquest | 21249 |
| Ford | D9HT 8286 AJA, D9HT 8286 AJB, D9HT 8286 AJC, D9HZ 8286 G, E0HT 8286 AHA, F0HZ 8286 X |
| Goodyear | 61220 |
| NAPA Belts/Hose | 7960 |
| Durkee-Atwood | 41220 |
| Continental Belt | 61220 |
GATES 21249 Fits Vehicles
- Ford FT800 (1990)
- Ford F-700 (1990-1991)
- Ford LN800 (1980-1984)
- Ford L800 (1980-1985)
- Ford F-800 (1990-1991, 1998)
- Ford F-600 (1990-1994)
- Ford F-700 LPO (1990)
- Ford LT800 (1981-1984)
- Ford LNT800 (1981-1984)
- Ford F-600 LPO (1990-1994)
GATES 21249 Cross References
We have 1 alternatives for the 21249 by GATES:
