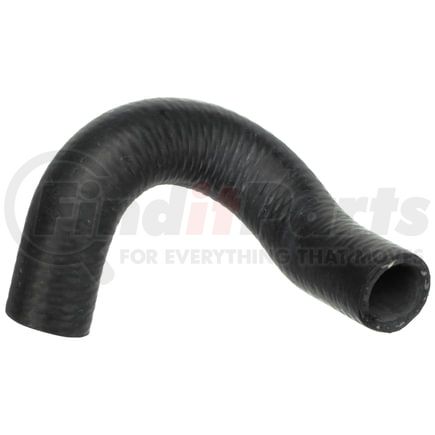

(888) 312-8812 Login SignupGATES 20777 Premium Molded Coolant Hose
$2149
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GATES 20777 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
1978-1973 Chevrolet, C60, GM V-8 350, By Pass - Right Side
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 20777 Specifications
Product Attributes
| Centerline Length | 9.6 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1 in |
| End 2 Inside Diameter | 1 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 244 MM |
| End 1 Inside Diameter | 25 MM |
| End 2 Inside Diameter | 25 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053052961 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 20777 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 142-2369 |
| Mopar | BH-1574 |
| Motorcraft | KM-666, KM-952 |
| Ultra | 30 36011 |
| Uniroyal | MC83 |
| ACDelco | 20067S |
| Dayco | 70824, 824, A70800, D70800, 70800, 71022 |
| BF Goodrich | MH325 |
| Carquest | 20777 |
| Atlas (Canada) | MH-790 |
| Datsun/Nissan | 21501H1000 |
| Epton | MH325 |
| General Motors | 342797, 460768 |
| Lazorlite | L34-1550 |
| Ultralast | C0777 |
| Vera | 54-01327 |
| Worldparts | W50-328 |
| Goodyear | 60790, 63006 |
| NAPA Belts/Hose | 7540 |
| Durkee-Atwood | BP931, MR931, 43006 |
| Continental Belt | 60790 |
| Duralast | F10979 |
GATES 20777 Fits Vehicles
- GMC B6000 (1980-1991)
- Chevrolet B60 (1980-1987)
- GMC C5000 (1979-1990)
- GMC C6000 (1979-1990)
- Chevrolet C60 (1973-1989)
- Chevrolet C50 (1973-1990)
- GMC P6000 (1984-1990)
- Chevrolet P60 (1983-1990)
- Nissan 1200 (1971-1973)
GATES 20777 Cross References
We have 1 alternatives for the 20777 by GATES:
GATES 20777 Customer Reviews
No reviews yet
Be the first to review this product!
