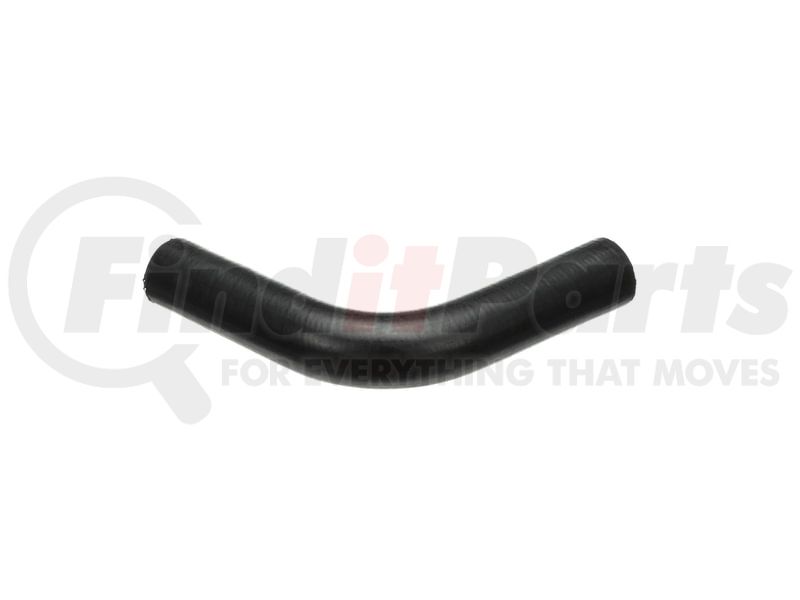

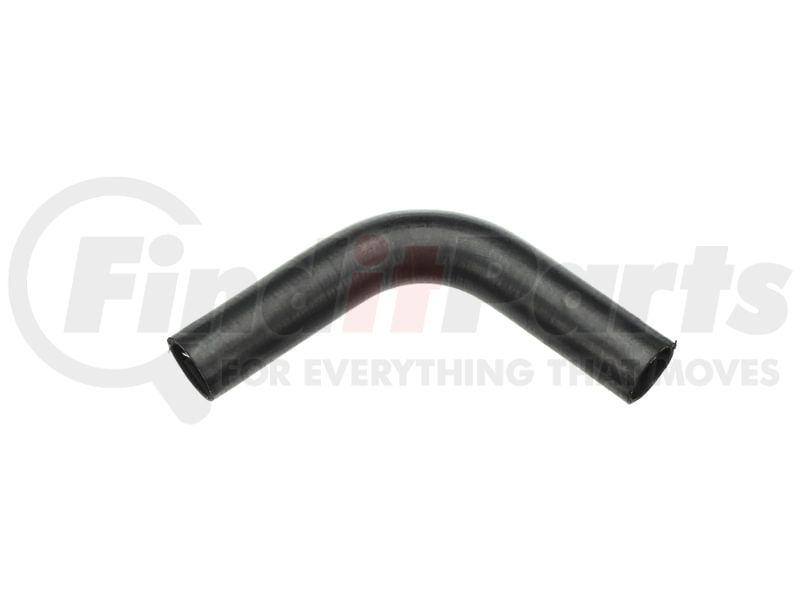

(888) 312-8812 Login SignupGATES 20611 CURVED RAD HOSE
$1899
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
GATES 20611 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
1970-1968 Ford, F Series Pickup, V-8 360, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 20611 Specifications
Product Attributes
| Centerline Length | 16.9 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 2 in |
| End 2 Inside Diameter | 2 in |
| Contains Spring | Yes |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 429 MM |
| End 1 Inside Diameter | 51 MM |
| End 2 Inside Diameter | 51 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053052060 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 20611 Part Interchanges
| Brand | Part Number |
|---|---|
| Canadian Tire | 14-1751-4 |
| Charter | C0611 |
| Mopar | BH-1010, BH-777, BH-781 |
| Motorcraft | KM-122, KM-608-A, KM-91, KM-215-A, KM-226, KM-227, KM-281, KM-289, KM-315, KM-533, KM-608, KM-834 |
| Bravo | C0611 |
| Uniroyal | MC60 |
| White | 027010989, 027010898, 027103041Y, 104740A, 104741A, 10A24085, 157434A, 158664A, 303073270, 487F2 |
| ACDelco | 22044M |
| Dayco | C70691, 397, 70397, 70691, C70397, 212, 70212, 70259, B70212 |
| BF Goodrich | MH351 |
| Ingersoll/Rand | 35598432 |
| CARQUEST | 20611 |
| Allis Chalmers | 1012619 |
| Atlas (Canada) | MH-828 |
| Case Tractor | D35111 |
| Caterpillar | 0302268, 302268, 5S4578 |
| Chrysler | 1926904, 1926933, 2515442, 2515449, 2825781, 3732832 |
| Clark Equipment | 1317577, 1316453, 1316454, 2307942, 2501643, 516865, 941441 |
| Clarke Div | 83302349 |
| Conoco | CH129 |
| Epton | MH351 |
| General Motors | 2490347, 2490353, 1664984 |
| MasterPro | 20611, C0611 |
| Ford | C7TA 8286 F, C7TA 8286 K, C7TA 8286 Z, C7TZ 8286 C, C7TZ 8286 F, C9TA 8286 L, C9TZ 8286 A, D0HA 8286 AK, D0HA 8A319 AF, D1TA 8286 TA, D3TZ 8286 D, D5HZ 8286 A, D7TA 8B273 FA, C4TH 8286 H, C7TA 8286 AD, C7TZ 8286 L, C8HA 8286 B, C8HA 8A319 B, C8HZ 8286 B, C8TA 8286 K, C8TZ 8286 A, C9TA 8286 M, C9TZ 8286 B, C9TZ 8486 B, D0HA 8286 AH, D0HA 8286 AJ, D0HZ 8286 G, D0HZ 8286 H, D0HZ 8286 J, D0PJ 8286 B, D0PZ 8286 B, D0PZ 8286 V, D2AH 8286 YA, D2HA 8286 VA, D2HA 8286 YA, D2PZ 8286 G, D2TA 8286 AJA, D3TZ 8286 A, D4TA 8286 CB, D5HA 8286 DA, D6HZ 8286 C, LA 8286 A, LA 8286 B, LA 88277 A |
| Isuzu | 21431215 |
| International Harvester (IHC) | 266965C1, 266997C1, 266997C11, 271015C1, 271015C11, 292163C11, 306916R1, 314097C1, 377754R1, 379262C1, 396354R1, 864770C1, 867186C1 |
| John Deere | L31795, R29905R, T13490T |
| Massey Ferguson | 1679607M1, 509843M1, 512158M1, 522078M1 |
| Hyster | 129632 |
| Reo Trucks | 935F253 |
| Towmotor | 392069 |
| Studebaker | 524781, 524829 |
| Roadmax | C0611 |
| Sunoco | MC84 |
| Texaco | RH37 |
| Trugrip | 2054 |
| Ultralast | C0611 |
| Unocal 76 | 577 |
| Freightliner Trucks | 0516062031, 0516062033, 0516062039 |
| Blue Bird | 1809615 |
| Goodyear | 66548, 531, 60408, 60495 |
| NAPA Belts/Hose | 7372 |
| Autopar | RH249 |
| Durkee-Atwood | MR593, MR672, MR746 |
| Hartschfeger | 44Q785 |
| Pro-1 | P20611 |
| Volvo White | 1544511 |
| <Unknown> | 104701A, 104742A, 1577434A, 539682, 551426, D54524 |
| Continental Belt | 66548 |
| Duralast | C70397 |
GATES 20611 Fits Vehicles
- Freightliner Sport Chassis (2011)
- International M700 (1966-1967)
- International M800 Navy (1969)
- Freightliner FLD120 (2006)
- Freightliner M2 (2011)
- Freightliner FLD120SD (2006)
- International MA1200 (1967-1968, 1970-1971)
- International M800 Post Office (1969-1970)
- International M800 (1966-1971)
- International M1400 (1966-1967, 1969)
- Kenworth T300 (1999, 2004)
- Freightliner FC80 (2005)
- Freightliner MT55 (2004-2007)
- Freightliner FL80 (1997-2005)
- Freightliner FL60 (1997-2004)
- Freightliner FL70 (1997-2004)
- Freightliner FL50 (1997-2004)
- Freightliner MT45 (2002-2007)
- Freightliner M2 106 (2011)
- International M1200 (1966-1971)
- International M1100 (1966-1971)
- Studebaker Commander (1950)
- Mitsubishi Fuso FH (2003-2004)
- Sterling Truck Acterra (2005)
- Sterling Truck Acterra 6500 (2005)
- Ford F-750 (2000-2003, 2005-2006)
- Ford F-650 (2000-2003, 2005-2006)
- Dodge Ram 2500 (2003)
- Mitsubishi Fuso FE-SP (2001-2002)
- Lincoln Cosmopolitan (1952-1954)
- Lincoln Capri (1952-1954)
- Ford M-450 (1974)
- Ford M-400 (1973)
- Sterling Truck Acterra 7500 (2005)
- Sterling Truck Acterra 5500 (2005)
- Ford F-150 (1975-1979)
- Ford F-500 (1975-1977)
- Ford F-350 (1965-1970, 1973-1979)
- Ford F-250 (1965-1970, 1973-1979)
- Ford F-100 (1965-1970, 1973-1974, 1979)
- Dodge Ram 3500 (2003)
