(888) 312-8812 Login SignupGATES 20605 Premium Molded Coolant Hose
$1199
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
GATES 20605 Part Description
Manufacturer
Product Description

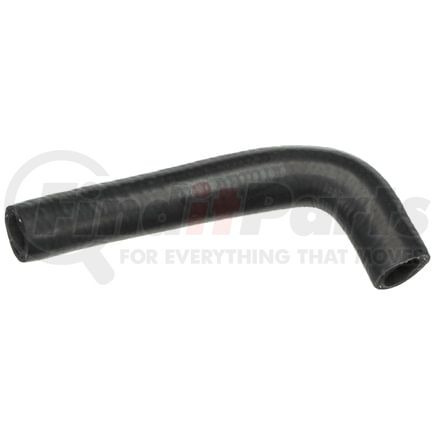

Premium Molded Coolant Hose
Application Summary
1996-1994 Toyota, Camry, 4-Cyl. 2.2 L, By Pass
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 20605 Specifications
Product Attributes
| Centerline Length | 6.5 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | .61 in |
| End 2 Inside Diameter | .61 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 165 MM |
| End 1 Inside Diameter | 15 MM |
| End 2 Inside Diameter | 15 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | S |
| UPC | 00072053052008 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 20605 Cross References
| Brand | Part Number |
|---|---|
| 42610605 | |
| ACDelco | 14210S |
| American Motors Corp (AMC) | 5361956 |
| Atlas | 642206 |
| Atlas (Canada) | BP-681 |
| Autopar | RH161, RH234 |
| BF Goodrich | MH237 |
| CONTINENTAL AG | 63681 |
| Canadian Tire | 14-1745-0 |
| Carquest | 20605 |
| Caterpillar | 1N3388 |
| Conoco | MH4 |
| Continental Belt | 63681 |
| Dayco | 70620, A70620, 532, 70532 |
| Duralast | A70620 |
| Durkee-Atwood | BP822, MR822 |
| Epton | MH237 |
| Firestone | 51316789 |
| GOODYEAR BELTS | 10-105930 |
| General Motors | 1239056, 1241055, 1374169, 1385979, 1394303 |
| Goodyear | 3007, 63681 |
| Mighty | 3007 |
| Montgomery Ward | 1040, 361040 |
| Mopar | BH-1084 |
| Motorcraft | KM-632 |
| NAPA Belts/Hose | 7398, 20605 |
| Petro-Canada | 740 53, 740 54 |
| Plumley | 284078 |
| Pro-1 | P20605 |
| Sears | 1040, 23112, 67965 |
| Service King | 2007, 2009 |
| Sunoco | BP6 |
| Texaco | CB5 |
| Thermoid | 6450-1004 |
| Towmotor | 377313 |
| Toyota | 1626174010 |
| Ultralast | BP0605, C0605 |
| Uniroyal | BP-4 |
| Unocal 76 | 514 |
| Western Auto | 77-8380-6, 77-8469-7, T8380 |
| White | 027004155, 127004156 |
GATES 20605 Fits Vehicles
- Workhorse Custom Chassis P42 (2003-2004)
- Buick Sportwagon (1968)
- Workhorse P30 (2003-2004)
- Buick Century (1973-1974)
- Toyota Tercel (1988)
- Buick Skylark (1967-1968, 1971)
- Buick GS 400 (1968-1969)
- Buick Wildcat (1967-1970)
- Buick Regal (1973-1974)
- Buick GS 455 (1971-1972)
- Buick Gran Sport (1967)
- Buick Centurion (1971-1973)
- Toyota RAV4 (1996-1997)
- Toyota Celica (1987-1989)
- Toyota Camry (1994-1996)
- Buick Riviera (1967-1976)
- Buick Estate Wagon (1970-1976)
- Buick LeSabre (1970-1976)
- Buick Electra (1967-1976)
