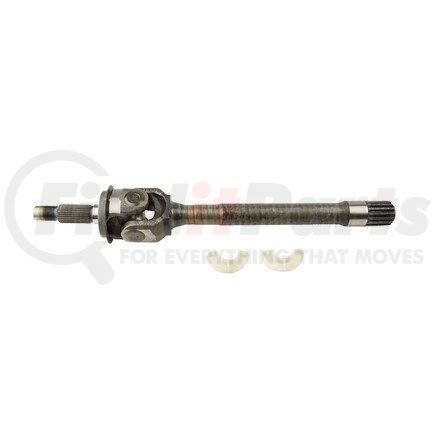

(888) 312-8812 Login SignupDANA 75588-1X Drive Axle Shaft Assembly - Steel, 21.9 in. Length, 15 Inboard/27 Outboard Spline
Tap to view 1 more
$80549
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 20
DANA 75588-1X Part Description
Manufacturer
Features & Benefits
- Genuine OE quality. Tested and proven.
- Ultrasonically tested for internal cracks that magnetic testing can miss.
- Engineered for consistent quality and durability
- Built from high grade steel that stands up to any grade on the market.
- Precision manufacturing processes
- Engineered for consistent quality and durability.
- Heat-treated for optimal hardness and durability
| Axle Model: | DANA 30 |
| Material: | Steel |
| Axle Cover Bolt Hole Qty: | 10 |
| Axle Type: | Complete Assembly |
| Inner Shaft Length: | 15.800 in. |
| Spline Count: | 15 |
| Inner Shaft Spline: | 15 |
| Outer Stub Length (IN): | 6.110 |
| Outer Stub Spline Count: | 27 |
| Includes Universal Joint: | Y |
| Universal Joint Series: | 1310 |
| Axle Shaft Included: | Y |
| Full-Floating Or Semi-Floating: | Semi-Floating |
| Inner Axle Included: | Y |
| Outer Axle Included: | Y |
| Quantity: | 1 |
| Seal Included: | Y |
| U-Joint Included: | Y |
| Wheel Bearing Included: | Y |
DANA 75588-1X Specifications
Product Attributes
| Universal Joint Series | 1310 |
| Axle Model | DANA 30 |
| Material | Steel |
| ABS/Non-ABS | Non-ABS |
| Length (In) | 21.910 IN |
| Spline Count | 15 Inboard / 27 Outboard |
| Axle Cover Bolt Hole Qty | 10 |
| Includes Tone | N |
| Cover Bolt Quantity | 10 |
| Axle Type | Complete Assembly |
| Includes Universal Joint | Y |
| Inner Shaft Length (In) | 15.800 IN |
| Inner Shaft Spline | 15 |
| Outer Stub Length (In) | 6.110 IN |
| Outer Stub Spline Count | 27 |
| Overall Assembled Length (In) | 21.910 IN |
| Quantity | 1 |
| Length (mm) | 556.514 mm |
| ABS Sensor Ring Installed | N |
| Axle Shaft Included | Y |
| Bearing Included | N |
| Full-Floating Or Semi-Floating | Semi-Floating |
| Inner Axle Included | Y |
| Outer Axle Included | Y |
| Retainer Ring Included | N |
| Seal Included | Y |
| Seal Kit Included | N |
| U-Joint Included | Y |
| Wheel Bearing Included | Y |
| Wheel Bolt Prep Kit Included | N |
| Wheel Nuts Included | N |
| Wheel Studs Included | N |
| ABS Tone Ring Included | No |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708508500 |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00023913134631 |
DANA 75588-1X Cross References
DANA 75588-1X Fits Vehicles
- Jeep TJ (1997-1999, 2001, 2003)
- Jeep Wrangler (1987-1995, 1997-2006)
- Jeep Wagoneer (1985-1990)
- Jeep Grand Wagoneer (1984-1991, 1993)
- Jeep Grand Cherokee (1994-1998)
- Jeep Comanche (1986-1992)
- Jeep Cherokee (1984-2001)
DANA 75588-1X Customer Reviews
No reviews yet
Be the first to review this product!
DANA 75588-1X Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
DANA 75588-1X Questions & Answers
No questions yet
Be the first to ask a question about this product!
