Dana 2-3-04410X - Drive Shaft Transmission Slip Yoke
$52999
375 day lead time
. Learn more

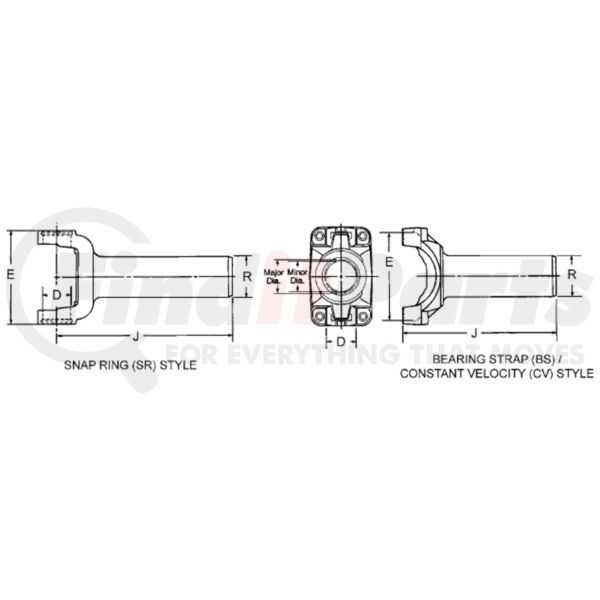

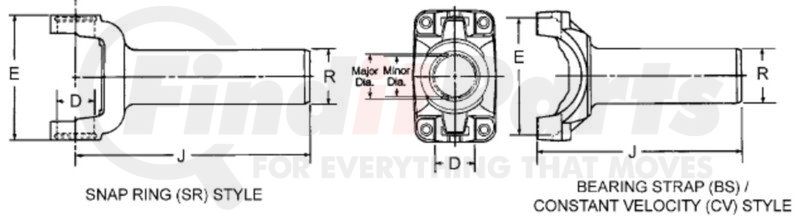

DANA part description
| Series: | 1330 |
| Outside Yoke Dimension (E): | 3.875 in. |
| Bearing Cap Diameter (D): | 1.062 in. |
| To End of Spline (J): | 8.465 in. |
| Hub Diameter (R): | 1.771 in. |
| Spline Outside Diameter (STD): | 1.406 in. |
| No. of Splines: | 32/34 I |
| Involute: | Y |
| Style: | SR |
| Material: | Steel |
Product Attributes
| Series | 1330 |
| Material | Steel |
| Style | SR |
| No. Of Splines | 32/34 I |
| Bearing Cap Diameter (D) In. | 1.062 IN |
| Outside Yoke Dimension (E) In. | 3.875 IN |
| Spline O.D. (STD) | 1.406 IN |
| To End Of Spline (J) In. | 8.465 IN |
| Involute | Y |
| Hub Diameter (R) In. | 1.771 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913276065 |
| VMRS Code | 024002038 |
Part Interchanges
