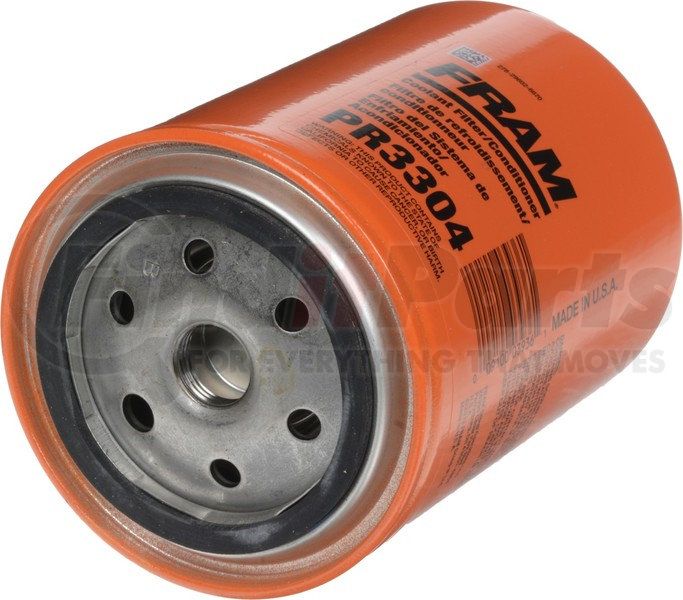

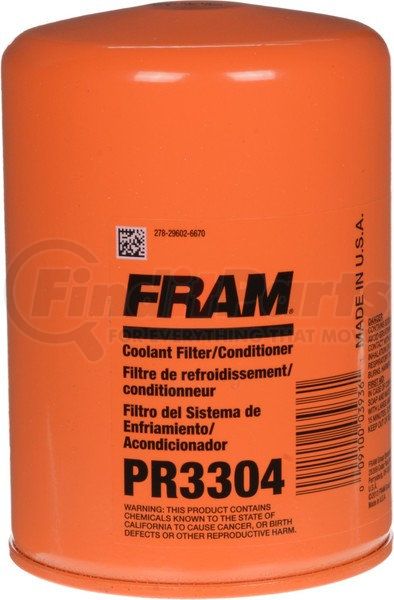

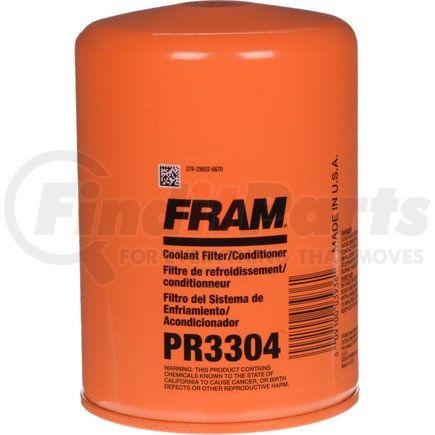

(888) 312-8812 Login SignupFRAM PR3304 Spin-on Coolant Filter
Tap to view 2 more
$37.35
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM PR3304 Part Description
FRAM PR3304 Specifications
Product Attributes
| Outside Diameter | 3.660 IN |
| Chemical Additive | DCA2 4-Units |
| Fitting Type | Spin-On Canister |
| Gasket Inside Diameter | 2.420 IN |
| Gasket or Seals Included | Yes |
| Gasket Outside Diameter | 2.810 IN |
| Gasket Seal Material | Nitrile |
| Gasket Thickness | 0.203 IN |
| Gasket Type | Base |
| Grade Type | Regular |
| Height | 5.210 in |
| Housing Color | White |
| Inlet Type | Threaded |
| Inside Thread Diameter | 11/16-16 IN |
| Thread Size | Standard |
| Inner Thread Diameter | 11/16-16 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421290065 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100401663 |
| UNSPSC | 40161807 |
FRAM PR3304 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | WF100, WF102, WF104, WF111 |
| ACDelco | WF100, WF100F, WF102, WF102F, WF104, WF111 |
| ALLIANCE | ABP/N10G-LK54CA, ABP/N10G-LK56CA, ABP/N10G-LK96CA, ABP/N10G-WF2051 |
| ALLIS-CHALMERS | 4029120 |
| Alliance Parts | ABP/N10G-LK54CA, ABP/N10G-LK56CA, ABP/N10G-LK96CA, ABP/N10G-WF2051, ABP/N10G-WF2069, ABP/N10G-WF2106 |
| Allis Chalmers | 4029120, 4393504, 4393504-8, 4393505, 74059979 |
| BALDWIN | BW5137 |
| Baldwin | BK6226, BK6266, BK6271, BK6371, BK6602, BK6619 |
| Big A | 96023, 96040, 96045 |
| Carquest | 89071 |
| Case | 17834, 28031, A151931 |
| Caterpillar | 111-2370, 9N-3367, 9N-3368, 9N-3717 |
| Champ | PW2901 |
| Champion | WF202 |
| Coach Guard | T06-1012 |
| Coopers | AZW002 |
| Crosland | 9342 |
| Cummins | 259453, 299083, 3305371, CW1010, CW1011, CW1012, CW2010, P559012 |
| Detroit Diesel | 23507545 |
| Donaldson | P168068, P552106, P559013, P559014, P559019, P559034, P559063, P559088, P559093, P559217, P559288, P559295, P559301, P559304 |
| FLEETGUARD | WF2053 |
| Fleetguard | AF323, MK12409, MK13104, MK13108, MK13123, MK13151, WF2023, WF2051, WF2055, WF2059, WF2069, WF2087, WF2093, WF2106, WF2151 |
| Fleetrite | MKR-81396, MKR-81398, MKR851C, WFR-82010, WFR-82012, WFR-82013, WFR-82014, WFR-82051 |
| Foden | YO2729203 |
| Ford | 749F-8A469-AAA, D2HA-8A424-AB, D2HZ-8A424-A |
| General Motors | 15524421, 23507545, 6438919, 6438920, 6439692, 6439694, 6439700, 6493692, 681955 |
| Gonher | GP1010Q |
| Guardian | G02-4071 |
| Hastings | FWC2, WC6 |
| International Harvester IHC | 1815591C1, 419572C1, 4238700C1, 427713C1, 427717C1, 462816C1, 462816C2, 690171C1, 993445C1 |
| John Deere | AR87114, AR89381 |
| Kenworth | K251C271, K251C272, K251C341, K251C342, KW2010, KW2051 |
| Komatsu | 600-411-1040 |
| Kralinator | C8 |
| LUBER-FINER | LFW4740, LFW4744, LK103CA, LK110C, LK111C, LK13C, LK14C, LK154D, LK168D, LK182C, LK186I, LK197C, LK204I, LK21C, LK27C, LK2C, LK32I, LK34C, LK3C, LK42C, LK43C, LK45C, LK46C, LK54CA, LK56CA, LK71D, LK83CA, LK87D, LK96CA |
| Leyland | CU3314581 |
| Liebherr | 7361501 |
| Link-Belt | 3A10522 |
| Mack | 25MF214, 25MF214P2 |
| Mann-Filter | WA923/3, WA940/6, WA950 |
| Massey Ferguson | 1055916-M1 |
| Morbark | 29214-178 |
| Motorcraft | FW-2, FW-8 |
| NAPA | 4071, 4071MP, 4206, 4206MP |
| Nissan | 21915-95000 |
| OFSA | OF12010 |
| Penray | NF-3000 |
| Perry | PFC-18 |
| WIX FILTERS | 24071 |
FRAM PR3304 Fits Vehicles
- Kenworth C540 (1988, 1990, 1992-1993)
- Kenworth T660 (2008-2015)
- Kenworth L700 (1981-1987)
- Kenworth K100E (1985-2002)
- Kenworth C550 (1985-1994)
- Kenworth C500 (1981-2012)
- Kenworth K100 (1981-1985)
- Kenworth T450 (1993-1996)
- Kenworth T400 (1989-1999)
- Peterbilt 340 (2007)
- Peterbilt 335 (2005-2007)
- Kenworth W900 (1981-2013)
- Kenworth T800 (1987-2017)
- Kenworth T600A (1986-2007)
- Kenworth T2000 (1997-2003, 2005)
- Freightliner Classic (2003-2007)
- Freightliner Argosy (1999-2011, 2015)
- Freightliner Century Class (1996-2009)
- International 4600 (1994-1995)
- Kenworth T300 (2000-2008)
- Kenworth K300 (1999)
- Suzuki Aerio (2002)
- Ford LS8000 (1987-1989)
- Ford LTS8000 (1981-1989)
- Ford LNT8000 (1981-1989)
- Ford L9511 (1998)
- Ford L9501 (1997)
- Ford LNT9000 (1984-1997)
- Ford LTL9000 (1990-1995)
- Ford LT9000 (1981-1985, 1988)
- Ford LL9000 (1994-1996)
- Ford LS8000F (1987-1993)
- Ford LT9522 (1997-1998)
- Ford LT9501 (1997-1998)
- Ford LT9513 (1997-1998)
- Ford LT9511 (1998)
- Ford LTS9000 (1981-1985, 1992-1997)
- Ford LTLS9000 (1992-1997)
- Ford LTLA9000 (1992-1997)
- Ford LTA9000 (1990-1997)
- Ford LLA9000 (1992-1996)
- Ford L9513 (1996-1998)
- Ford LS9000 (1990-1997)
- Ford LA9000 (1991-1997)
- Ford L9000 (1981-1997)
- Ford AT9522 (1997-1998)
- Ford AT9513 (1996-1998)
- Ford A9522 (1997)
- Ford A9513 (1996-1998)
- Ford CLT9000 (1981-1991)
- Ford CL9000 (1981-1991)
- Advance Mixer S (1992)
- Advance Mixer Advance Mixer (2003, 2005-2006)
- Ford CF7000 (1986-1993)
- Ford CF8000 (1987)
- Ford C8000 (1988)
- Ford CF6000 (1986-1990)
- GMC C7500 Topkick (1997-1998)
- GMC C6500 Topkick (1997-1998)
- GMC C7000 Topkick (1990-1996)
- GMC C6000 Topkick (1990-1996)
