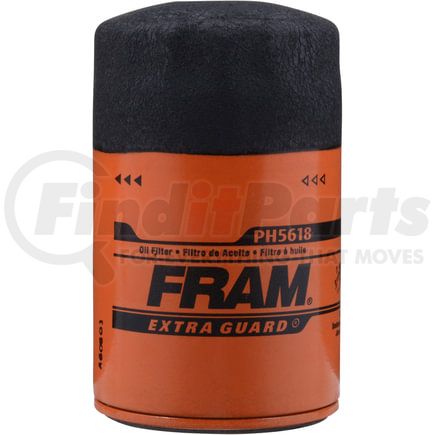

(888) 312-8812 Login SignupFRAM PH5618 Spin-on Oil Filter
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM PH5618 Part Description
Manufacturer
Product Description
FRAM, PH5618, Oil Filter
Application Summary
(Ford, Thunderbird 2002-05) (Jaguar, S-Type 2000-05, Vanden Plas 1998-05, XJ8 1998-05, XJR 1998-05, XK8 1997-05, XKR 2000-05) (Lincoln, LS 2000-04)
Features & Benefits
- Proven protection for up to 10,000 miles
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- SureGrip® technology for easy install and removal
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- Silicone anti-drain back valve helps ensure safe engine start up
Spin-on Oil Filter
fram oil filter, fram oil filters, fram oil filter finder, fram oil, oil filters fram, extra guard oil filter, oil filter, oil filter lookup, oil filters, oil filter for, fram spin-on oil filter, fram extra filter
FRAM PH5618 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.734 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.186 IN |
| Housing Color | Orange |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 2.469 IN |
| Gasket Outside Diameter | 2.613 IN |
| Attachment Type | Spin-On |
| Burst Pressure | 230.000 PS |
| Bypass Relief Valve Setting | 9-15 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1-12 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 3.094 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Standard |
| Burst Pressure | 230.000 PS |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| Warranty Special | See Rep |
| UPC | 00009100016386 |
| UNSPSC | 15121501 |
FRAM PH5618 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF2254 |
| ACDelco | PF2254 |
| Auto Extra | 61851228 |
| BALDWIN | B1435 |
| BIG A | 92228 |
| BOSCH | 72209 |
| Bosch | 72209WS, 3978 |
| British Leyland | EAZ-1354 |
| CARQUEST | 85228 |
| CHAMP | LF510, PH2008 |
| Carquest | R85228 |
| Casite Filters | CF510 |
| DENSO | 150-2005 |
| ECOGUARD | X5317 |
| FORD | 96JV-6714-AA |
| FRAM Drive | FD5618 |
| FVP | R1228 |
| Factory Motor Parts | R1228 |
| Ford | XW43-6714-BA, XW4Z-6731-BA |
| GMB | 699-0019 |
| Group 7 | V5317 |
| Hastings | LF510, LF510F |
| Installer Edge | AL5618 |
| Jaguar | EAZ1354 |
| K&N | HP-1014 |
| LEYLAND | EAZ-1354 |
| LUBER-FINER | PH2008 |
| MAHLE | OC 323 |
| MANN-HUMMEL FILTERS | W719/7 |
| Mann-Filter | W719/7 |
| MicroGard | MGL5618, MGL51228, MGL57302 |
| MicroGard Select | MSL57302 |
| Mighty Distributing System | M2008 |
| Mileguard | MO5618 |
| Mobil | L15317 |
| Mobil 1 | M1-213, M1-213A |
| Motorcraft | FL-2008 |
| NAPA | 1228 |
| PUROLATOR | TL15317, PL15317 |
| Parts Master | 61228 |
| Parts Plus | PH2008 |
| Pennzoil | PZ-57, PZ57 |
| Pentius | PLB5618 |
| Performax | PO-57 |
| Pit Stop | PSL50 |
| Premium Guard | PG5317 |
| Pro-Tec | 185 |
| Promotive | PH5317 |
| Pronto | PO-5317 |
| Purolator | L15317 |
| Quaker State | QS5618, L15317 |
| STP | S5618 |
| STP Filters | S5618 |
| Shell - Archived | L15317, SH55 |
| Silverline | 21228 |
| Valvoline | VO-86 |
| WIX FILTERS | WIX FILTERS, 51228 |
| Warner | PH2008 |
| Warner Filters | PH2008 |
| Wix | 51228, 57302 |
FRAM PH5618 Fits Vehicles
- Ford Thunderbird (2002-2005)
- Lincoln LS (2000-2004)
- Jaguar Vanden Plas (1998-2005)
- Jaguar XJ8 (1998-2005)
- Jaguar XKR (2000-2005)
- Jaguar XK8 (1997-2005)
- Jaguar XJR (1998-2005)
- Jaguar S-Type (2000-2005)
