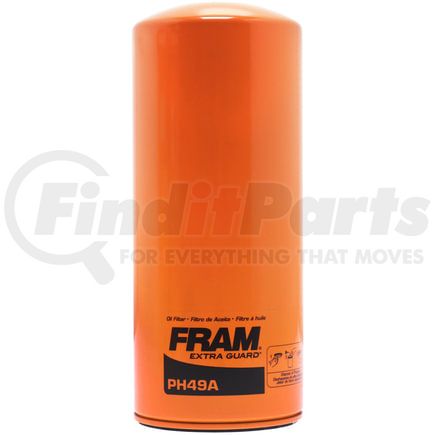

(888) 312-8812 Login SignupFRAM PH49A Replacement for Fram - Oil Filter
Tap to view 4 more
$16.71
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM PH49A Part Description
FRAM PH49A Specifications
Product Attributes
| Height | 10.420 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.250 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 3.590 IN |
| Gasket Outside Diameter | 3.980 IN |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1 1/8-16 IN |
| New Or Remanufactured | New |
| Outside Diameter | 4.260 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
| Inner Thread Diameter | 1 1/8-16 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100420244 |
| UNSPSC | 15121501 |
FRAM PH49A Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF857 |
| ACDelco | PF1267, PF857 |
| AIR REFINER | PL-667 |
| ALLIANCE | ABP/N10G-LF3675, ABP/N10G-LF667, ABP/N10G-P553191 |
| AQUA POWER | 6028 |
| AUTOEDGE | AL49A |
| Alliance Parts | ABP/N10G-LF3675, ABP/N10G-LF667, ABP/N10G-P553191 |
| BALDWIN | B76, B7600 |
| Baldwin | B76-B, BK6203, BK6210, BK6284, BK6287, BK6613, BK6674, BK6701, BK6702, BK6708, BK6712, BK6718, BK6722, BK6829, BT234, BT556-10 |
| Big A | 92791 |
| Carquest | 85791, 89536, 89556 |
| Case | 28036 |
| Caterpillar | 1R-0658, 1R-0739, 1R-1807, 1W-3300, 2P-4004, 2Y-8096, 3I-1283 |
| Champion | HO507 |
| Coopers | AZL083 |
| Crosland | 9309, 9361 |
| Deutz | 1164406 |
| Donaldson | LFP554004, P167404, P553191, P559002, P559004, P559007, P559031, P559069, P559205, P559222, P559252, P559311, P559610 |
| FLEETGUARD | LF667 |
| Fleetguard | HF35197, LF3379, LF3476, LF3477, LF3730, LF9667, MK13048, MK13064, MK13073, MK13075, MK13078, MK13091, MK13104 |
| Fleetrite | LFR-83321, LFR-8667, MKR831M, MKR833M |
| General Motors | 6439392 |
| Gonher | GP51M |
| Hastings | B76, BT234, FP531, HF912, KF24, LF327, LF531, LF554 |
| Installer Edge | AL49A |
| International Harvester IHC | 1527499626 |
| John Deere | GG17031266 |
| Kralinator | L177 |
| LUBER-FINER | LFP2216, LFP3191, LFP5963, LK170M, LK2M, LK2MP, LK4M, LK73M, LK77M |
| Lenz | CP-1032, CP-1032-10, CP-1032-10A, CP-1032-10B |
| Mack | 21939324, 485GB3191, 485GB3191A, 485GB3191B, 485GB3191C, 485GB4348, 5000133555 |
| Mann-Filter | W1102/15, W1102/4, W11102/11, W11102/15, W11102/36, W11102/4 |
| Mopar | L-301 |
| Motorcraft | FL-307, FL-307FP |
| NAPA | 1791, 4536 |
| Nissan | 15274-99626 |
| PAI | FOF4570 |
| PREMIUM GUARD | HG50053 |
| Perry | PL-275 |
| Purolator | K50003, K50004, L50068, L56069, L59068 |
| Renault | 50 00 670 700, 50 10 550 600 |
| Sierra | 18-7880 |
| TCM | 3918204 |
| Volvo | 00466634-3, 3130936, 3134053, 466634, 466634-3, 478736, 478736-2 |
| WGB | S-279-CP |
| WIX FILTERS | WIX FILTERS, 51791 |
| Wix | 24526, 24556, 51791, 51791EC, 51791MP |
FRAM PH49A Fits Vehicles
- Freightliner Argosy (2000)
- Kenworth T450 (1993-1996)
- Peterbilt 335 (2005-2007)
- Peterbilt 340 (2007)
- Freightliner Century Class (2001)
- Mack CH (1989-1991)
- Kenworth T600A (1986-1990, 1992-1993, 1995-1996, 1999)
- Kenworth L700 (1981, 1983-1987)
- Kenworth K100E (1986, 1988-1991, 1993, 1995)
- Kenworth C550 (1985, 1987-1990)
- Kenworth K100 (1981, 1983-1984)
- Kenworth C500 (1981-1990, 1993-1994)
- Kenworth T400 (1989-1999)
- Peterbilt 330 (1995-2005, 2007)
- Freightliner B2 (2005-2008)
- Kenworth T800 (1987-2000)
- Kenworth W900 (1983-1999)
- Freightliner FL60 (1995-2004)
- Freightliner FL80 (1999-2005)
- Freightliner FL70 (1995-2003)
- Freightliner FL50 (1995-2004)
- Kenworth T300 (1996-2007)
- Freightliner FS65 (1997-2008)
- Suzuki Aerio (2002)
- Ford L9501 (1997-1998)
- Ford L8511 (1998)
- GMC C7000 Topkick (1990-1996)
- Ford L9511 (1998)
- Ford LT9501 (1997-1998)
- Ford LT8501 (1997-1998)
- GMC C8500 Topkick (2004-2006, 2008-2009)
- Ford LA9000 (1996-1997)
- Ford AT9513 (1997)
- Sterling Truck L7500 (1999-2010)
- Ford LT8511 (1998)
- Ford LT9513 (1996-1998)
- Ford L9000 (1989-1997)
- Ford L8513 (1997-1998)
- Ford LNT9000 (1989-1997)
- Ford LT9000 (1989-1997)
- Ford LN9000 (1989-1997)
- Ford LT8513 (1997-1998)
- Ford LT9511 (1998)
- Ford LTS9000 (1989-1997)
- Ford LTA9000 (1989-1996)
- Ford LS9000 (1990-1996)
- Sterling Truck L7501 (1999-2001)
- Ford L9513 (1996-1998)
- Ford A9513 (1996-1998)
- Ford L8501 (1997-1998)
- American LaFrance Metropolitan (2000-2004)
- Sterling Truck LT7500 (1999-2007)
- Chevrolet T6500 (1997-2002)
- Ford F-650 (2000-2010)
- Ford F-750 (2000-2010)
- Chevrolet T7500 (1997-2002)
- GMC T6500 (1997-2002)
- GMC T7500 (1997-2002)
- GMC B7 (1993-2002)
- Chevrolet B7 (1993-2002)
- GMC C6000 Topkick (1990-1996)
- Chevrolet C7500 Kodiak (1997-2009)
- Chevrolet C6500 Kodiak (1997-2009)
- GMC C7500 Topkick (1997-2009)
- GMC C6500 Topkick (1997-2009)
