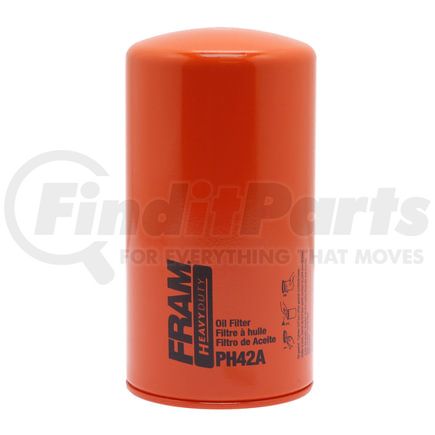

(888) 312-8812 Login SignupFRAM PH42A Spin-on Oil Filter
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM PH42A Part Description
FRAM PH42A Specifications
Product Attributes
| Height | 7.124 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.203 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 2.460 IN |
| Gasket Outside Diameter | 2.810 IN |
| Bypass Relief Valve Setting | 8-12 PS |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1-12 IN |
| New Or Remanufactured | New |
| Outside Diameter | 3.690 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100420299 |
| UNSPSC | 15121501 |
FRAM PH42A Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF2048, PF912D |
| ACDelco | PF2048, PF912D |
| BALDWIN | B7215, BT342, BT365-10, B167 |
| BIG A | 92158, 92275, 92461, 92763 |
| Big A | 92769, 92772 |
| Carquest | 85158, 85275, 85461, 85754, 85774 |
| Case | 1808896C1, 86980031, A58672, A75294, P1350575, V37624 |
| Caterpillar | 103-2977, 5W-6017 |
| Coopers | AZL056 |
| Crosland | 2042, 2062, 304, 9304, 9330 |
| Donaldson | P555616, P558250 |
| Fleetguard | LF3307, LF3382, LF3420, LF3861, LF4054 |
| Fleetrite | LFR-83307, LFR-83443, LFR-8694 |
| Ford | C7NN-F933-A |
| General Motors | 25012645 |
| Gonher | GP54, GP54M |
| Hastings | B7215, HF930, HL42A, LF356, LF415 |
| Hydra-mac | 1309108, 3408-305 |
| International Harvester IHC | 397868R1, 398080R1, 398080R2 |
| Kralinator | L182 |
| LUBER-FINER | LFH4372, LFP54 |
| Mann-Filter | W950, W950/17, W962 |
| Mopar | 34740-00100, L-315 |
| NAPA | 1158, 1275, 1461 |
| Phillips 66 | PER48 |
| Purolator | L38204, L40048, L40106 |
| WIX FILTERS | WIX FILTERS, 51158 |
| Wix | 51053, 51158, 51275, 51461, 51462 |
