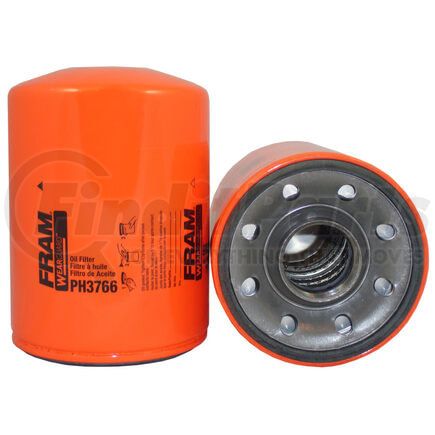

(888) 312-8812 Login SignupFRAM PH3766 Full-Flow Spin-On Lube Oil Filter
MSRP: $34.95
$1999
Save $14.96
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
FRAM PH3766 Part Description
Manufacturer
Product Description
FRAM, PH3766, HD Oil Filter
Features & Benefits
- Cellulose and synthetic media capture 95 percent of dirt particles to protect bearings and cylinder surfaces
- Prevent dry starts with a silicone anti‑drainback valve that retains oil in the filter housing
- Internally lubricated sealing gasket and SureGrip coating provide a secure seal and easy tool‑free removal
- Direct‑fit design simplifies maintenance by replacing factory filters without adaptation, and shipping weight of roughly 1.6 lb makes handling easy
FRAM Engine Oil Filter
The FRAM Engine Oil Filter delivers dependable engine protection by trapping dirt and contaminants. Its cellulose and glass blended media captures up to 95% of particles to protect critical engine components. A silicone anti-drainback valve helps prevent dry starts by keeping oil in the filter when the engine is off. The internally lubricated gasket and SureGrip™ coating allow easy installation and removal without tools. With a thread size of 1 1⁄2-16, height around 5.781 inches, and diameter about 4.296 inches, this FRAM PH3766 full-flow spin-on lube filter fits many heavy-duty engines and is a direct-fit replacement for several OEM filters.
FRAM PH3766 Specifications
Product Attributes
| Height | 5.574 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.250 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 3.555 IN |
| Gasket Outside Diameter | 3.955 IN |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1 1/2-16 IN |
| New Or Remanufactured | New |
| Outside Diameter | 4.296 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
| Inner Thread Diameter | 1 1/2-16 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100381194 |
| UNSPSC | 15121501 |
FRAM PH3766 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF1054 |
| ACDelco | PF1054, PF1054F |
| ALLIANCE | ABP/N10G-LF3344 |
| AMSOIL | ASF41 |
| ATLAS | F-19 |
| AUTOEDGE | AL3766 |
| Alliance Parts | ABP/N10G-LF3344 |
| Auto Extra | 61851742 |
| BALDWIN | B134, BK6838 |
| BIG A | 92742 |
| CANADIAN TIRE | 17-1713-0 |
| Carquest | 85742, R85742 |
| Casite Filters | CF441 |
| Cenex | CO784 |
| Champ | LFP784 |
| Champion | OF421 |
| Coach Guard | T08-1060 |
| Deutsch | D605 |
| Donaldson | LFP550784, P550784 |
| Evergard | E288 |
| FVP | R1742 |
| Firestone | LFP784 |
| Fleetguard | LF3344 |
| Fleetrite | LFR-83344, MKR811010, MKR811409, MKR811410, MKR81599, MKR884IH |
| Ford | E3TZ-6731-A |
| General Motors | 25011759 |
| Grand Prix | LFP784 |
| Grease Monkey | GM30288 |
| Group 7 | V288 |
| Hastings | B134 |
| Havoline | T-37 |
| Installer Edge | AL3766 |
| International Harvester IHC | 1804442C1 |
| Jiffy Lube | HL3766, JL288, LFP784 |
| John Deere | TY15735 |
| K&N | HP-4002 |
| Kralinator | L205, L229 |
| LUBER-FINER | LFP784, LK105I |
| Lee | LF-784, LF-784HP |
| Master Parts | LFP-784 |
| MicroGard | MGL3766 |
| MicroGard Select | MSL51742 |
| Minit-Lube | PH784 |
| Mobil | MO288 |
| Mobil 1 | M1-402 |
| Motorcraft | FL-784, FL-784FP, M1-402A |
| NAPA | 1742 |
| Parts Master | 61742 |
| Pennzoil | PZ-105 |
| Pentius | PLB3766 |
| Performax | PO-105 |
| Phillips 66 | WO1742 |
| Premium Guard | PG288 |
| Professionals Choice - Archived | Q288 |
| Promotive | PH288 |
| Pronto | PO-288 |
| Purolator | L30288 |
| PurolatorONE | PL30288 |
| Quaker State | QS3766 |
| STP | S3766 |
| Service Champ | OF288 |
| Shell - Archived | SH37 |
| Sierra | 18-7871 |
| Silverline | 21742 |
| Unocal 76 | OF1742 |
| Valvoline | VO-46 |
| Volvo | 3130925 |
| WIX FILTERS | WIX FILTERS, 51742 |
| Warner | LFP784 |
| Web | W3766 |
| Wix | 51742 |
FRAM PH3766 Fits Vehicles
- International 4600 (1991-1993)
- International 4600LP (1990-1993)
- Suzuki Aerio (2002)
- Ford F-59 Commercial Stripped Chassis (1988-1994)
- Ford F-150 (1984)
- Ford F59 (1988-1994)
- Ford F-350 (1983-1994)
- Ford F-250 (1983-1994)
- Ford F-Super Duty (1988-1994)
- Ford E-350 Econoline Club Wagon (1983-1994)
- Ford E-350 Econoline (1983-1994)
- Ford E-250 Econoline Club Wagon (1983-1991)
