FRAM PH2842 Part Description
Manufacturer
Product Description

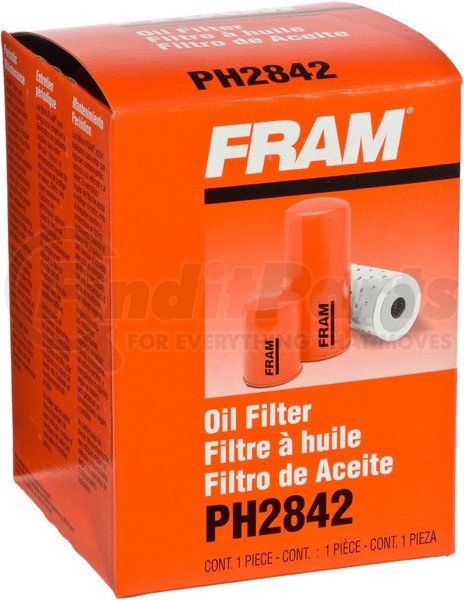

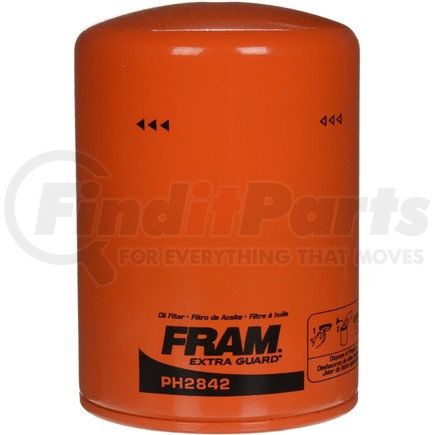

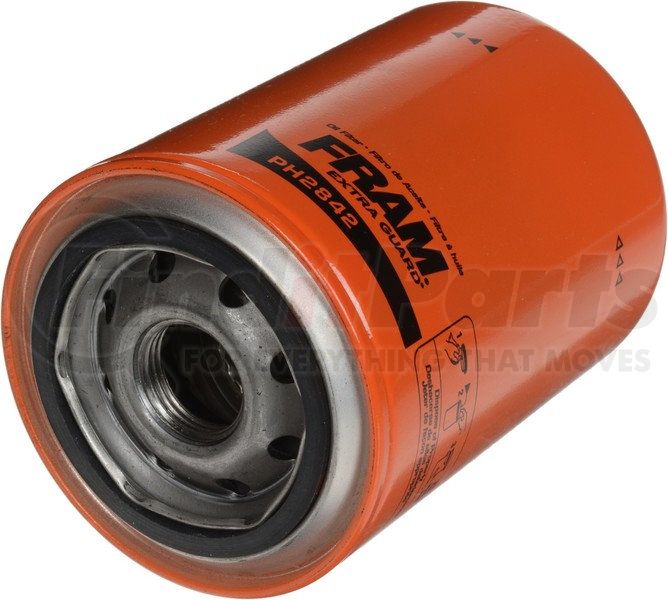

FRAM, PH2842, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
Spin-on Oil Filter
FRAM PH2842 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 5.375 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve Setting | 30 PS |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.203 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 2.469 IN |
| Gasket Outside Diameter | 2.813 IN |
| Attachment Type | Spin-On |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1-12 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 3.688 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Standard |
| Inner Thread Diameter | 1-12 IN |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100380739 |
| UNSPSC | 15121501 |
FRAM PH2842 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF2046, PF2200, PF2209 |
| ACDelco | PF2046, PF2200, PF2209 |
| ALLIANT POWER | W 940/29 |
| ATLAS-COPCO | 9712-5401-03 |
| BALDWIN | B7031, B7089, B7320, BT292 |
| BECK/ARNLEY | 041-8041 |
| Big A | 92283, 92609, 92768 |
| Bosch | 451104004, 72116 |
| Car Care | OF2842 |
| Carquest | 85283, 85600EST, 85609, 85768 |
| Cenex | CO2819 |
| Champ | PH2819 |
| Coopers | FT4653 |
| Copco | 9712-5401-03 |
| Crosland | 660 |
| Deutsch | D544, PH2819 |
| Deutz | 1160024, 150157510, A1H4123 |
| Donaldson | P550710, P550731, P551297, P552819 |
| FLEETGUARD | LF4056 |
| Fleetguard | HF6159, HF6280, LF3417, LF3443, LF4154, LF708, LF760 |
| Fleetrite | LFR-83417, LFR-84056 |
| Ford | E7HZ6731A, F2NN-6714-AA, F2NN-6714-AB |
| General Motors | 11-13101, 25012325, 25012425, 25012636 |
| Girling | F3781, F6465 |
| Grand Prix | PH2819 |
| Group 7 | L45189 |
| Hastings | B7031, LF404, LF454 |
| Henschel Imported Diesels | 711-922-853 |
| IAPCO | OF921 |
| IPD | 10074 |
| ITM | 111-3101 |
| ITM Autoparts | 111-3101, 11-13101 |
| Ingersoll Rand | 35292358 |
| Installer Edge | AL2842 |
| Jiffy Lube | HL2842, JL260 |
| Knecht | AW5, AW42 |
| Komatsu | 600-211-5240, 600-211-5241, 600-211-5242, 600-211-6140, 600-211-6230 |
| Kralinator | L72 |
| LUBER-FINER | LFH4207, LFP2312, LFP950, PH2818, PH2819 |
| Letourneau | PH2819 |
| Liebherr | 7020038 |
| Linde | 016-000-000-200 |
| MAN | 6750358596, W9.40/18 |
| MANN-HUMMEL FILTERS | W940/29 |
| MPA | 2203 |
| Manitou | 137183, 1-173481 |
| Mann-Filter | W9.40 18, W9.40/18, W940/180, W940/29, W940/5 |
| Marathon | PH2819 |
| Massey Ferguson | 971238001 |
| Master Parts | PH-2819 |
| Mercedes-Benz | 971238001 |
| Mighty Distributing System | L30260, PH2819 |
| Mitsubishi | FP100074 |
| Mobil | L30260, L45189 |
| Motorcraft | FL-292 |
| NAPA | 1283, 1609, 1768 |
| New Holland Agriculture | 276516, 81879134 |
| Nissan | 58396-47601 |
| Performax | PO-122 |
| Phillips 66 | P54, WO1283 |
| Poclain | 2432-52, 8888-840, 9999-667 |
| Purflux | LS426, LS427, LS479A |
| Purolator | L30054, L30260, L45189 |
| Quaker State | L30260, L45189, PO-122 |
| Security Filters | PH2819 |
| Shell - Archived | L30260, L45189 |
| Unocal 76 | OF1283 |
| Valvoline | L-2819 |
| Vera | 10-00330 |
| Volkswagen | 911 107 754 00, 916 107 754 00, 930 107 764 00 |
| Volvo | 11700375 |
| WIX FILTERS | WIX FILTERS, 51768 |
| Warner | PH2819 |
| Warner Filters | PH2819 |
| Wix | 51158, 51283, 51609, 57374, 51768 |
FRAM PH2842 Fits Vehicles
- Lamborghini Urraco (1973-1976)
- Porsche 930 (1978-1979)
- Porsche 911 (1972-1994)
