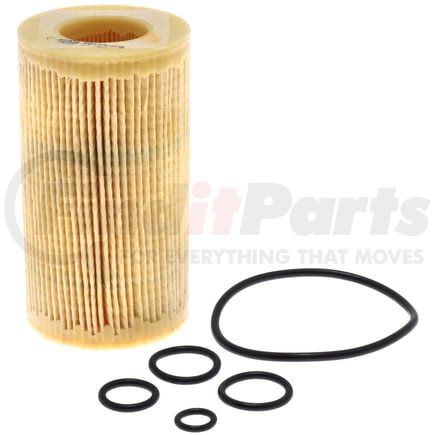

(888) 312-8812 Login SignupFRAM CH9301 Cartridge Oil Filter
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM CH9301 Part Description
FRAM CH9301 Specifications
Product Attributes
| Outside Diameter | 2.522 IN |
| Height | 4.531 IN |
| Grade Type | Regular |
| Gasket Or Seal Included | Yes |
| Filter Type | Cartridge |
| Bottom Inside Diameter | 1.221 IN |
| Gasket Inside Diameter | 2.859 IN |
| Gasket Outside Diameter | 2.998 IN |
| Gasket Thickness | 0.139 IN |
| Gasket Type | Cover |
| Housing Color | NA |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 0.827 IN |
| O-ring Inside Diameter (1) | 0.748 IN |
| O-ring Inside Diameter (2) | 0.630 IN |
| O-ring Inside Diameter (3) | 0.394 IN |
| O-ring Outside Diameter | 0.945 IN |
| O-ring Outside Diameter (1) | 0.866 IN |
| O-ring Outside Diameter (2) | 0.748 IN |
| O-ring Outside Diameter (3) | 0.492 IN |
| O-ring Thickness | 0.118 IN |
| O-ring Thickness (1) | 0.118 IN |
| O-ring Thickness (2) | 0.118 IN |
| O-ring Thickness (3) | 0.098 IN |
| Reusable | No |
| Top Inside Diameter | 1.221 in |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100038586 |
| UNSPSC | 15121501 |
FRAM CH9301 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN | P1443 |
| CHRYSLER | 5086301AA |
| Champ | P8153 |
| DONALDSON | P550564 |
| ECOGUARD | X5536 |
| FLEETGUARD | LF3997 |
| FVP | G1226 |
| GROUP 7 | L25536, V5536 |
| HASTINGS | LF568 |
| HENGST | E11HD57 |
| Installer Edge | AL9301 |
| LUBER-FINER | P8153 |
| MAHLE | OX153D3ECO, OX 153D3 ECO, OX 153D3, OX153D3 |
| MANN & HUMMEL | HU718/1K |
| MANN-HUMMEL FILTERS | HU718/1K |
| Mann-Filter | HU718/1K, HU7181, ML 1032 |
| Mercedes-Benz | 611 180 0009, 674 025 2406, A 112 184 05 25, A112 184 0025, A611 180 0009 |
| Mobil | L25536 |
| Mobil 1 | M1C-253, M1C-253A |
| NAPA | 7038 |
| PUROLATOR | TL25536 |
| Parts Master | 67038 |
| Pentius | PCB9301 |
| Pronto | PO-5536 |
| Purolator | L25536 |
| STP | S8481 |
| Shell - Archived | L25536 |
| VIPER | 9301, 9447 |
| WIX FILTERS | 57038 |
| Wega | WOE300/1 |
| Wix | 57038 |
FRAM CH9301 Fits Vehicles
- Freightliner Sprinter 3500 (2002-2006)
- Freightliner Sprinter 2500 (2002-2006)
- Suzuki Aerio (2002)
- Dodge Sprinter 2500 (2003-2006)
- Dodge Sprinter 3500 (2003-2006)
