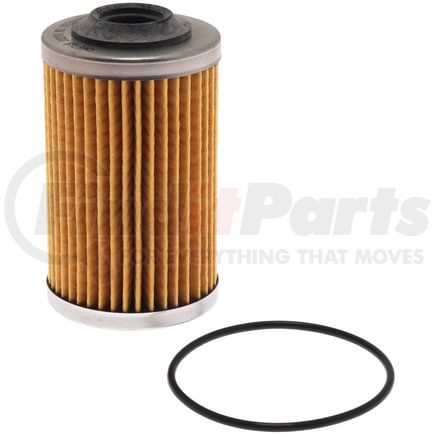

(888) 312-8812 Login SignupFRAM CH8765 Cartridge Oil Filter
Tap to view 5 more
MSRP: $15.75
$749
Save $8.26
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 20
FRAM CH8765 Part Description
Manufacturer
Product Description
FRAM, CH8765, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
FRAM CH8765 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.780 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.715 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.425 IN |
| O-ring Outside Diameter | 2.620 IN |
| O-ring Thickness | 0.103 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.087 in |
| Outer Diameter Top | 2.087 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.715 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100024732 |
| UNSPSC | 15121501 |
FRAM CH8765 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF2129, PF2129F, PF459G |
| ACDelco | PF2129, PF2129F, PF2129G, PF2130, PF459G |
| Atlas | G79 |
| BALDWIN | P1433 |
| Bosch | 72247WS, 3474 |
| CARQUEST | 84090 |
| CHAMP | P2129 |
| Carquest | R84090, R84090MP |
| Carquest Premium Filters | 84090 |
| Casite Filters | CF489 |
| Certified | CCH8765 |
| Champ | P2129XL |
| Champion | COC8765 |
| Champion Filters | COC8765 |
| DEFENSE | DL8765 |
| DENSO | 150-3064 |
| Defense Filters | DL8765 |
| Donaldson | P552361 |
| Driveworks | DW-5274 |
| ECOGARD | X5274 |
| ECOGUARD | X5274 |
| EXXON/MOBIL OIL | M1C254, M1C254A |
| FIRESTONE | TF2129 |
| FRAM | M1C-254A, M1C-254, XG8765 |
| FRAM Drive | FD8765 |
| FRAM Titanium | FS8765 |
| FRAM Tough Guard | TG8765 |
| FRAM Ultra Synthetic | XG8765 |
| FVP | G7090 |
| Factory Motor Parts | G7090 |
| GMB | 699-1004 |
| General Motors | 12593333, 19114105, 19303249, 25177917 |
| Group 7 | V5274 |
| Hastings | LF489, LF489F |
| Hengst | E622H |
| Installer Edge | AL8765 |
| K&N | PS-7003 |
| Kendall | K45 |
| LUBER-FINER | P2129 |
| MAHLE | OX399DECO, OX 399D ECO, OX 399D |
| MANN-HUMMEL FILTERS | HU69/3X |
| MOBIL OIL | M1C254A, M1C254 |
| Magneti Marelli | 1AMFL00016 |
| MicroGard | MGL8765, MGL57090 |
| MicroGard Select | MSL57090 |
| Mighty Distributing System | M2129 |
| Mileguard | MO8765 |
| Mobil | MO5274 |
| Mobil 1 | M1C-254, M1C-254A |
| MotoMaster | MCH8765 |
| NAPA | 7090 |
| NAPA Platinum Filters | 47090 |
| NAPA ProSelect Filters | 27090 |
| NAPA Silver Filters | 37090 |
| PUROLATOR | TL25274 |
| Parts Master | 67090BP, PH5274, 67090, 67090X |
| Parts Plus | P2129 |
| Pennzoil | PZ-55, PZ55 |
| Pentius | PCB8765 |
| Performax | PO-55 |
| Pit Stop | PSL45 |
| Premium Guard | PG5274 |
| Prime Guard Filters - Archived | POF5274 |
| Pro-Tec | 176 |
| Professionals Choice - Archived | Q5274 |
| Promotive | PH5274 |
| Pronto | PO-5274 |
| PureZone | 8-57090 |
| Purolator | PL25274, L25274 |
| Purolator PureONE | PL25274 |
| Purolator TECH | TL25274 |
| PurolatorONE | PL25274 |
| Quaker State | QS8765 |
| STP | S8765 |
| STP Filters | S8765, S8765ML, S8765XL |
| Saab | 93 18 6310 |
| Service Champ | CF5274 |
| Service Pro | M5274 |
| Shell - Archived | SH44 |
| Silverline | 27090 |
| Tough Guard | TG8765 |
| Ultra | XG8765 |
| VIPER | 8765 |
| Valvoline | VO-67, VO67 |
| WIX FILTERS | 57090, 57090XP |
| Warner | P2129 |
| Warner Filters | P2129 |
| Wix | 57090XP, 57090 |
FRAM CH8765 Fits Vehicles
- Suzuki Aerio (2002)
- GMC Canyon (2015-2016)
- Chevrolet Colorado (2015-2016)
- Chevrolet Caprice (2012-2017)
- Saab 9-4X (2011)
- Cadillac ATS (2013-2015)
- Saab 9-5 (2010-2011)
- Chevrolet Camaro (2010-2015)
- Saab 9-3 (2006-2009)
- Pontiac G8 (2008-2009)
- Cadillac CTS (2004-2015)
- Cadillac STS (2005-2011)
- Cadillac SRX (2004-2011)
- Oldsmobile Intrigue (1999-2002)
- Oldsmobile Aurora (2001-2002)
