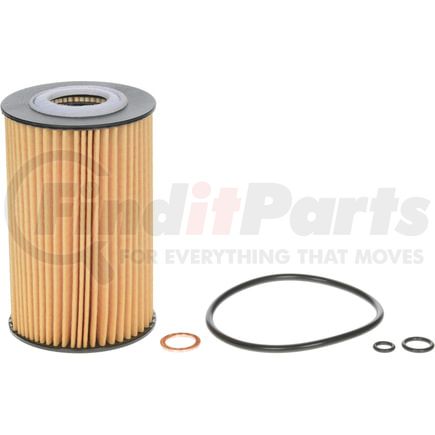

FRAM CH8087 Part Description
Manufacturer
Product Description
FRAM, CH8087, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
FRAM CH8087 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.016 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.875 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.390 IN |
| O-ring (1) Outside Diameter | 0.469 IN |
| O-ring (1) Thickness | 0.079 IN |
| O-ring (2) Inside Diameter | 0.236 IN |
| O-ring (2) Outside Diameter | 0.936 IN |
| O-ring (2) Thickness | 0.070 IN |
| O-ring Inside Diameter | 2.939 IN |
| O-ring Outside Diameter | 3.078 IN |
| O-ring Thickness | 0.139 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.563 in |
| Outer Diameter Top | 2.563 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.875 in |
| Torque Nut | No |
| Washable | No |
| Washer Inside Diameter | 0.473 IN |
| Washer Outside Diameter | 0.670 IN |
| Washer Thickness | 0.059 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100003232 |
| UNSPSC | 15121501 |
FRAM CH8087 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF2252G |
| ACDelco | PF2252G |
| BALDWIN | P7426 |
| BIG A | 92213 |
| BMW | 11 42 1 432 097, 11 42 1 743 398, 11 42 1 716 192 |
| BOSCH | 72201 |
| Beck/Arnley | 041-8106 |
| CARQUEST | 85213 |
| CHAMP | P8445 |
| Champion | COC8087 |
| Champion Filters | COC8087 |
| ECOGUARD | X5251 |
| FVP | G1213 |
| Factory Motor Parts | G1213 |
| GROUP 7 | L25251 |
| HASTINGS | LF514 |
| Installer Edge | AL8087 |
| Jiffy Lube | HL8087 |
| LUBER-FINER | P8445 |
| MAHLE | OX127/1DECO, OX 127/1D ECO, OX 127/1D, OX1271D |
| MANN-HUMMEL FILTERS | HU715/4X |
| Mann-Filter | HU715/3X, HU715/4X |
| Mighty Distributing System | M8445, P8445 |
| Mobil | L25251 |
| NAPA | 1213 |
| Pentius | PCB8087 |
| Performax | PO-160 |
| Premium Guard | PG5251 |
| Purolator | L25251 |
| Quaker State | L25251 |
| STP | S8087 |
| STP Filters | S8087 |
| Shell - Archived | L25251 |
| VIPER | 8087 |
| Valvoline | LC-8445 |
| WIX FILTERS | WIX FILTERS, 51213 |
| Warner | P8445 |
| Warner Filters | P8445 |
| Wix | 51213 |
FRAM CH8087 Fits Vehicles
- Suzuki Aerio (2002)
- BMW 318is (1996-1999)
- BMW Z3 (1996-1998)
- BMW 318i (1996-1999)
- BMW 318ti (1996-1999)
