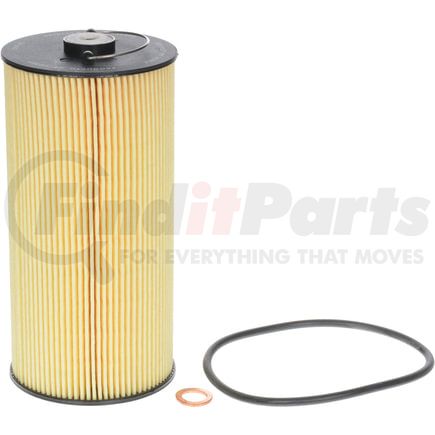

(888) 312-8812 Login SignupFRAM CH4536 Cartridge Oil Filter
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM CH4536 Part Description
Manufacturer
Product Description
FRAM, CH4536, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
FRAM CH4536 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 6.312 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.938 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 4.063 IN |
| O-ring Outside Diameter | 4.375 IN |
| O-ring Thickness | 0.156 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.375 in |
| Outer Diameter Top | 3.375 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.500 in |
| Torque Nut | No |
| Washable | No |
| Washer (1) Inside Diameter | 0.469 IN |
| Washer (1) Outside Diameter | 0.656 IN |
| Washer (1) Thickness | 0.063 IN |
| Washer Inside Diameter | 0.563 IN |
| Washer Outside Diameter | 0.750 IN |
| Washer Thickness | 0.063 IN |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100381637 |
| UNSPSC | 15121501 |
FRAM CH4536 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF2053 |
| ACDelco | PF2053 |
| BALDWIN | P7615 |
| BECK/ARNLEY | 041-8085 |
| BIG A | 92289 |
| BOSCH | 72162 |
| CARQUEST | 85289 |
| CENEX | CO829 |
| CHAMP | P829 |
| CHAMPION | OF431 |
| Champion Filters | OF431 |
| Citgo Petroleum | P829 |
| Crosland | 1013 |
| Deutsch | D652 |
| Donaldson | P550361 |
| ECOGUARD | X39 |
| FVP | G1289 |
| Facet Industrial | LC-39 |
| Factory Motor Parts | G1289 |
| Fleetguard | LF3584 |
| Girling | F1013 |
| Grand Prix | P829 |
| Group 7 | L40039 |
| Hastings | LF390 |
| IAPCO | A-0240-013, OF514 |
| IPD | 10134 |
| ITM | 11-12709, 111-2709 |
| ITM Autoparts | 111-2709, 11-12709 |
| Installer Edge | AL4536 |
| Jiffy Lube | HL4536, JL39 |
| Kralinator | D912 |
| LUBER-FINER | P829 |
| MAHLE | OX38D, OX 38D |
| MANN-HUMMEL FILTERS | PF1050/1N |
| MPA | 4211, 4213 |
| Mann-Filter | PF1050/1N |
| Master Parts | P-829 |
| Mercedes-Benz | 601 180 0009, 601 180 0109, 601 184 0025 |
| Mighty Distributing System | M39D |
| Mobil | L40039 |
| NAPA | 1289 |
| OE+ | OF-1435 |
| Pentius | PCB4536 |
| Performax | PO-133 |
| Phillips 66 | WO1289 |
| Purolator | L40039 |
| Quaker State | 4536, PO-133, L40039 |
| STP | S4536 |
| STP Filters | S4536 |
| Security Filters | P829 |
| Shell - Archived | L40039 |
| Unocal 76 | OF1289 |
| VIPER | 4536 |
| Valvoline | LC-829, LC829 |
| Vera | 10-01162 |
| WIX FILTERS | WIX FILTERS, 51289 |
| Warner | P829 |
| Warner Filters | P829 |
| Wix | 51289 |
FRAM CH4536 Fits Vehicles
- Mercedes-Benz S350 (1994-1995)
- Mercedes-Benz 300TD (1987)
- Mercedes-Benz 300SD (1992-1993)
- Mercedes-Benz 300SDL (1986-1987)
- Mercedes-Benz E300 (1995)
- Mercedes-Benz 350SD (1991)
- Mercedes-Benz 350SDL (1990-1991)
- Mercedes-Benz 300D (1987, 1990-1993)
- Mercedes-Benz 190D (1984-1989)
