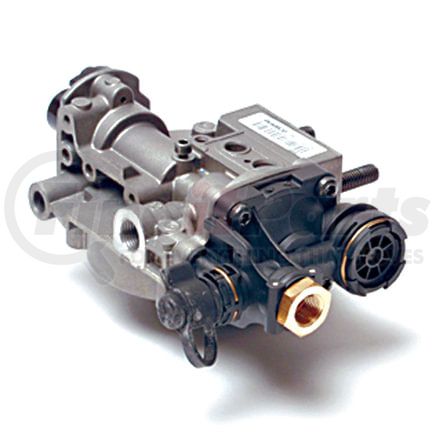

(888) 312-8812 Login SignupWABCO 4757220000 Air Brake Valve - Load Sensing Valve - Mechanical, Dynamic
Tap to view 6 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WABCO 4757220000 Part Description
WABCO 4757220000 Specifications
Product Attributes
| Regulating Ratio | 1:5.3 |
| Max. operating pressure | 145.0 psi |
| Temperature Range | -40°C to +80°C |
| Cooling | Air |
| Type Of Operation | Dynamic |
| Port threads | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 JED - 152 |
| Break Point | 0.6 bar |
| Control Stroke | 0° to +52° |
| Control Pressure | Max 10 bar |
| Exhaust | Snap on contour JED - 463 |
| Size | 227 x 169 x 91 |
| Mounting | 2x M10 |
| Weight | 2.3215 |
| Bolt Lengths | 27.0 mm |
| Distance between bolts | 26 mm |
| Port thread 1 | M16 x 1.5 JED-152 |
| Total Stroke | -30° to +110° |
| Type | Mechanical |
| Calculated Volume (dm³) | 3.491 |
WABCO 4757220000 Cross References
We have 3 alternatives for the 4757220000 by WABCO:
WABCO 4757220000 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
