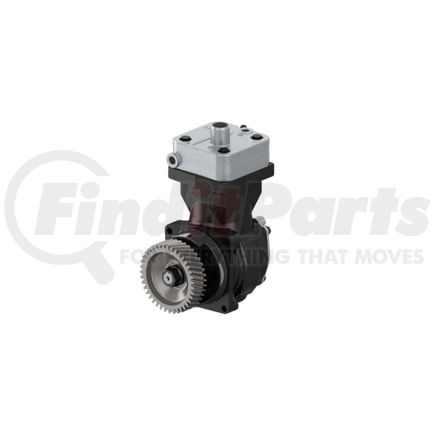

WABCO 4111510090 - Air Compressor - Single-Cylinder, Flange Mounted, 238cc, WJP
$2,66899
MSRP: $4,969.03
Save: $2,300.04
Limited Availability
. Learn more
WABCO part description
Product Attributes
| Swept Volume (Cm³) | 238 cm3 |
| Weight | 28.5432 |
| Max. operating pressure | 12.5 bar |
| Piston Diameter | 85 mm |
| Operating speed | 3000 (1/min) |
| Port Thread 9.1 | M14 x 1.5 |
| Port Thread 9.2 | M14 x 1.5 |
| Crankshaft thread | M20 x 1.5 LH |
| Type Of Operation | Normal pressure using unloader |
| Type | Single Cylinder |
| Port Thread 0 | Ø 30 mm |
| Size | 231 x 205 x 327 |
| Piston stroke | 42 mm |
| Mounting | Flange mounting |
| Calculated Volume (dm³) | 15.485 |
| Port thread 2 | M26 x 1.5 |
| Port Thread 8.1 | Ø 6 mm |
| Cooling | Water |
| Lubrication | Lubrication supplied from engine |
WABCO 4111510090 Cross Reference
We have 7 alternatives for the 4111510090 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
