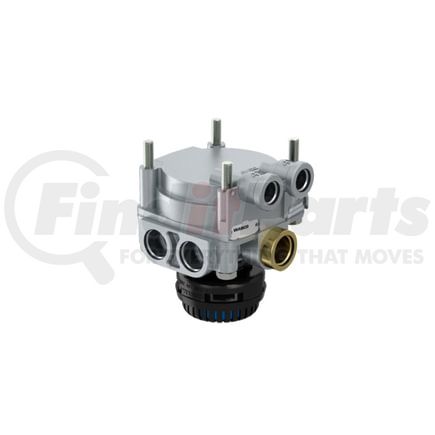

(888) 312-8812 Login SignupWABCO 9730112060 Air Brake Relay Valve
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WABCO 9730112060 Part Description
WABCO 9730112060 Specifications
Product Attributes
| Predominance | 0.30 bar |
| Max. operating pressure | 13.0 bar |
| Max. operating pressure | 188.55 psi |
| Weight | 2.06 |
| Mounting | 4x M8 |
| Calculated Volume (dm³) | 1.647 |
| Regulating Ratio | 1:1 |
| Port thread 22 | M16 x 1.5 |
| Port Thread 41 | M16 x 1.5 |
| Port Thread 42 | M16 x 1.5 |
| Version | Pressure reduction |
| Silencer | 432 407 0500 |
| Temperature Range | -40°C to +80°C |
| Exhaust | Snap on contour JED - 463 |
| Size | 119 x 101 x 137 |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
WABCO 9730112060 Cross References
We have 2 alternatives for the 9730112060 by WABCO:
WABCO 9730112060 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
