(888) 312-8812 Login SignupCSF 7340 JEEP WRANGLER (JL) & GLADIATOR (JT)
Tap to view 6 more
SHIPS NEXT BUSINESS DAY
$84349
Limited availability at this price!
In Stock
Get it by Thursday, Jul 2
CSF 7340 Part Description
Manufacturer
Product Description

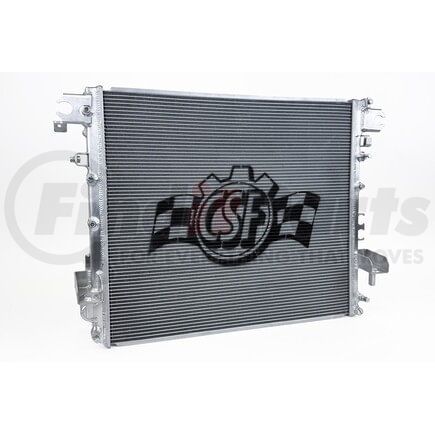

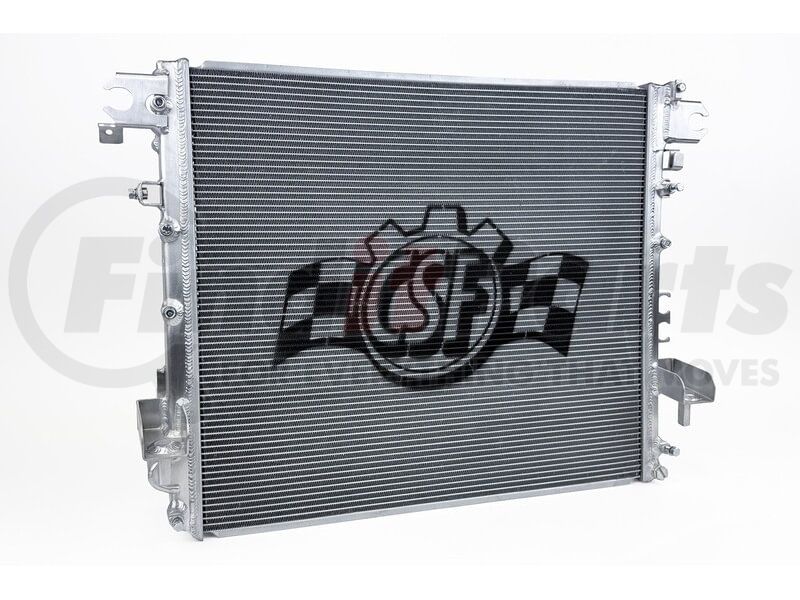

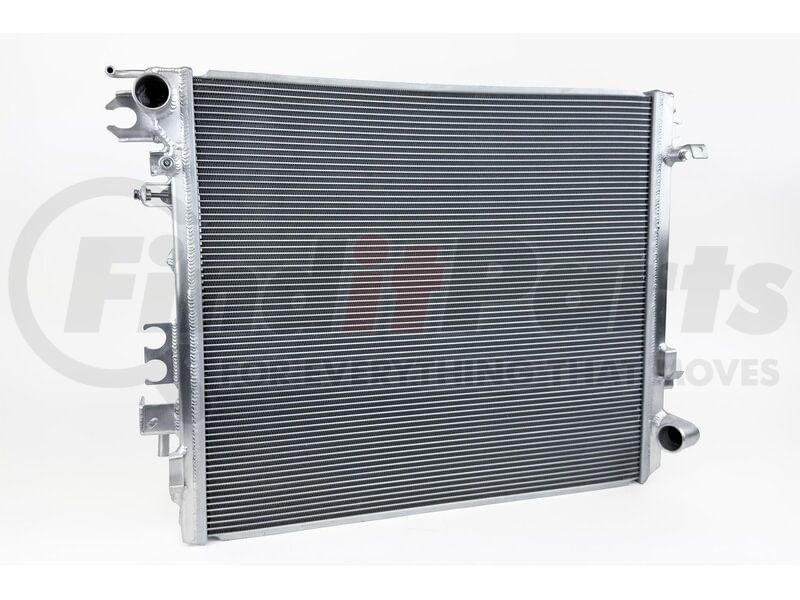

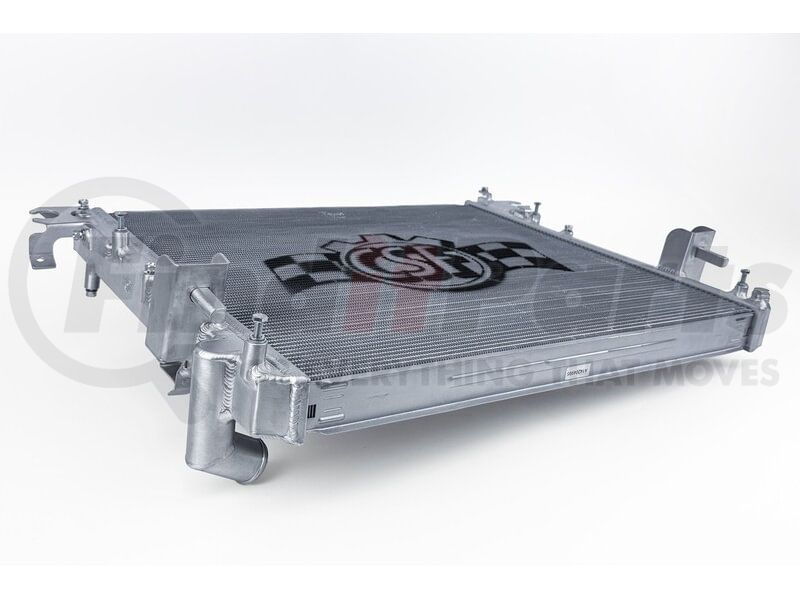

Jeep Wrangler (JL) & Gladiator (JT) Heavy-Duty All-Aluminum Radiator
Features & Benefits
- 2-Row - 42mm High-Performance Core
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

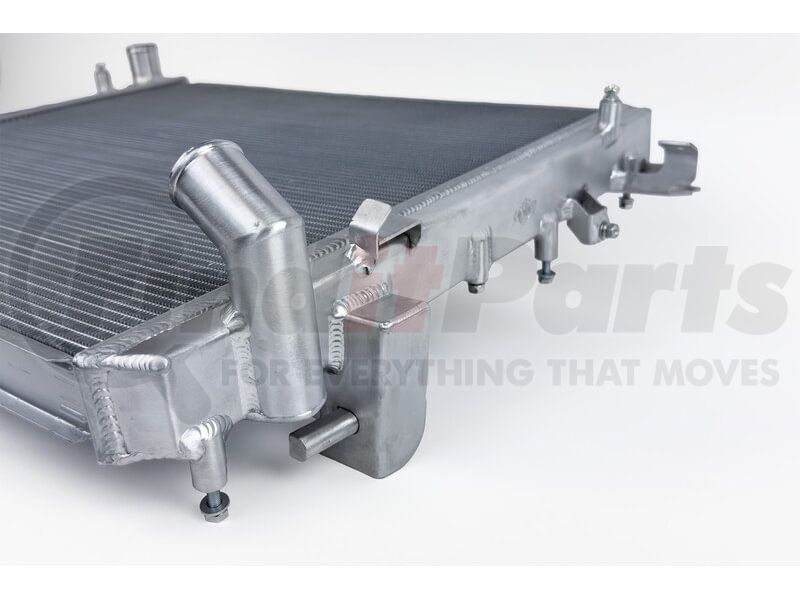

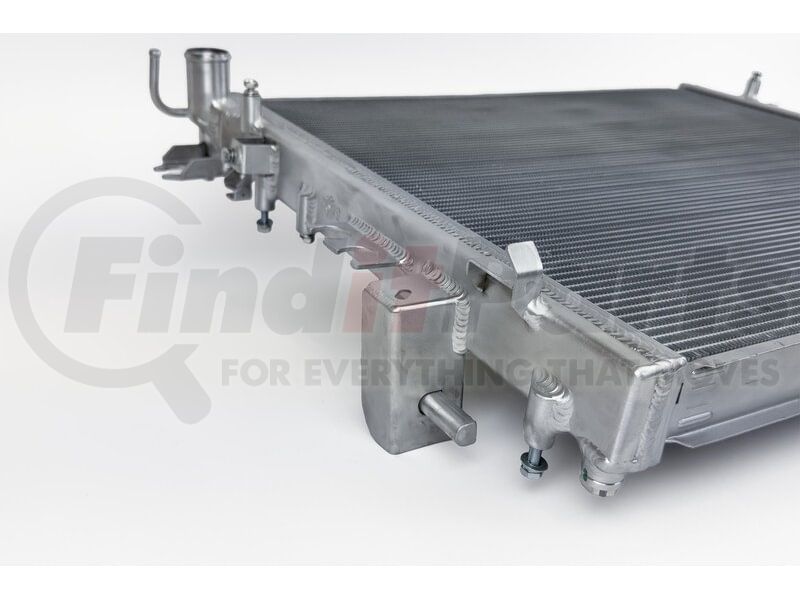

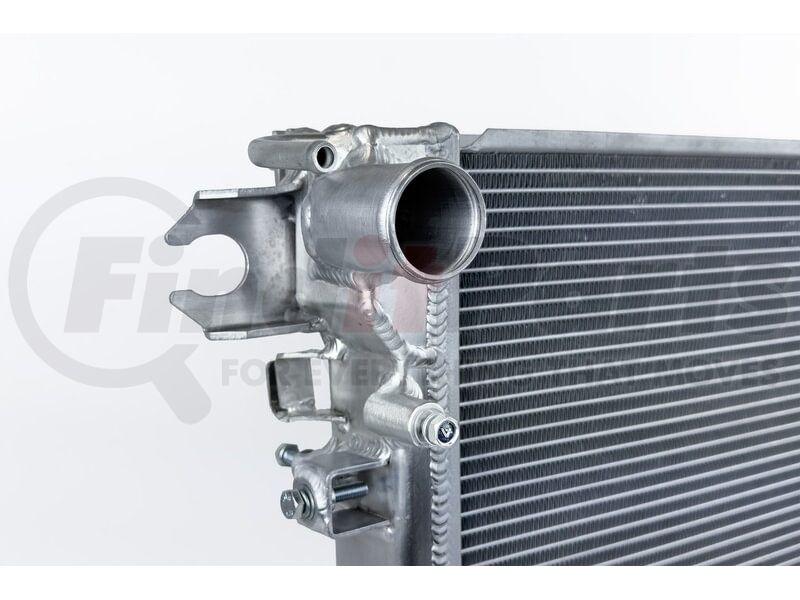

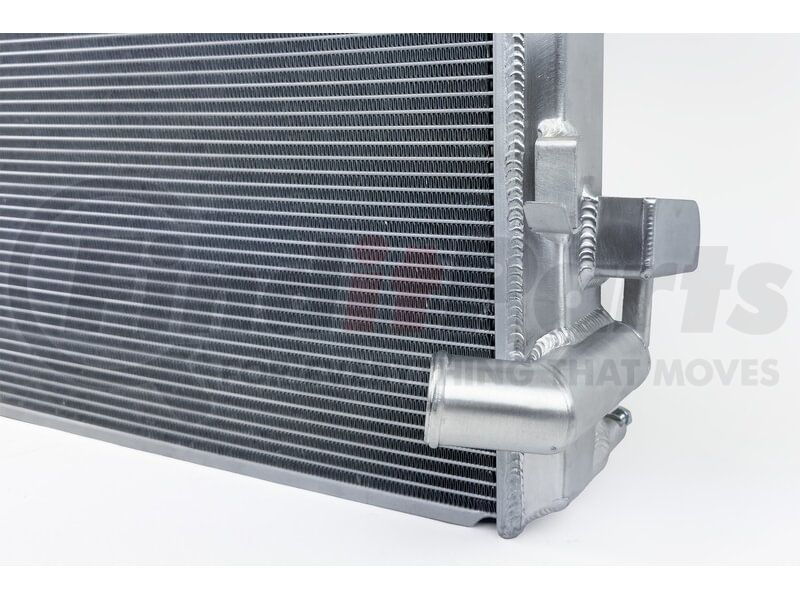

- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Hand Brushed Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
The CSF #7340 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
JEEP WRANGLER (JL) & GLADIATOR (JT)
CSF 7340 Specifications
Product Attributes
| Title | Jeep Wrangler (JL) & Gladiator (JT) Heavy-Duty All-Aluminum Radiator |
| Core Row Quantity | 2 |
| Grade Type | Performance |
| Radiator Cap Included | No |
| Outlet Connector Type | Slip On |
| Inlet Connector Type | Slip On |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Engine Oil Cooler | No |
| Internal Transmission Oil Cooler | No |
| Outlet Location | Bottom Right |
| Inlet Location | Top Left |
| Outlet Diameter | 35mm |
| Inlet Diameter | 35mm |
| Core Width | 495mm |
| Core Material | Aluminum |
| Core Thickness | 42mm |
| Core Height | 558mm |
| Mounting Hardware Included | No |
| Thermostat Included | No |
| Tank Material | Aluminum |
| Mounting Type | Mounts with OE Hardware |
| Frame Included | No |
| Coolant Hose Outlet Connection Type | OE Type Connection |
| Coolant Hose Inlet Connection Type | OE Type Connection |
| Installation Type | Drop-In Fit Installation |
| Finish/Color | Satin |
| Prop 65 Yes/no | No |
| Add-On | 8344 |
Additional Information
| Core Return Days to Expiry | 0 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | ID |
| Harmonized Tariff Code (Schedule B) | 8708915000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00710353073407 |
CSF 7340 Cross References
| Brand | Part Number |
|---|---|
| Fiat Chrysler Automobiles NV | 68314786AC, 68314786AB, 68314786AA |
CSF 7340 Fits Vehicles
- Jeep Gladiator (2020-2025)
- Jeep Wrangler (2018-2025)
CSF 7340 Customer Reviews
No reviews yet
Be the first to review this product!
CSF 7340 Manufacturer Information
When it comes to heavy-duty or performance vehicle cooling, trust only the experts—CSF. Called "The Cooling Experts," CSF has sold over 30 million products, including intercoolers, condensers, radiators, pressure caps, racing radiators, and other solutions to vehicle cooling problems. Whatever the application, CSF has the ideal solution. Its portfolio comprises over 3000 models manufactured in state-of-the-art, ISO-certified facilities. Every CSF product, especially its radiators, has been rigorously tested—Hydrostatic, vacuum decaying, life-cycle testing—and is meticulously crafted to provide a "drop-in fit." This world leader in automotive cooling now exclusively sells its products through its huge network of over 500 distributors across the country.
CSF 7340 Questions & Answers
No questions yet
Be the first to ask a question about this product!
