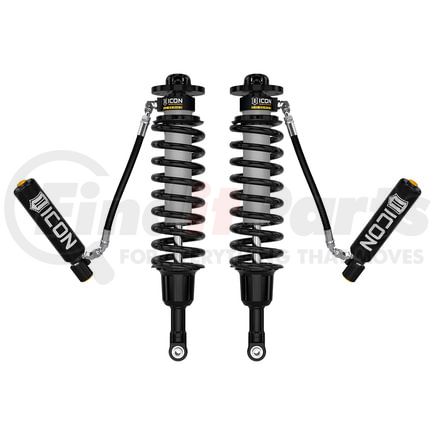

(888) 312-8812 Login SignupICON 95003 21-24 F-150 RAPTOR FRONT 3.0 VS RR
Tap to view 7 more
$5,08549
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 24
ICON 95003 Part Description
Manufacturer
Product Description

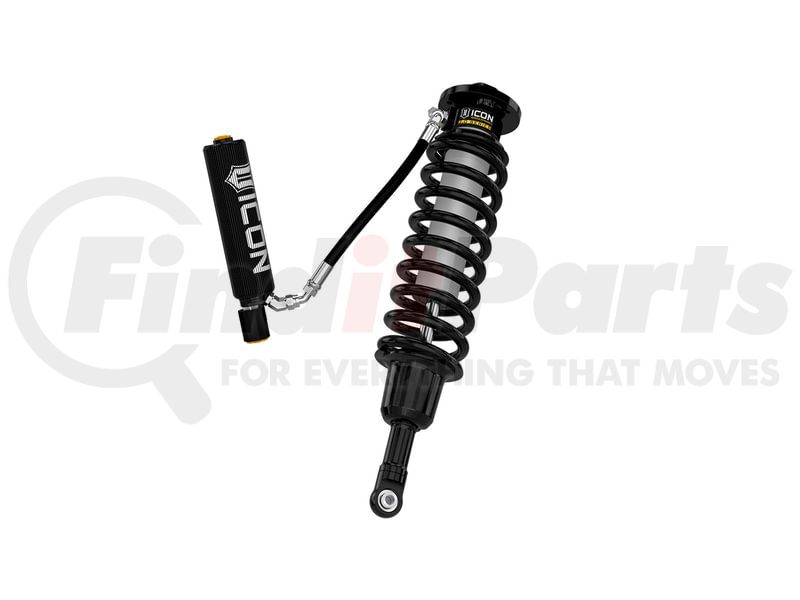

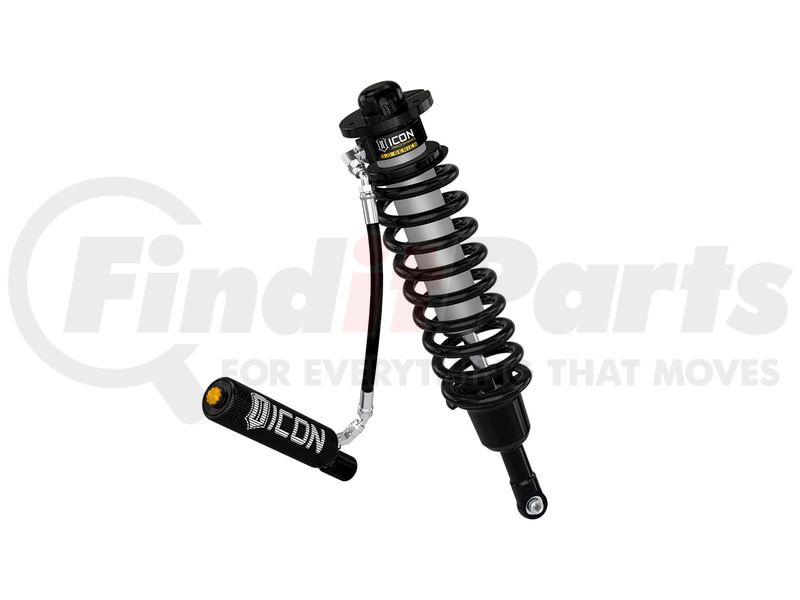

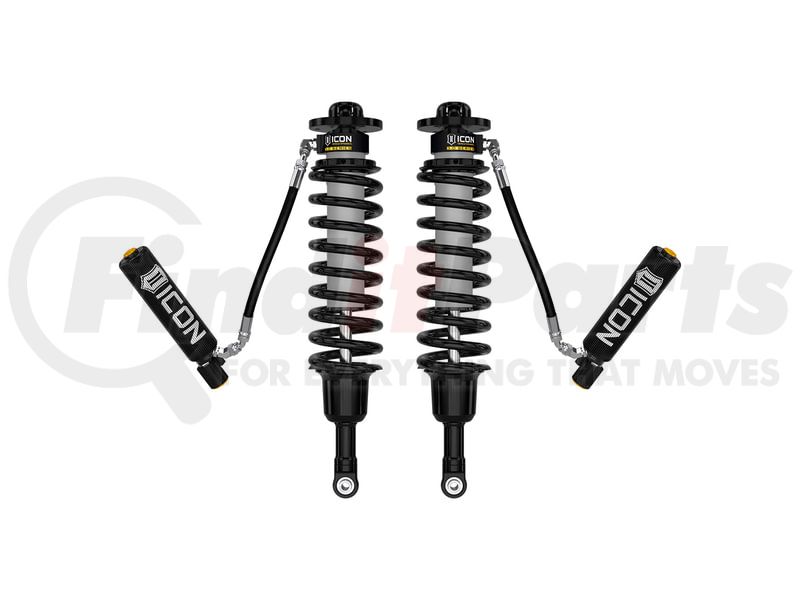

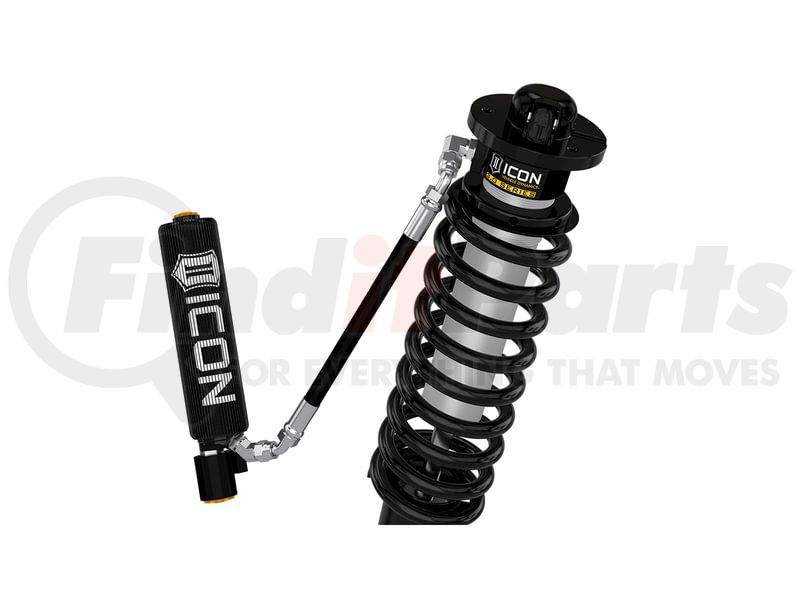

21-25 F-150 RAPTOR FRONT 3.0 VS RR CDEV COILOVER KIT
Features & Benefits
- Adjustable coilovers yield 1-3” of front lift height
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use

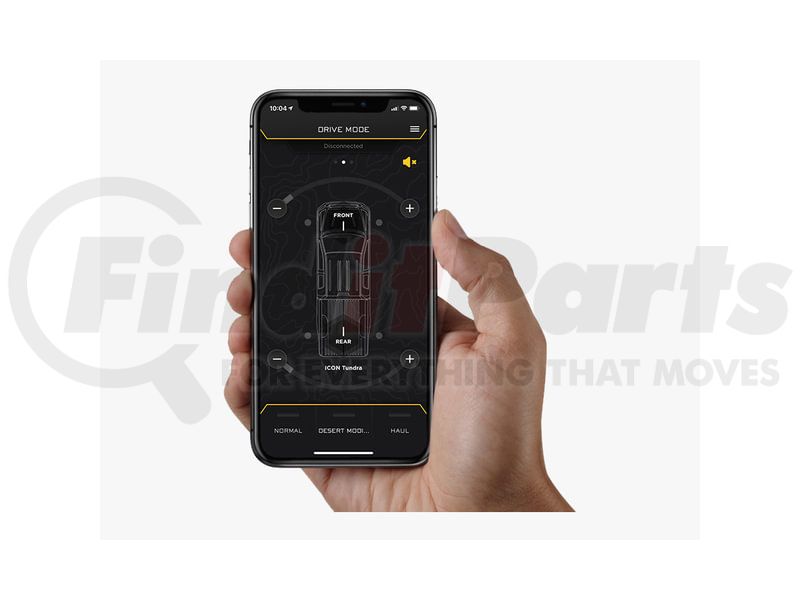

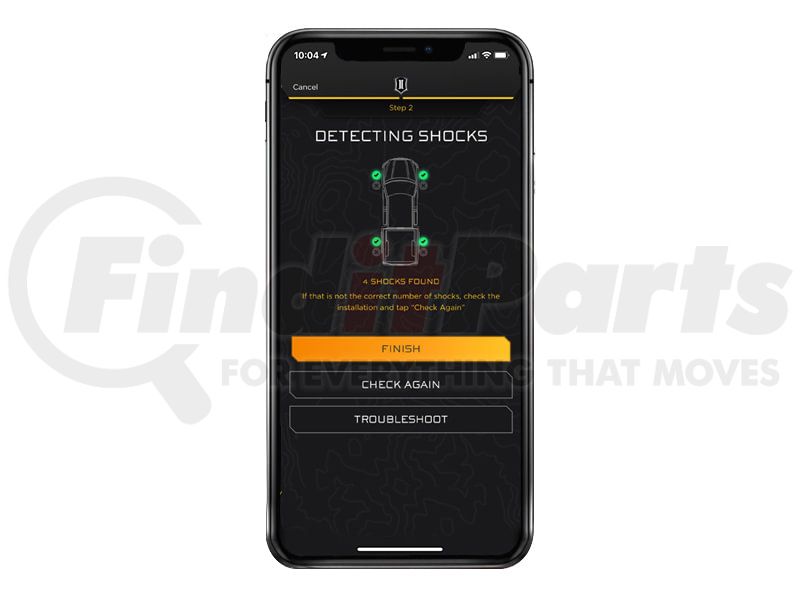

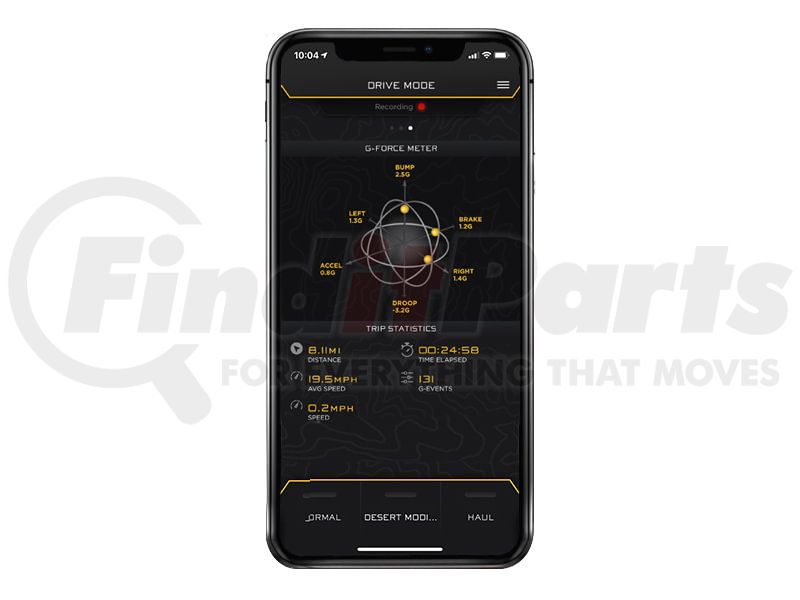

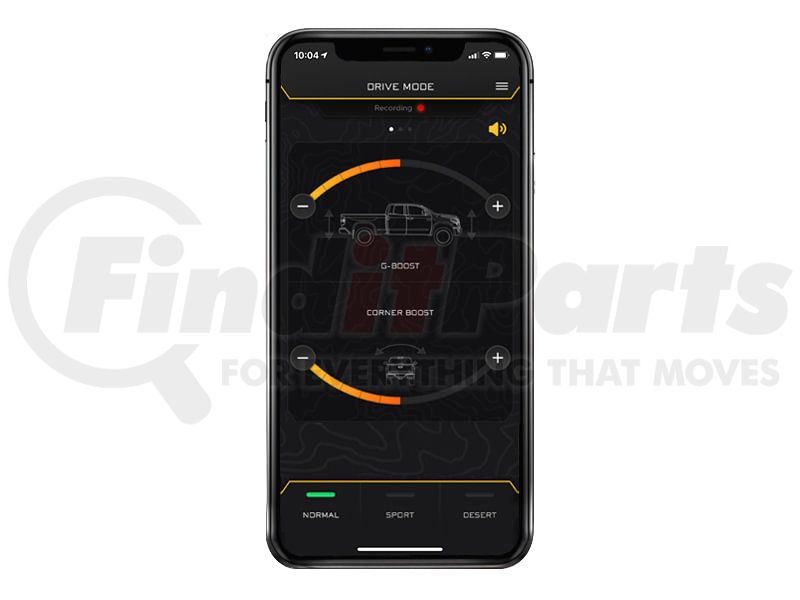

- ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Superior low speed control reduces body roll and increases on-road stability
- ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Barreled coil spring design maximizes travel and provides more efficient packaging
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Heavy duty CNC machined 1” shock shafts
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- Cerakoted shock body with hard anodized piston and top cap
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
OEM Wheels & Tires Fitment: Yes
21-24 F-150 RAPTOR FRONT 3.0 VS RR
ICON 95003 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Active |
| Add-on Part | 611078 - C/O BUMP SPACER KIT, 1" SHAFT, 7/8" TALL |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 3 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 21.16 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Ceramic Coated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Dust Shield | No |
| Dust Shield Included | No |
| Extended Length | 29.39 IN |
| 10107 | 500 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | .75 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Diameter | 1 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2021-2025 Ford F-150 Raptor, 1-3" Lift, Front, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDEV |
| Travel Length | 8.27 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Rebound: Digressive |
Additional Information
| Warranty Special | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103435497 |
ICON 95003 Fits Vehicles
- Ford F-150 (2021-2025)
