(888) 312-8812 Login SignupCENTRIC 402.65032 Centric Premium Hub and Bearing Assembly; With Integral ABS
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 402.65032 Part Description
Manufacturer
Product Description

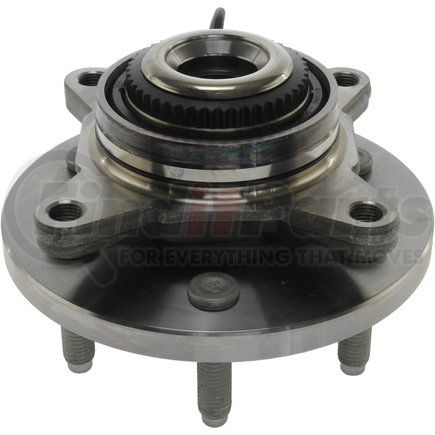

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
CENTRIC 402.65032 Specifications
Product Attributes
| Notes [cntrc] | ABS Ring 45 teeth; 4WD Hub Engage, Removable ABS Sensor wire; "O" ring grove in Inner Hub Pilot - Internal pilot Brgs. |
| Off-set [cntrc] Mm | 1.795 |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Product Grade [cntrc] | Premium |
| Inner Mount Pilot [cntrc] Mm | 99.290 |
| Inner Mount Pilot [cntrc] In | 3.909 |
| Mounting Hole Qty [cntrc] | 4 |
| Mouting Thread Size [cntrc] Mm | 14.000 |
| Off-set [cntrc] In | 45.590 |
| Spline Quantity | 45 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 86.710 MM |
| Wheel Pilot Diameter | 3.416 IN |
| Brake Pilot Diameter | 89.970 MM |
| Brake Pilot Diameter | 3.542 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 7.203 IN |
| Flange Diameter | 182.960 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890669906 |
CENTRIC 402.65032 Cross References
CENTRIC 402.65032 Fits Vehicles
- Ford F-150 (2010)
