CENTRIC 125.20022 Part Description
Manufacturer
Product Description

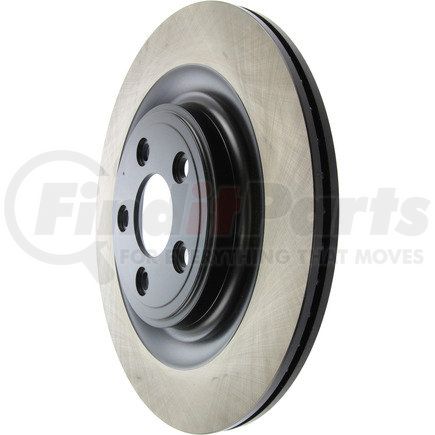

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.20022 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 15.150 |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Kgs | 6.890 |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18.000 MM |
| Nominal Thickness | 0.783 IN |
| Nominal Thickness | 19.900 MM |
| Hat Finish | Painted |
| Overall Height | 1.508 IN |
| Overall Height | 38.300 MM |
| Outside Diameter | 326.000 MM |
| Outside Diameter | 12.835 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 64.300 MM |
| Center Hole Diameter | 2.531 IN |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.000 MM |
| Stud/Lug Hole Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890728917 |
CENTRIC 125.20022 Cross References
CENTRIC 125.20022 Fits Vehicles
- Jaguar S-Type (2006-2008)
- Jaguar XJ (2010-2015)
- Jaguar XJR (2006-2009)
- Jaguar XJ8 (2006-2009)
- Jaguar Vanden Plas (2006-2009)
- Jaguar Super V8 (2006-2009)
- Jaguar XKR (2007-2009)
- Jaguar XK (2007-2015)
- Jaguar XF (2009-2016)
