CENTRIC part description

Product Description

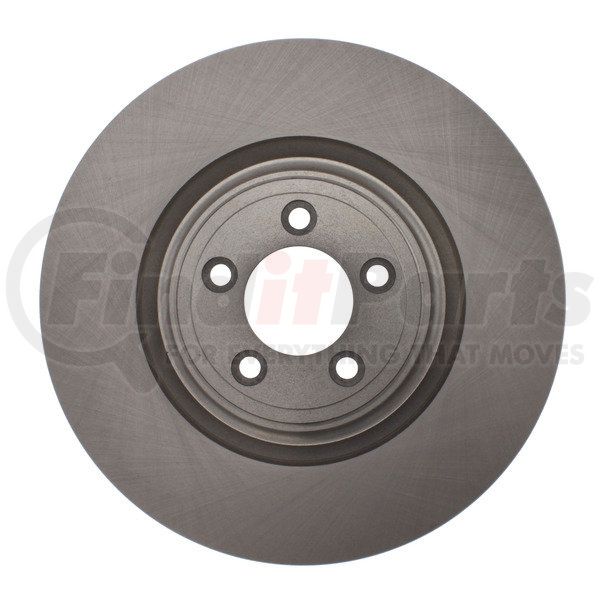

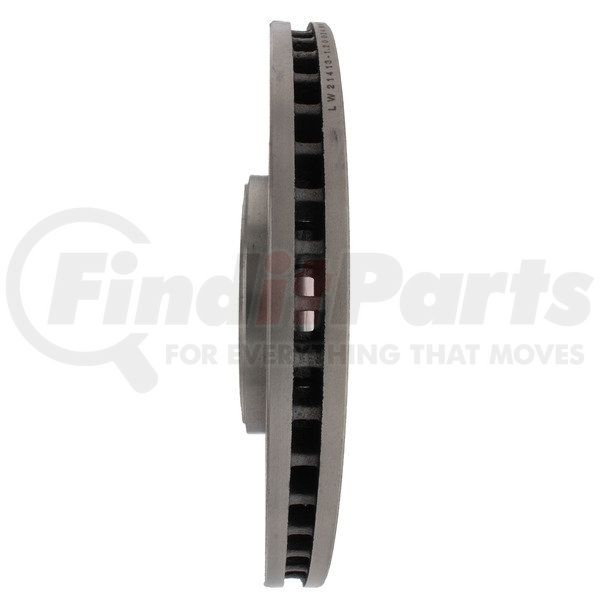

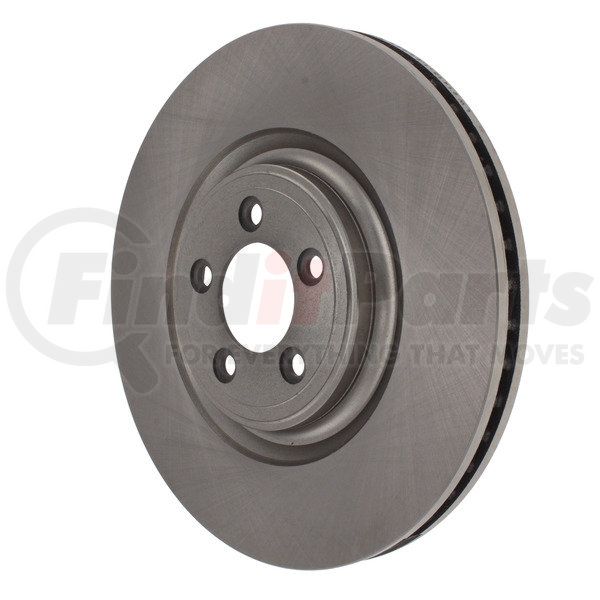

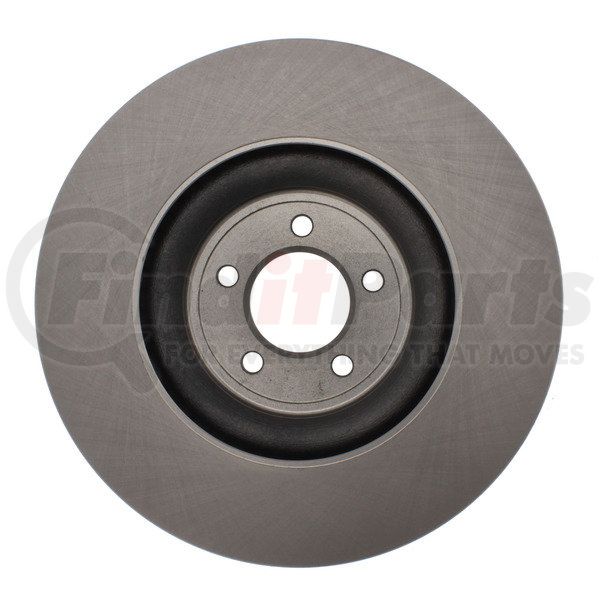

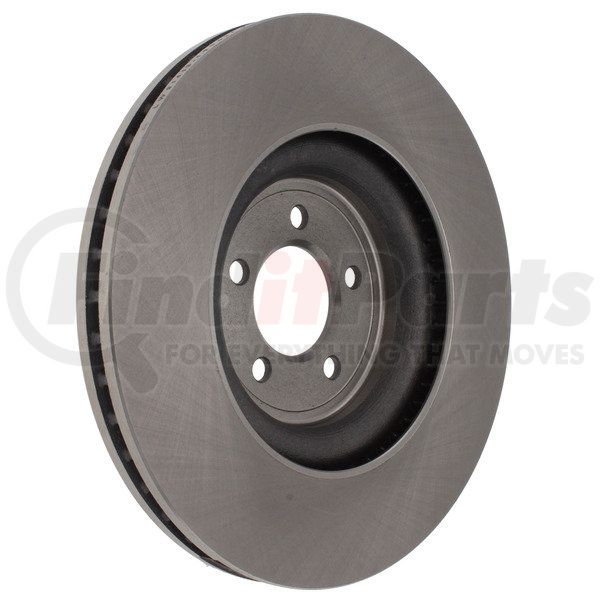

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Misc Holes [cntrc] 5
Product Grade [cntrc] Standard
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Vane Style [cntrc] Straight
Weight [cntrc] Lbs 26.600
Disc Mounting [cntrc] Floating
Weight [cntrc] Kgs 12.090
Discard Thickness 1.181 IN
Discard Thickness 30.000 MM
Nominal Thickness 32.000 MM
Nominal Thickness 1.260 IN
Overall Height 48.400 MM
Overall Height 1.906 IN
Outside Diameter 355.000 MM
Outside Diameter 13.976 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 71.000 MM
Center Hole Diameter 2.795 IN
Mounting Bolt Hole Circle Diameter 4.252 IN
Mounting Bolt Hole Circle Diameter 108.000 MM
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 0.551 IN
Stud/Lug Hole Diameter 14.000 MM

Additional Information

Harmonized Tariff Code (HTS) 8708305030
Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890712114

Part Interchanges

CENTRIC 121.20024 Cross Reference

We have 2 alternatives for the 121.20024 by CENTRIC:

Fits Vehicles

  • Jaguar XJR (2006-2009)
  • Jaguar Super V8 (2006-2009)
  • Jaguar S-Type (2006-2008)
  • Jaguar XKR (2007-2009)
  • Jaguar F-Type (2014-2021)
  • Jaguar XK (2010-2015)
  • Jaguar XF (2009-2016)
  • Jaguar XJ (2010-2018)
