(888) 312-8812 Login SignupCENTRIC 125.20013 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 1 more
$103.29
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.20013 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

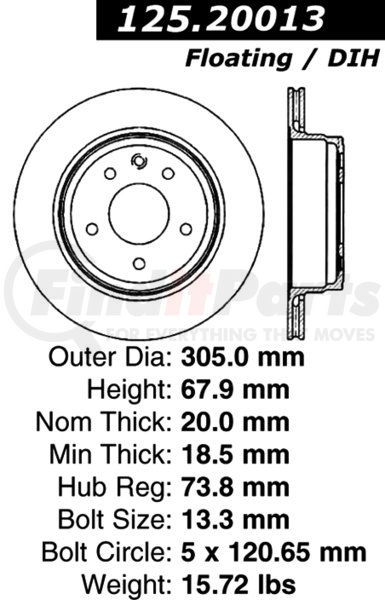

CENTRIC 125.20013 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.150 |
| Misc Holes [cntrc] | 1 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 181.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 15.720 |
| Max Pb Drum Dia [cntrc] In | 7.126 |
| Discard Thickness | 0.728 IN |
| Discard Thickness | 18.500 MM |
| Nominal Thickness | 20.000 MM |
| Nominal Thickness | 0.787 IN |
| Hat Finish | Painted |
| Overall Height | 67.900 MM |
| Overall Height | 2.673 IN |
| Outside Diameter | 305.000 MM |
| Outside Diameter | 12.008 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 180.100 MM |
| Nominal Drum Diameter | 7.091 IN |
| Bearings Included | No |
| Center Hole Diameter | 73.800 MM |
| Center Hole Diameter | 2.906 IN |
| Mounting Bolt Hole Circle Diameter | 4.752 IN |
| Mounting Bolt Hole Circle Diameter | 120.700 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.300 MM |
| Stud/Lug Hole Diameter | 0.524 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890728894 |
CENTRIC 125.20013 Cross References
CENTRIC 125.20013 Fits Vehicles
- Jaguar XKR (2000-2003)
- Jaguar XK8 (1997-2006)
- Jaguar XJS (1995-1996)
- Jaguar XJR (1995-2001)
- Jaguar XJ8 (1998-2003)
- Jaguar XJ6 (1995-1997)
- Jaguar XJ12 (1995-1996)
- Jaguar Vanden Plas (1995-2003)
