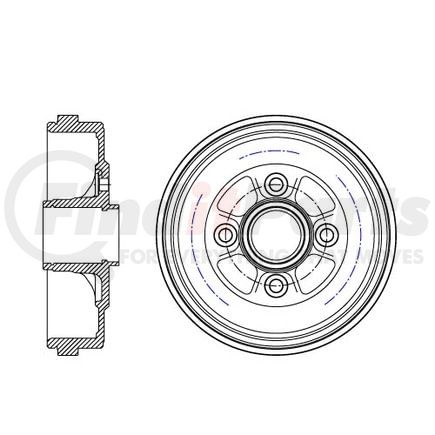

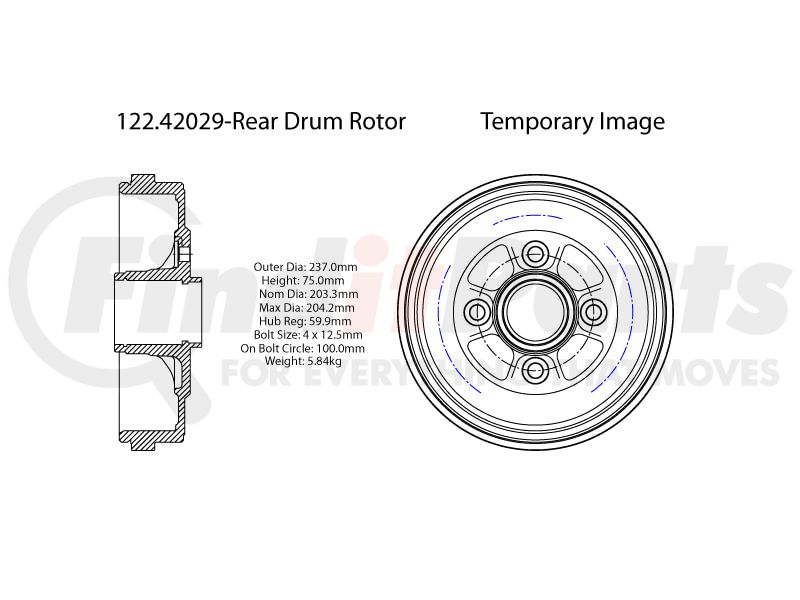

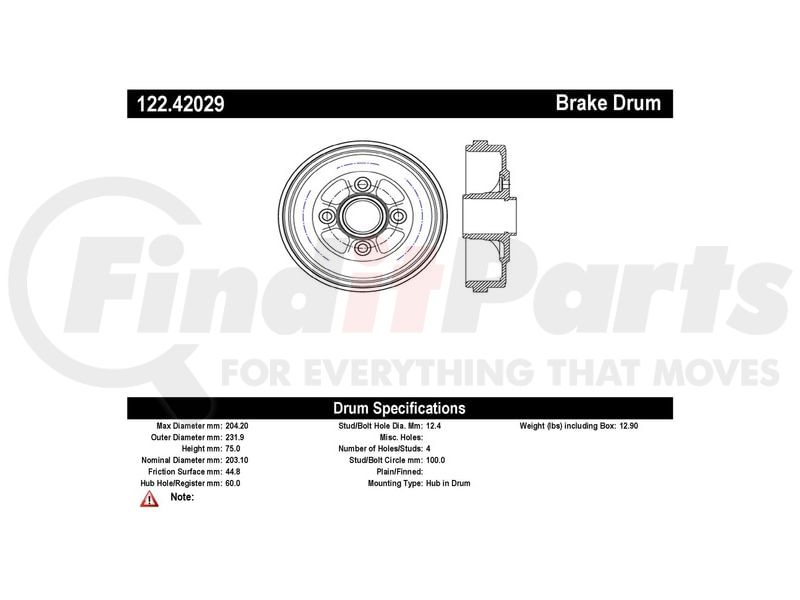

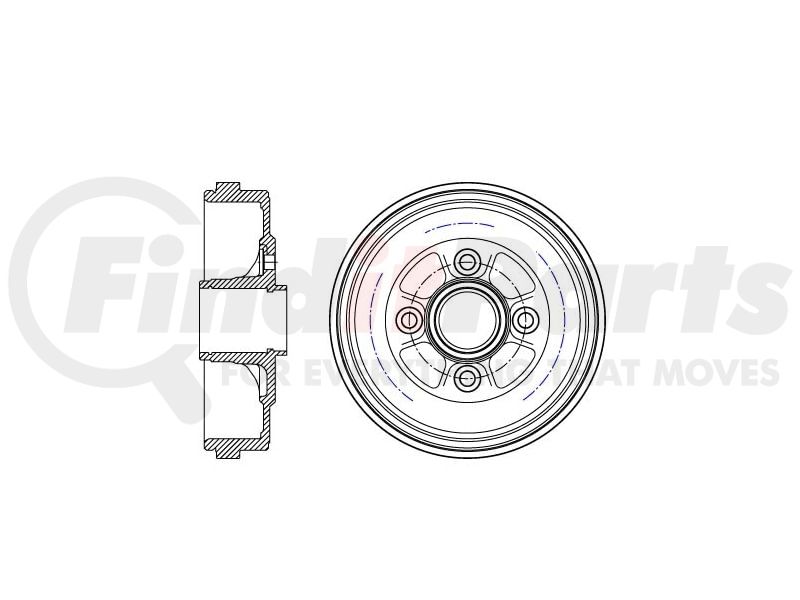

Centric 122.42029 - Premium Brake Drum
$5299
MSRP: $83.12
Save: $30.13
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Premium Brake Drum
Product Attributes
| Weight [cntrc] Kgs | 5.864 |
| Weight [cntrc] Lbs | 12.900 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 60.000 |
| Hub Hole / Register [cntrc] In | 2.362 |
| Height [cntrc] Mm | 75.000 |
| Height [cntrc] In | 2.953 |
| Friction Surface Width [cntrc] Mm | 44.800 |
| Friction Surface Width [cntrc] In | 1.764 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 204.200 MM |
| Maximum Brake Diameter (Discard) | 8.039 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 231.900 MM |
| Outside Diameter | 9.130 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.500 MM |
| Mounting Hole Diameter | 0.492 IN |
| Nominal Drum Diameter | 203.100 MM |
| Nominal Drum Diameter | 7.996 IN |
CENTRIC 122.42029 Cross Reference
We have 3 alternatives for the 122.42029 by CENTRIC:
