BILSTEIN 41314333 FORD BRONCO;'21+; RR; B8 8112 DSA+

★★★★★ (0)

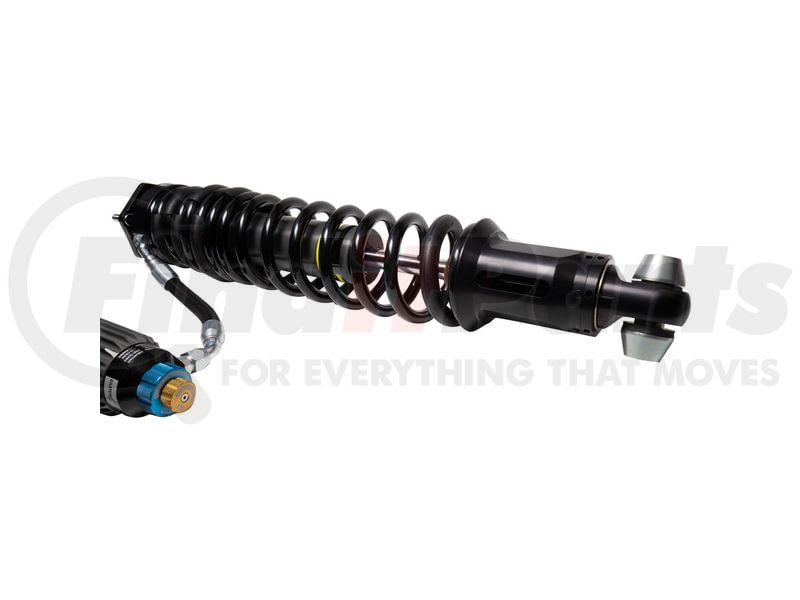

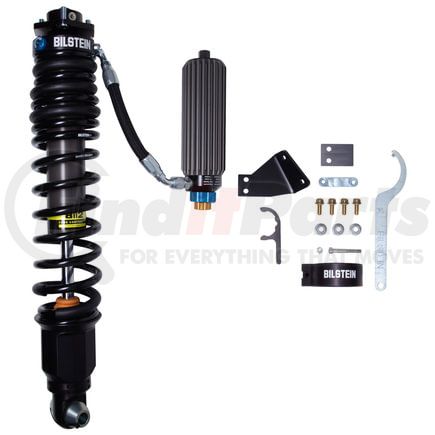

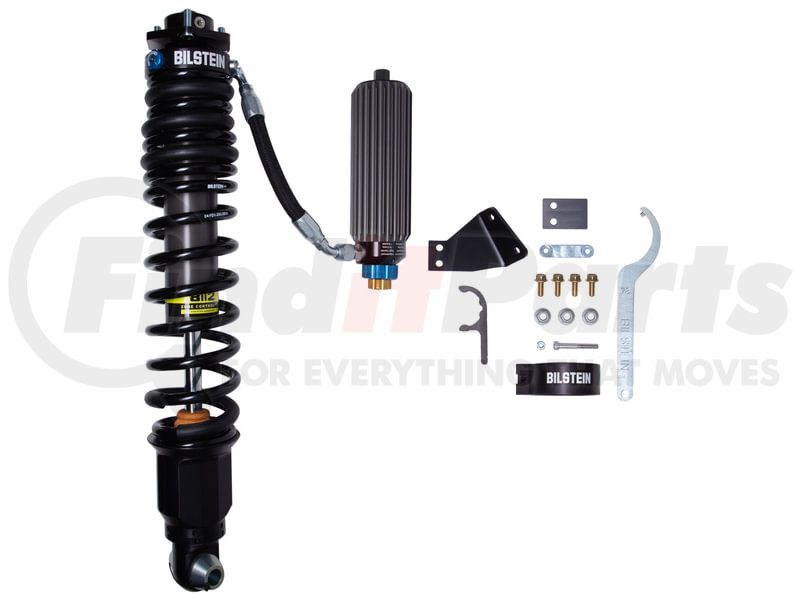

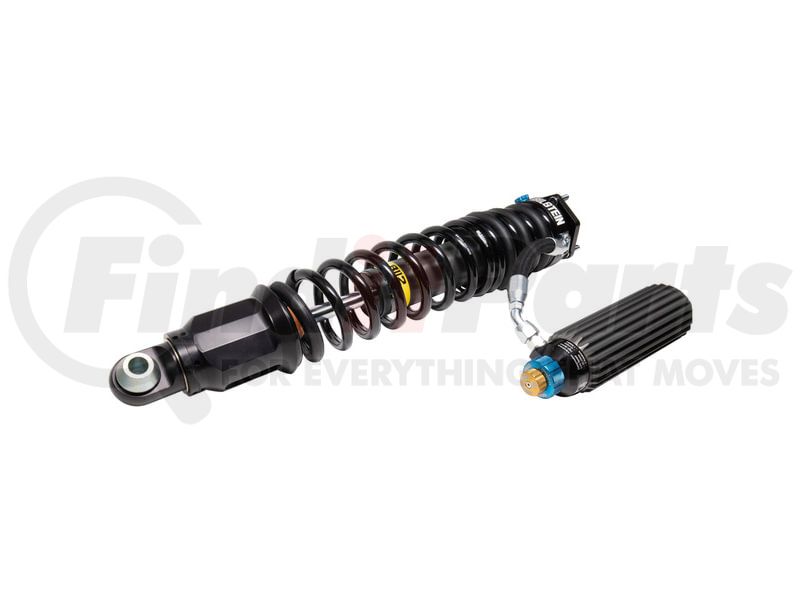

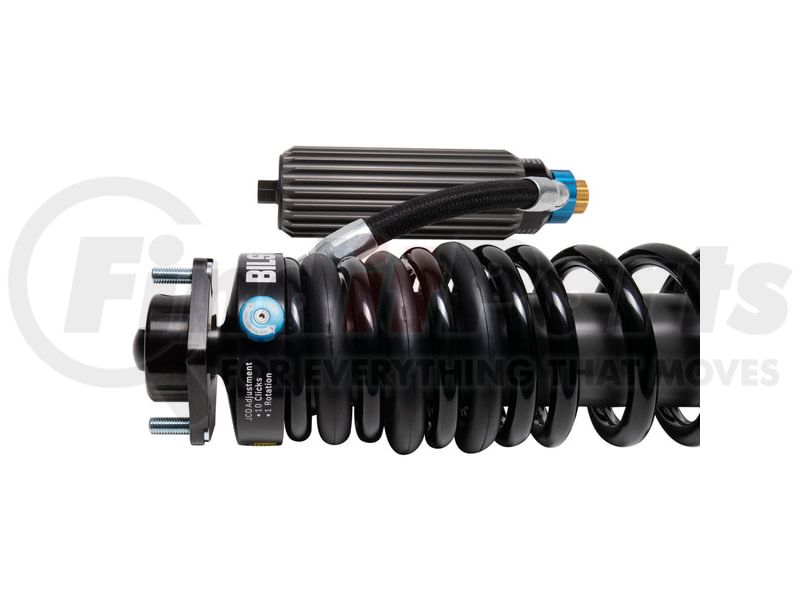

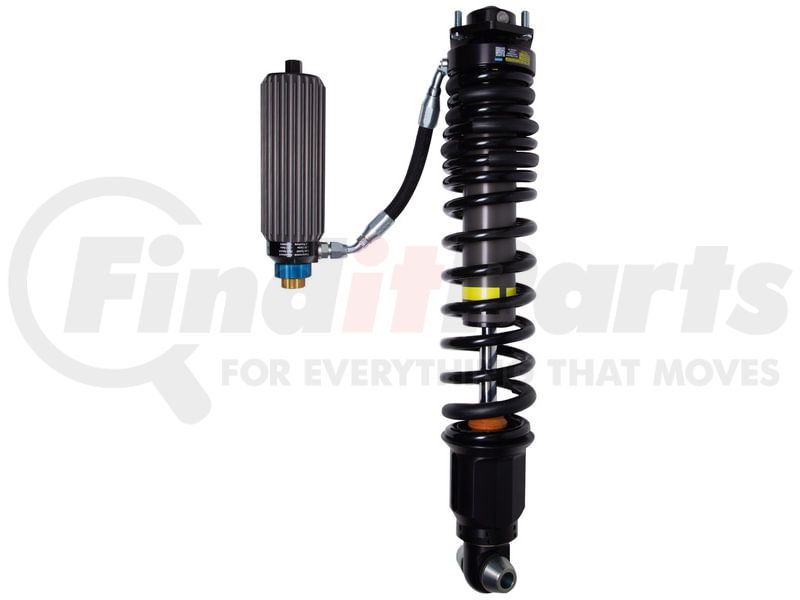

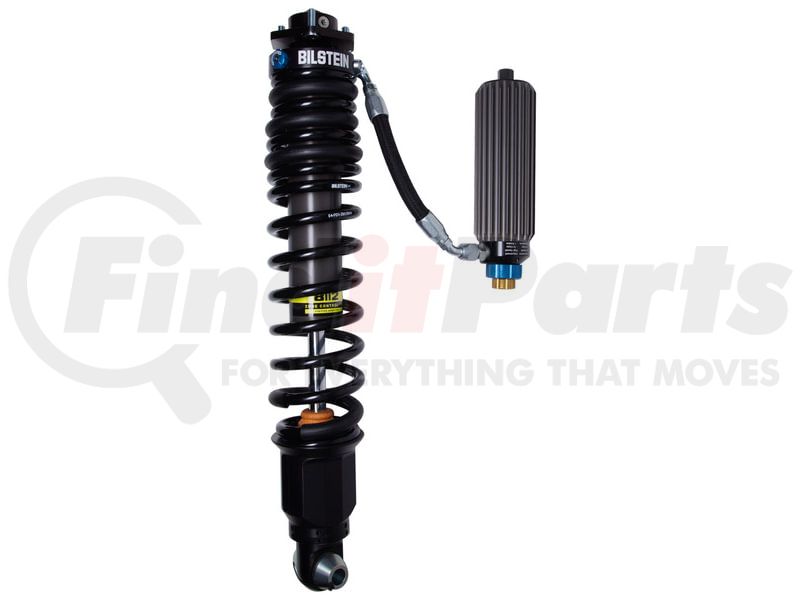

Bilstein 41314333 Suspension Shock Absorber and Coil Spring Assembly FORD BRONCO;'21+; RR; B8 8112 DSA+
BILSTEIN
Tap to view 9 more

$2,028.99

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 17
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

BILSTEIN 41314333 Part Description

Manufacturer

BILSTEIN

Product Description

B8 8112 (ZoneControl CR DSA+) - Rear Right Corner Module

Application Summary

Ford Bronco 2024-2021

Features & Benefits

  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

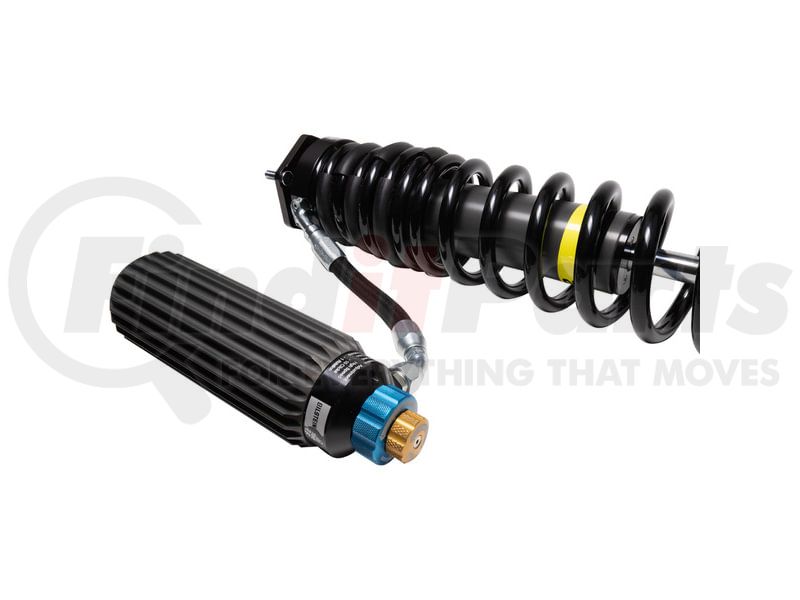

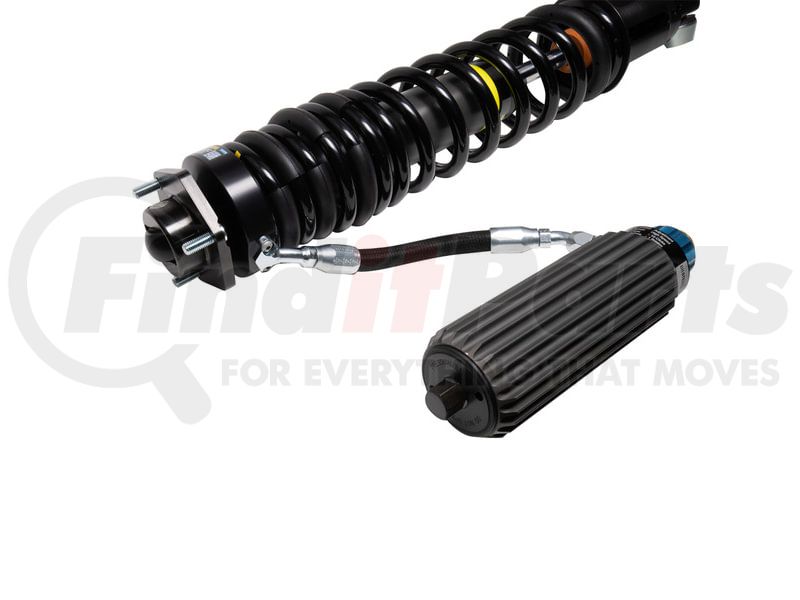

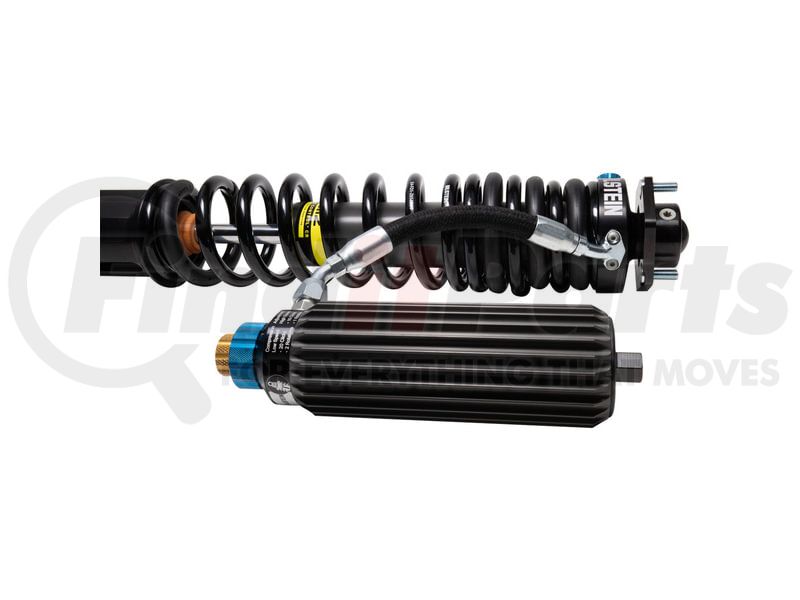

  • Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
  • Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
  • 60mm remote reservoir for increased oil capacity and cooling
  • Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
FORD BRONCO;'21+; RR; B8 8112 DSA+

BILSTEIN 41314333 Specifications

Product Attributes

Extended Length (mm)674.6
Internal DesignMonotube
FinishDampers: EVO Grey/Springs: Black
Body MaterialAluminum
Boot IncludedNo
TitleBilstein Shock Absorbers
RESERVOIRYes - Finned Aluminum
Adjustable DampingClick Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Collapsed Length (in)18.40
ParttypeShocks / Struts
Prop 65 (Y/N)Y
SeriesB8 8112 Black Hawk
Upper Mount TypeSpecial
Body Diameter (id)60mm
SegmentLight Truck
Body DesignSmooth Body (Coilover)
Lower Mount TypeEye 25.4mm with Heim Spacers
Collapsed Length (mm)467.1
Extended Length (in)26.60
Spring Seat IncludedYes
Rear Main Spring Rate (lbs/in)288
Piston Diameter60mm
Shaft Diameter (MM)22.0

Additional Information

MSDS Sheet NumberUSA SDS_Shock_Air Spring_V2_EN.pdf
Remanufactured PartN
Refurbished PartN
Warranty Time24
Warranty Time UOMMO
Country of Origin (Primary)US
Harmonized Tariff Code (Schedule B)8708800050
Harmonized Tariff Code (HTS)8708801600
UPC00651860936178

BILSTEIN 41314333 Cross References

BrandPart Number
FOX Offroad Shocks883-06-213
ICON Vehicle Dynamics48710C
King Shocks25001-393A

BILSTEIN 41314333 Fits Vehicles

  • Ford Bronco (2021-2025)
