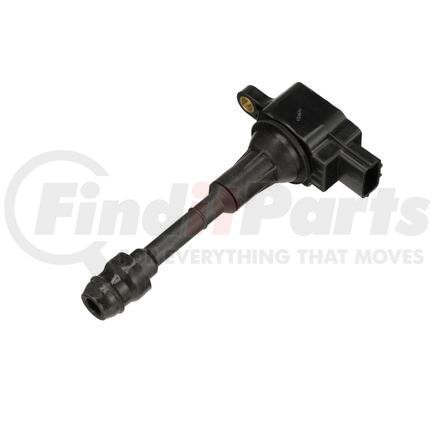

Standard Ignition UF-560 - Coil on Plug Coil
- Part Number
- UF-560
- Manufacturer
- STANDARD IGNITION
- Description
-
Coil on Plug Coil
details
$5999
MSRP: $220.71
Save: $160.72
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Coil on Plug Coil
Features & Benefits
- 100% pure copper windings in primary and secondary bobbins improve durability and provide higher resistance to internal shorts and dielectric breakdown
- Electronic ignition module profile and feedback signal ensures proper OE fit, form, and function
- Thermoplastic housing withstands heat stress for enhanced durability
- Internal core made from grain-oriented electrical steel limits loss factor within magnetic circuit to reduce heat that may reduce coil endurance
- Samarium-Cobalt (SmCo) magnet produces max high voltage output at all speeds
- Stainless steel spring resists corrosion
- Tin-plated brass terminals improve electrical contact and protect against corrosion
- High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or thermal breakdown
- Silicone rubber boot withstands extreme heat to ensure superior insulation
- Advanced bobbin technology, highly specialized silicone magnetic steel core, and optimized winding all provide an accurate high energy output to restore engine performance
- Engineered and tested to meet OE spark energy output, impedance, and durability in all operating conditions.
- Engineered specifically for Isuzu vehicles
- High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or internal energy loss
- High-temp boot prevents high-voltage leaks, while stainless-steel spring with internal ferrite noise suppressor prevents radiofrequency interference (RFI)
- Manufactured in Poland
- Our ignition coils use 100% pure copper windings in the primary and secondary bobbins to improve durability and provide higher resistance to internal shorts and dielectric breakdown
Product Attributes
| Voltage | 12 |
| Color | Black |
| Ignition Type | Distributorless |
| Coil Type | Electronic |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Connector Quantity | 1 |
| Connector Shape | Round, Rectangular |
| Connector Type | Plug In |
| Mount Type | Bolt On |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | Yes |
| Coil Included | Yes |
| Grease Pack | No |
| Instructions Included | No |
Additional Information
| Country of Origin (Primary) | PL |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00707390735467 |
Part Interchanges
- Beck/Arnley 178-8460
- Delphi GN10219
- Echlin IC640
- NGK 49013
- NGK U5302
- Motorad 1IC304
- PRENCO 36-8325
- Autopart International 2505-306633
- BWD E1060
- Duralast C1485
- Isuzu 8973154380
- Airtex 5C1484
- Import Direct 23-0146
- BWD Intermotor E1060
- CARQUEST Premium By WELLS 52-1803
- Carquest Premium Vehicle Solutions EBC1095
- 921-2248
Fits Vehicles
- Isuzu Rodeo (2004)
