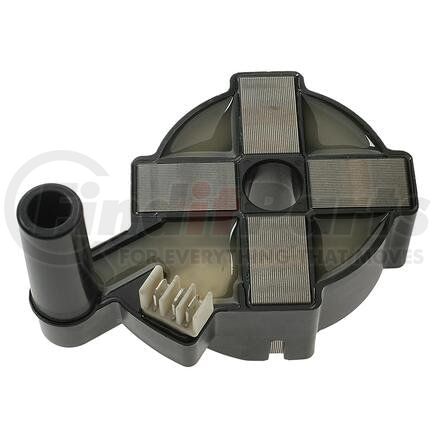

(888) 312-8812 Login SignupSTANDARD IGNITION UF-313 Electronic Ignition Coil
Tap to view 2 more
$9249
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jun 9
STANDARD IGNITION UF-313 Part Description
Manufacturer
Product Description
Electronic Ignition Coil
Features & Benefits
- A full E-Lam core of silicon steel and solid brass high voltage terminals protects against corrosion. Our ignition coils are built for maximum output voltage
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
- As a tier I manufacturer with engineering and design capabilities second to none, our ignition coils are made to the highest quality standards
- Our ignition coils use 100% pure copper windings in the primary and secondary bobbins to improve durability and provide higher resistance to internal shorts and dielectric breakdown
- Our premium ignition coils consist of a special blended formula for the best performance, longest life and better heat dissipation
- Primary and Secondary windings feature enamel magnet wire for the highest temperature rating in the aftermarket
STANDARD IGNITION UF-313 Specifications
Product Attributes
| Mount Type | Bolt On |
| Connector Shape | Rectangular |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | Yes |
| Coil Included | Yes |
| Contents | Ignition Coil |
| Grease Pack | No |
| Instructions Included | No |
| Connector Quantity | 1 |
| Mounting Hardware Included | No |
| Terminal Type | Blade |
| Coil Type | Electronic |
| Ignition Type | Electronic |
| Mounting Position | External |
| Color | Black |
| Voltage | 12 |
| Connector Type | Plug In |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Warranty Distance UOM | MI |
| Warranty Distance | 36000 |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Country of Origin (Primary) | TW |
| UPC | 00091769565657 |
STANDARD IGNITION UF-313 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 89057978, E515D |
| Airtex | 5C1122 |
| Autopart International | 2505-304361 |
| BWD | E225 |
| BWD Intermotor | E225 |
| Beck/Arnley | 178-8241, 178-8242 |
| Bosch | 0986JG1022 |
| CARQUEST Premium By WELLS | 52-1698 |
| Carquest Premium Vehicle Solutions | EBC1401 |
| Delphi | GN10133, GN10348 |
| Diamond | F693 |
| Duralast | C1324 |
| Echlin | IC33 |
| Ford | F32Z12029AA, F32Z12029AB |
| Import Direct | 23-0185 |
| Import Direct Ignition | 23-0185 |
| Kem | 354R |
| MasterPro | 2-5170 |
| Mazda | KLY118V00, KLY118V80 |
| Mitsubishi | H3T021, H3T021MIT |
| Motorad | 2IC355 |
| Motorcraft | DG495 |
| N/A | DG495, UF-313, UF313 |
| NGK | 48673, U1127 |
| NGK SPARK PLUGS | U1127, 48673 |
STANDARD IGNITION UF-313 Fits Vehicles
- Mazda MX-3 (1992-1993)
- Mazda 626 (1993-1994)
- Mazda MX-6 (1993-1994)
- Ford Probe (1993-1994)
