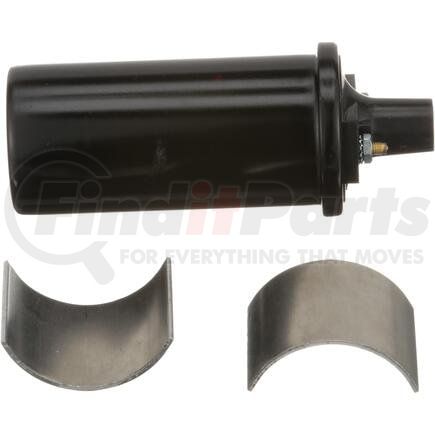

STANDARD IGNITION UF-4 Part Description
Manufacturer
Product Description
Can Coil
Features & Benefits
- A full E-Lam core of silicon steel and solid brass high voltage terminals protects against corrosion. Our ignition coils are built for maximum output voltage
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
- As a tier I manufacturer with engineering and design capabilities second to none, our ignition coils are made to the highest quality standards
- Our ignition coils use 100% pure copper windings in the primary and secondary bobbins to improve durability and provide higher resistance to internal shorts and dielectric breakdown
- Our premium ignition coils consist of a special blended formula for the best performance, longest life and better heat dissipation
- Primary and Secondary windings feature enamel magnet wire for the highest temperature rating in the aftermarket
STANDARD IGNITION UF-4 Specifications
Product Attributes
| Mounting Hardware Included | No |
| Oil Filled | Yes |
| Mounting Location | Fender |
| Ignition Type | Oil Filled |
| Contents | Ignition Coil |
| Connector Quantity | 2 |
| Mounting Bracket Included | No |
| Terminal Gender | Male |
| Connector Gender | Female |
| Terminal Quantity | 2 |
| Mount Type | Bolt On |
| Terminal Type | Screw |
| Color | Black |
| Voltage | 12 |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Warranty Distance UOM | MI |
| Warranty Distance | 36000 |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Country of Origin (Primary) | CN |
| UPC | 00091769032944 |
STANDARD IGNITION UF-4 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 12321584, 89057927, C502, E525, E532, E570C |
| Airtex | 5C1017 |
| Autopart International | 2505-302214 |
| BWD | E507 |
| BWD Intermotor | E507 |
| Beck/Arnley | 178-8066, 178-8075, 178-8081, 178-8084, 178-8117, 178-8125, 178-8233 |
| Bosch | 00200, 00204, 00206, 00212 |
| CARQUEST Premium By WELLS | 52-1918, 52-1937 |
| CARQUEST Standard | 26223 |
| Carquest Premium Vehicle Solutions | EBC1543 |
| Cartek | 5014 |
| Chrysler | MD025702 |
| Daihatsu | 1950087701000 |
| Delphi | GN10215 |
| Duralast | C840, C864, C877, IGNB10072 |
| Echlin | IC83 |
| General Motors | 12321577 |
| Import Direct | 23-0257 |
| Isuzu | 8942483450, 894248345O |
| Kem | U12W |
| Mazda | 802518100 |
| Mighty Distributing System | 2-501, 6-508 |
| Motorad | 3IC220 |
| N/A | C-624, CUF4, UF-4, 22433H7240 |
| NAPA Mileage Plus | IC83SB |
| NGK | 48776, U1099 |
| NGK SPARK PLUGS | U1099, 48776 |
| Nissan | 22433H7280, 22433P7500, 22433P7500MP, 22433P7510, 22433P7540, 22433U2211, 22448H7285, 22448V0800, 22448V0801, 22448V0821, 22462V0800, 22462V0821 |
| PRENCO | 36-1021 |
| Subaru | 429882000 |
STANDARD IGNITION UF-4 Fits Vehicles
- Subaru GL-10 (1988-1989)
- Subaru GL (1988-1989)
- Subaru DL (1988-1989)
- Nissan Sentra (1984-1985)
- Nissan Tsuru (1991-1992)
- Plymouth Caravelle (1983)
- Nissan B210 (1977-1978)
- Nissan Maxima (1981-1984)
- Nissan 310 (1979-1981)
- Toyota Pickup (1984-1988)
- Nissan 720 (1980)
- Nissan 620 (1978-1979)
- Toyota Corolla (1985-1987)
- Toyota Tercel (1980)
- Toyota MR2 (1985-1989)
- Toyota Land Cruiser (1981-1990)
- Toyota Cressida (1980-1982)
- Toyota Corona (1980)
- Toyota Celica (1979-1982, 1985)
- Toyota 4Runner (1985-1988)
- Nissan Pulsar NX (1983-1984)
- Nissan 280Z (1978)
- Nissan 260Z (1974-1975)
- Nissan 810 (1978-1981)
- Nissan 280ZX (1979-1983)
- Nissan 210 (1979-1982)
- Nissan 510 (1978-1981)
- Nissan 200SX (1977-1981)
- Chrysler E Class (1983-1984)
- Chevrolet Nova (1988)
- Plymouth Voyager (1984, 1986-1987)
- Plymouth Sapporo (1980-1983)
- Plymouth Reliant (1981-1985)
- Plymouth Arrow (1979-1980)
- Plymouth Conquest (1984-1986)
- Plymouth Colt (1979-1990)
- Plymouth Champ (1980-1982)
- Plymouth Arrow Pickup (1979-1982)
- Dodge Ram 50 (1983)
- Dodge Power Ram 50 (1983)
- Dodge D50 (1979-1982)
- Dodge Conquest (1984-1986)
- Dodge Colt (1980-1986)
- Dodge Challenger (1979-1983)
- Dodge Aries (1981-1985)
- Dodge 600 (1983-1985)
- Dodge 400 (1982-1983)
- Chrysler Town & Country (1982-1985)
- Chrysler New Yorker (1983-1985)
- Chrysler LeBaron (1982-1984)
- Chrysler Executive Sedan (1983-1984)
- Isuzu Impulse (1983-1989)
- Daihatsu Charade (1988-1992)
- Subaru Loyale (1990-1994)
- Subaru XT (1987-1991)
- Subaru RX (1987-1989)
