(888) 312-8812 Login SignupDONALDSON P550117 LUBE CARTRIDGE
MSRP: $24.10
$2249
Save $1.61
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 6
DONALDSON P550117 Part Description
Manufacturer
Product Description
LUBE FILTER, CARTRIDGE
Application Summary
GMC 5572425
Features & Benefits
- Reusable outer housing needs no gasket for a cartridge swap
- Aligns against the existing internal seal surface directly
- Outer housing stays in service instead of being discarded
- Maintains consistent sealing across many repeated service intervals

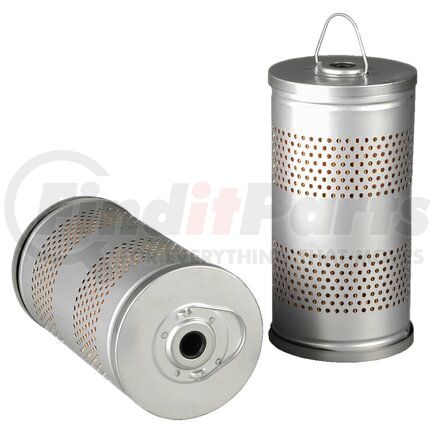

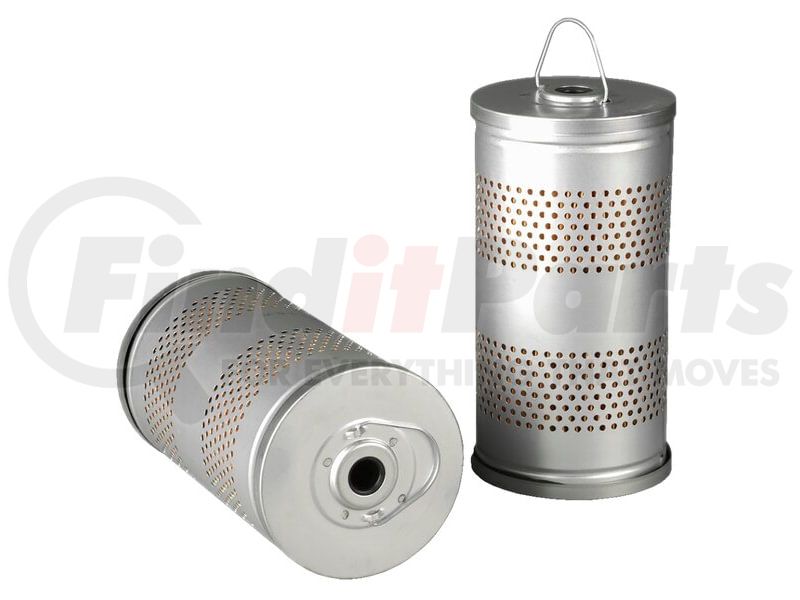

Donaldson Lube Cartridge
The Donaldson Lube Cartridge fits inside a reusable outer housing, so only the filtering element itself needs replacing at each oil change instead of the canister and mounting hardware. The Donaldson P550117 seats against the same internal seal the housing already uses, so no separate gasket kit is needed for a routine swap. That reusable housing design means less metal and plastic thrown away at every service interval compared to a fully disposable spin-on filter. Consistent cartridge sizing keeps that reusable housing sealing correctly change after change, without the seal surface degrading over repeated services.
DONALDSON P550117 Specifications
Product Attributes
| Length | 7.99 in |
| Efficiency 99% | 20 MICRON |
| Efficiency Test Std | SAE J1858 |
| Inner Diameter | 0.55 IN |
| Media Type | Cellulose |
| Outer Diameter | 4.02 IN |
| Primary Application | GMC 5572425 |
| Style | Cartridge |
| Length | 7.99 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00742330040973 |
DONALDSON P550117 Cross References
| Brand | Part Number |
|---|---|
| AC DELCO | 12117, AC114, AC462C, AC83, C117, C159, C206, K17, P117, P206, P206F, P271, P417, S2, SC250, SC259, SC260, SD2 |
| ALCO | MD177 |
| ALFA ROMEO | 162059708 |
| ALLCAR | A103 |
| ALLIS-CHALMERS | 25257, 220026, 2200266, 220029, 2200269, 252571, 4369280, 4369289, 43692890, 4503973, 45039735, 4503975, 4613110, 4613117, 46131170, 5572425, 70204912, 70220026, 70240912, 74503973, 74613117, 75613117, B3972, B3973, P3972 |
| BALDWIN | P52 |
| FLEETGUARD | LF504 |
| FRAM | C31P |
| LUBER-FINER | P71 |
| N/A | 196646, 520831, 951745, 106, 605, LF103, LF106, LF605, P106, 5342, C30, C301, C30DB, C30P, C184, C30PL, C31, C31P, C31PL, C873, C8731, F30, F30P, F30SERIES, F31, F36, K525G, K575, L525, K525, 52937, 574127, L40035, L40050, L47356, MF94A, N35, OX80, P35, P50, P50L, P521, PB3015, PB3015D, PD50, PD50SERIES, PD51, PEL250, PM3015, PM356, PM356D, CW239M, CW500, PC500, PC500P, PC5F, 51021, 51021E, 51101, 51500, 51502, 51503, 59097, 5FP, CW213MP, 602, 603, 92021, 92239, 92500, 92503, C201K, C42F, C52MS, P42, P52, T103W, LM30, LM66, LM71, LP2210, LP2236, LP30, LP71, 85021, 85239, 85500, 85503, LF3357, LF3391, LF572, A31, LFR83391, LFR8504, LFR8540, LFR8572, LFR83357, BC7, BR6, 702167, B26, B45, BC5, 1502, 1021, 1101, 1500, 1503, 9097, J8611117, 86182A, 88020D, 88280A, 2UU0746, 32243CS, 394667, 402719, 407018, 42843CS, 62047, 75251BS, 7A5507, 7A5507A, 83254CS, 83317CS, 89254CS, 892971, TO11633, 1090234, 1090690, 1090707, 1090708, 1090714, 1268821, 17252DS, 17253CS, 17253GS, 17256CS, 216763, 26344, 26404, 26507, 281286, 2CJ0611, 2CJ0807, 2UG0611, 2UU01335, 2UU0611, 2UUA0611, 2ZJ0611, 2ZJ0807, 32243BS, 328A6, 33243BS, 407026, 42740BS, 1090726, 1269483, 1274838, 1319A6, 1391A6, 140382, 1431A6, 1653A6, 1713365, 47240CS, 47250BS, 47352B, 47652CS, 5572425, 600094, 925809, AUU1335, C64682, LE580, AC114, SC260, SD2, 12117, AC462C, AC83, C117, C159, C206, K17, P117, P206, P206F, P271, P417, S2, SC250, SC259, 270197, 286622, 28471, 3I1146, 636372, 9Y4486, 9Y4497, A28741, F600L214, 11A18662A, 11TS18632, 11TS18658A, 11TS18658B, 11TS18662, 11VV18658A, 11VV18658B, 11VV18660, 11VV18662, 11W18657A, 11W18657B, 11W18658, 11W18658A, 11W18658B, 11W18660, 11W18662, 11W18662B, 11W18662W, 11W18697, 11W8697, 11WA18662B, 11WA18662W, 21TS18658A, 21TS18658B, 29B18697, 5000877, 5000885, 5000890, 5011431, 5011475, 5012316, 51T18697, 51T6725A, 51T67275A, 59LK6714A, 59LK714A, 59X18660, 8EL6714C, 8EL6714C1, 8EL714C1, 8MB6714A, 8MB6744, 8RWS6714, 8WS6714, 9576P550117, 9576P550300, A730X6731L2A, A730X6744L2A, A730X6744RA, A7TN6731A, A7TW6731A, A830X6731RA, BEL6714C1, OC20010, SFO1190, 20, 20C, 45, 45C, 45LC, O2605, EL4308, EL4308F, FC30, MS, MSP, A103, WGL3357, WGL504, WGL572, DNP550117, 35, 50, P2677, M30, M400, M71, P30, P71, 81055040019, 81055040029, 81125030010, P1025F, P10561X, PF1190, PF1190X, PF1195, 366E10402, PF1015N, PF1025, PF1025N, 133031, 1330310, 1330311, 1168469, P3H4120, H2014, D05E200M, E200M, E200M1, E200MD05, E2014, E201499, E20225, E20N, E20N01, 4022105, 0000122407, 0004022105, 0644700123, 0947700123, 0947700126, 122407, 6005019818, 644700123, 929A6, 944700123, 944700126, 947700123, 947700126, 0001846725, 0441840025, 1846725, 1847625, 3521800009, 441840025, 70025725, 74651047, AR29174R, AR2917AR, AR29589R, 1004487M1, 1004891M1, 1004894M1, 1004894M191, 1004894M91, 1004894M92, 1004895, 1004895M1, 1004895M2, 1009064, 1009064M91, 1015713M91, 1504198M91, 172066112, 2870074M1, 764457, 764457M91, 840750M1, 840870, 840870M1, 1001894M1, 2870094M1, 764455, 764455M91, 840870M91, 26929540, 440560, TC7844, 5502266, 5507621, 7001224, 1350160, 5571343, 5572428, 81055046008, 88055040001, 88801161118, 90101161188, 90801161188, 81055040008, 010070AB, 010071AB, 070071AB, 07461, D7461, 7461, E530, E531, X13372, X13373, X8714, X8790, 014525, 103803, 103825, 14525, 10300477, 9709003400, 9709003409, 9710009801, 97125402, 97901147, T86, 10070AB, 10071AB, 103261R91, 107461, 114929HX, 205739H1, 2113, 3876100, 422547C1, 55900100345, 7232, 72321, 7461AB, 8888529, A28008, A8722, TF400, 72204, 408695, 466176, 20009, 236GB114, 236GB117, 236GB217, 236GB233, 236GB241, 43SB32, G31, G31M, G3M, F30BP, R8, R801, RMS16BP, E4308BP, 3890200, FS21776U, 5570092, 60369, Q31, QC30, 162059708, MPL796, 135016, 1350260, 15500, 12800, 30006, 31506, 33506, SA12800, SA17, SA18717, SA20, 155004, SA27, SA350, SA60, 35575, 3575, MC35, MC50E, 0310054, 0310284, 0310310, 2112, 310054, 310284, 310310, 43247, 47315768, 47315769, 10214, 11767, 47312183, 47312288, 1457429180, 1457431481, 1457431485, 24HE, 4006HE, 4131HE, 4141HE, 9457200240, 9457240060, 9457241310, 9457241410, 1457429180001, 1457429181, 1457429245, 1457429246, 1457431118, 1457431223, 1457431356, 1457431479, 1457431480, FJSJ24P92Z, P9180, P9181, 1457429160, 1457429161, 1457429162, EFL184, EFL213, EFL217, EFL269, EFL275, FL146, FL41, FL89, TC7834, VS3985, 92502, AZL022, AZL049, AZL105, GP2, LEB5040, LEB5040COTTON, LEB5040PAPER, AZL026, AZL136, G855, PM30, PM155, PM17L, PM17P, PMX17LN, PMX17N, PMX30N, 4910014, 411121, 411121T, 105687H1, 122128H1, 162245, 162246, 165245, 360429R91, 70410R91, 70411R91, 574108, AP3189, AP3485A, AP3174A, AP3189A, AP3271, AP3271A, AP3485, AP94A, FH108, FH127, LK3271, LK3485, 1168466, 1168467, 1168468, 220026, 25257, 4369289, 4503973, 4613117, 70025257, 70220022, 70220026, 70240912, 74369289, 74503973, 74613117, 75613117, 82171900, 8503214, 8809707, 897229, B3972, B3973, FFP14, FFP10032, FFP10241, FFP32, FFP68, 1499507, 243151, AC1032, AC3035, L502, L423, L424, L438, L499, R102, R102A, R102C, R102P, R2014, R2217, R2217P, R30, 92025817, 92085817, 92285817, 92400617, 92413117, 92005817, 209620, 92002417, 924141, SRPF31, SRP105, SRP30, SRPF30, SRPF31E, SRPW40, S15C, S3C, SEC, P155, P17, P17L, P17LP, S17N, X175N, X17LN, X17N, X30N, L23, L7, L97, 282K99, PL42, PL74, 521347, 794367, 316, 477, 552, 9323, FO1752, FOS812, LI4062, 200086, 295012001, 3000086, 3000087, 66U12921, SO3357, SO504, A600L221, F225L205, F226L205, F226L206, F226L319, F600L215, M330L500, M600L4110, M600L5010, M600L5101, F600L221, HD260L5010, LDF4272, M330L2150, M330L224, M6330, R600L422, R600L424, TH4276330, TH427L202, TH427L330, TH427L5010, TH42L330, U501L404, R600L4242, R600L444, RD6L5030, SD30453, T371L5000, T427L303, T427L403, T427L5000, TD500L5000, TD600L301, TD600L400, TD600L4000, TD600L5000, TH227L5010, U501L5000, 7364, 50329770, 557245, 59987081, 35290659, 4613110, 46131170, 70204912, P3972, 0025257, 0220026, 02200266, 0220029, 2200266, 2200269, 220029, 252571, 4369280, 43692890, 45039735, 4503975, 108280, 200336, 50666, 70411R1, 7000014631, 00013505500, 13505500, L30, EN120M, EN313, EN330, EN363, EN3631, EN3632, EN3633, ENC320, ENC3201, ENC320D, OX30, OX30D, OX80D, E1203, E120, E1200, EN1120, EN120, EN1200, EN1201, EN1203, EN1205, EN1208, 60369A, 5064, 5067, D63, D64, D67, 112685, 122685, 287022, 287052, 2001600, 2543400, 2543401, 5181127, FLR20003, AS173, AS117, 1107411, 1274834, 1900714, 75065398, 925089, 990656, 0794367, 3590794367, Y03724206, 22L2252, 237373, 237473, 238373, 607488, 36013357, 724401, 724401COTTON, 724401PAPER, 40600491, 40600494, 40700433, 1161543, ELHA4008, MO104, MO104P, MO105, MO105P, MO165, MO165P, MO167, MO167P, FH125, FH126, 1311281001, 330560188, 413907111, 559001000345, 614040111, 614070111, 614070263, 61407105, 10375022, 483407, 48A9311, 100130, FL504, 11403, 21415W, 31415W, 316701, BB21416, N23580A, 69016051, 20633, 5134RX, 5125421000, 5985420100, 172066122, 5125420100, 512542100, 43123, 431231, 43124, 43187, 431871, 43269, A43123, A43124, A431871, A43260, A43269, 926016, 105687, 162246H1, 162246HL, 165245H1, 162245H1, 7171, P149, P263, 30782201, 21862400, 0021862400, 0030782201, 3078220, M7822, 509025, 140302, 7A5507B, 0154451A, 101713, 102111, 154440, 15451A, 158324, 951475, 952218, A154451A, BMSA12800, U17R4V, 101737A, 159076, 176755, 50222, 553643, 60389, 6982, 950964, 101731, 101737, 913451, 300086, 14174, 766365, 801160151, 801160161, 8802842, 37242, 13312, 212880, 213227, 214672, 418E+96, 212E2550, 291E1728, 291E1758, 418E94, 7634, 801E1266, AP30, AP31, K50, A636372, 631198, A28471, 77250, 180244DS, 20225BS, HC47652CS, HS47652CS, SA89254CS, RV27A, 737A1, 23519155, 1651B66, FWF30, WCF30, WCF31, WCP117, WF30, WF30P, WF31, WF31G, WM117P, WP117, WRC40, FE6, S35, S50 |
| PUROLATOR | L40035 |
| WIX FILTERS | WIX FILTERS, 51503 |
DONALDSON P550117 Fits Vehicles
- Ford CL9000 (1981, 1983)
- Ford CLT9000 (1981-1986)
- Ford L9000 (1981, 1983)
- Ford LN9000 (1982)
- Ford LNT9000 (1981-1982)
- Ford LT9000 (1981-1984)
- Ford LTL9000 (1983, 1985)
- Ford LTS9000 (1984)
