(888) 312-8812 Login SignupMERITOR 16TYS3232A Drive Shaft End Yoke, 1.88 in. Bearing Cap Diameter, 0.09 in. Counter Bore Depth, 3.00 in. Hub Diameter
Tap to view 5 more
$58449
2 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MERITOR 16TYS3232A Part Description
Manufacturer
Product Description

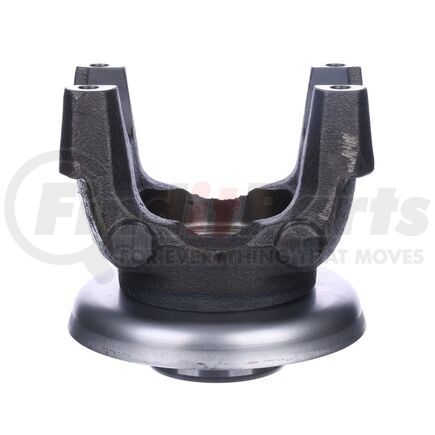

Drive Shaft End Yoke
Meritor Easy Service Drive Shaft End Yoke
The Meritor Easy Service Drive Shaft End Yoke gives the driveline a shaft-end connection for universal joint service. Its Easy Service design is used where joint access and yoke fit matter during commercial drivetrain repair. The yoke’s forked metal shape receives the joint while the hub section meets the shaft-side connection, creating the handoff point for torque movement. During driveline service, Meritor 16TYS3232A renews the end-yoke position without replacing the complete shaft assembly.

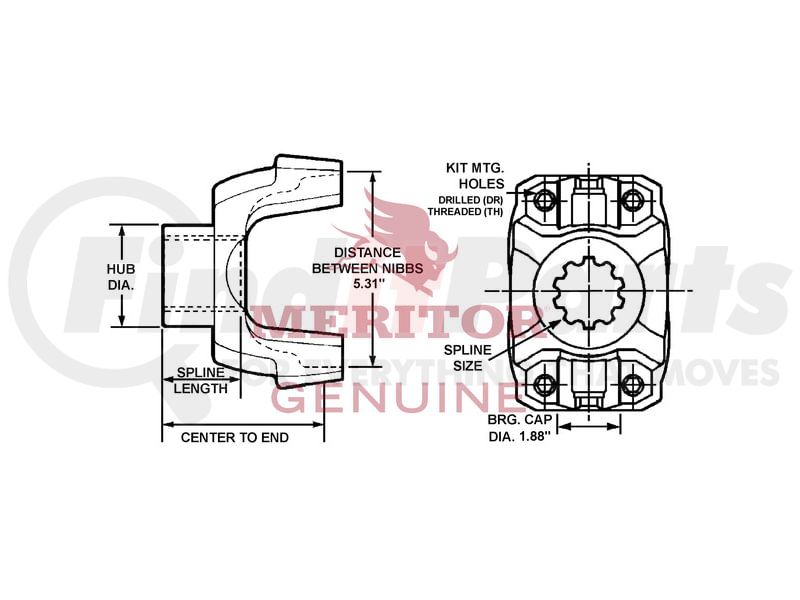

| Bearing Cap Diameter | 1.88 in. |
| Center To End | 5.54 in. |
| Counter Bore Depth | 0.09 in. |
| Deflector | DEFR50-7 |
| Distance Between Nibbs | 5.31 in. |
| Hub Diameter | 3.00 in. |
| Joint Angle | 32┬░ |
| Kit Mtg. Holes | TH |
| Series | 16N |
| Spline Diameter | 2.024 in. |
| Spline Length | 2.31 in. |
| Spline: Number Of Splines | 39I |
| Use Kit | KT16SB |
| Use U-Joint Kit | M674X |
| VMRS Code | 024-001-003 |
Meritor End Yoke
The Meritor end yoke offers durability and quality that matches that of its OE counterparts. It is suitable for heavy duty truck, tractor, and trailer applications.
Features & Benefits
- 100% genuine Meritor aftermarket replacement with brand new components
- Tighter balance specifications keeps vibrations to a minimum
- Made of high-grade steel and heat-treated for improved structural strength and longer service life
- Built and tested to withstand prolonged exposure to severe temperatures and other harsh operating conditions
- Forked yoke ears receive the universal joint during assembly work
- Easy Service layout improves access around joint replacement areas
- Hub section connects the yoke to the shaft-side interface
- Driveline repair stays centered on the shaft-end connection point
- Heavy metal form withstands repeated torque and road vibration
MERITOR 16TYS3232A Specifications
Product Attributes
| Bearing Cap Diameter | 1.88 in. |
| Brand | Meritor |
| Center To End | 5.54 in. |
| Counter Bore Depth | 0.09 in. |
| Deflector | DEFR50-7 |
| Distance Between Nibbs | 5.31 in. |
| HUB DIAMETER | 3.00 in. |
| JOINT ANGLE | 32 Degrees |
| Kit Mtg. Holes | TH |
| Number of splines | 39I |
| Series | 16N |
| Spline Diameter | 2.024 in. |
| Spline Length | 2.31 in. |
| Use Kit | KT16SB |
| Use U-joint Kit | M674X |
| Weight | 10.35 |
| Spline Length | 2.31 in. |
| Spline Quantity | 39I |
MERITOR 16TYS3232A Cross References
| Brand | Part Number |
|---|---|
| 216TYS32 32A, TDA16TYS3232A, 5462811X, 823516TYS3232A, ATI16TYS3232A |
