(888) 312-8812 Login SignupDANA SPICER 6-2-749-1 Drive Shaft Flange Yoke
Tap to view 7 more
MSRP: $602.53
$39149
Save $211.04
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
DANA SPICER 6-2-749-1 Part Description
Manufacturer
Product Description
Drive Shaft Flange Yoke
Features & Benefits
- Flange yoke design connects driveline shafts to companion flange mounting points
- Driveline interface component carries torque through a bolted flange connection
- Positions the connection point at the end of the shaft where flanges meet
- Suits heavy-duty driveline service involving flange-mounted shaft assemblies

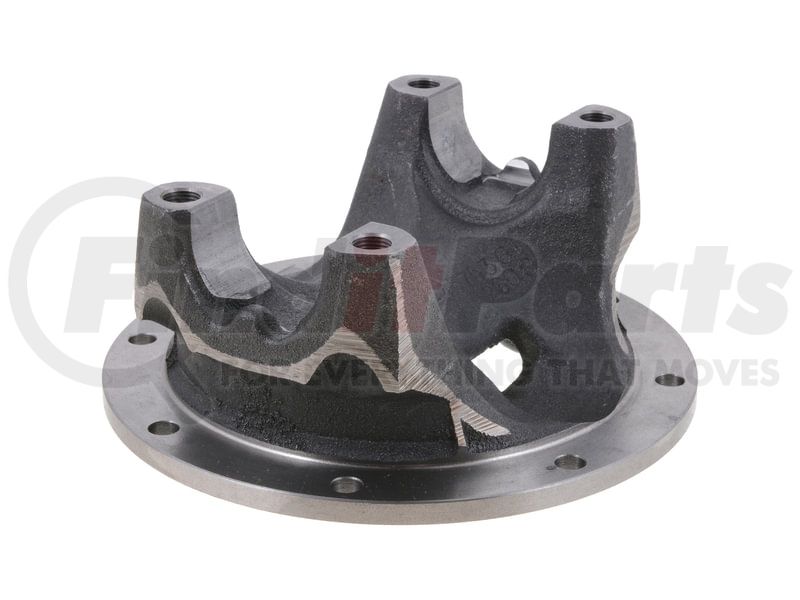

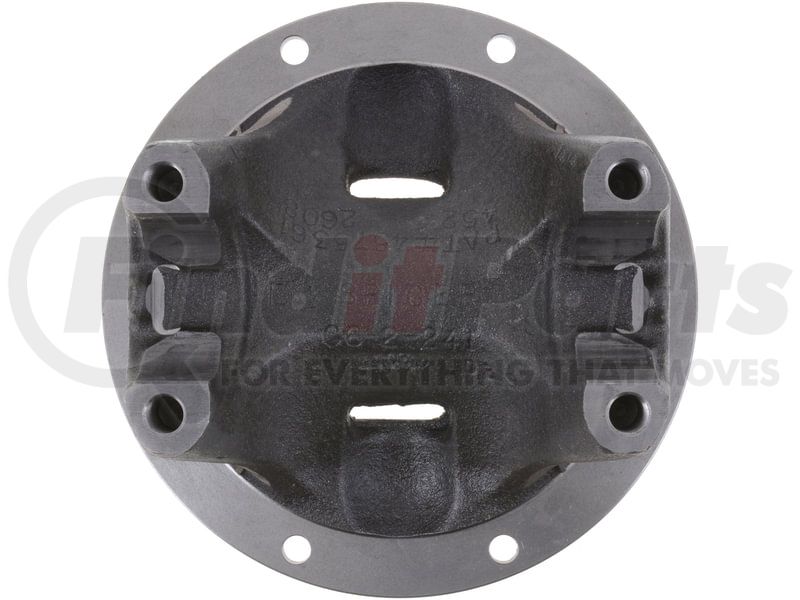

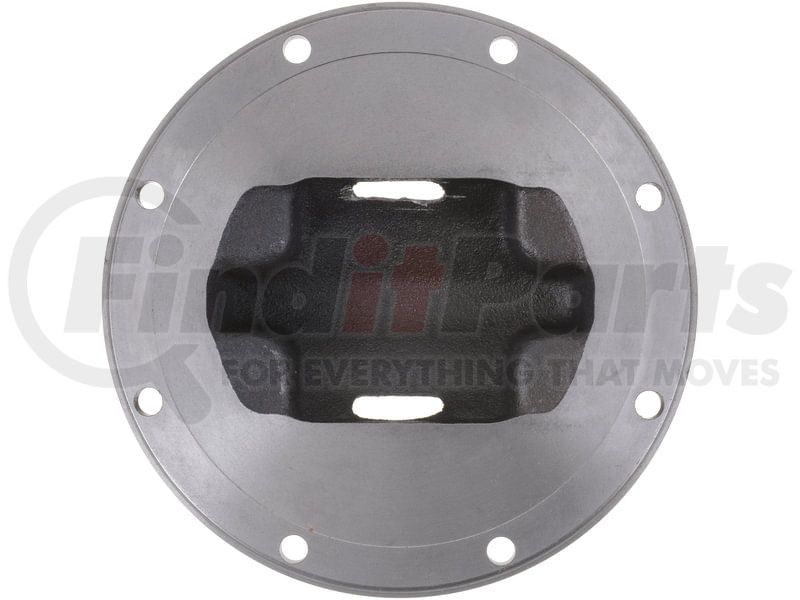

Dana Spicer Flange Yoke
Connect driveline components with the Dana Spicer Flange Yoke. This Dana Spicer 6-2-749-1 flange yoke sits at the driveline connection point where the shaft meets a companion flange, making it a key interface piece rather than a general shaft component. It is built for heavy-duty applications where torque transfer occurs through bolted flange connections. Its role at that junction makes it more specific than slip yokes or tube sections used elsewhere in the driveline.
DANA SPICER 6-2-749-1 Specifications
Product Attributes
| Series | 1710 |
| Material | Steel |
| Number of Bolt Holes | 8 |
| Design | Circular |
| Bolt Circle Dia. In. (b) | 7.250 |
| Bolt Hole Dia. In (b) | .375 - DRILLED |
| Flange Face To C/l In. (g) | 3.000 |
| Flange Or Swing Dia. In. (a) | 8.000 |
| Outside Yoke Dimension In.(e) | 6.19 |
| Pilot Dia. M=male F=female (c) | 7.750 - MALE |
| Yoke Bearing Dimension In. (d) | 1.938 |
| Joint Angle #1 | 22 |
| Joint Angle #2 | 29 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913215910 |
| VMRS Code | 024002016 |
DANA SPICER 6-2-749-1 Cross References
| Brand | Part Number |
|---|---|
| W719414S450B, SP627491 | |
| Caterpillar | M3X2578 |
| Daimler Truck North America | SP 6 2 749 1, SP 6 2 749 1HP |
| Freightliner | SP 6 2 749 1, SP 6 2 749 1HP |
| International Harvester (IHC) | 1668935C1, 627491, D627491, E627491 |
| Mack | 2104-627491, 4NPN022701 |
| Marmon | MT759279 |
| Navistar | 1668935C1, 627491, D627491, DS627491, E627491 |
| Neoplan | KL0601001-003 |
| Paccar Parts | 6-2-749-1 |
| Peterbilt | 6 2 749 1 |
| UAP | 6-2-749-1 |
| Volvo | 4NPN022701, SP 627491 |
