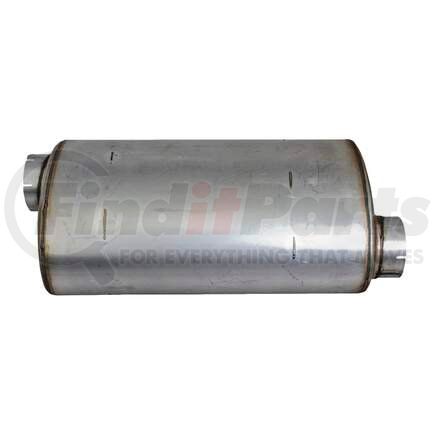

Name: Donaldson M140048 MUFFLER, OVAL,
SKU: m140048
Price: 2838.99 USD
Availability: InStock

DONALDSON part description

Product Description

MUFFLER, OVAL STYLE 2

Product Attributes

Body Length	30.00 in
Overall Length	38.00 in
Attenuation Hr	16 dBA
Attenuation Lr	11 dBA
Back Pressure High-range	Hg2.99 inch Hg)
Back Pressure Low-range	Hg0.98 inch Hg)
Back Pressure Mid-range	Hg2.01 inch Hg)
Body Diameter Maximum	18.12 in
Body Diameter Minimum	12.12 in
Inlet Clock Position	12/31/1899 3:00:00 AM
Inlet Diameter	6.04 in
Outlet Clock Position	12/31/1899 9:00:00 AM
Outlet Diameter	6.04 in
Rated Flow Hr	106.5 m³/min (3761 cfm)
Rated Flow Lr	61.5 m³/min (2172 cfm)
Rated Flow Mr	87 m³/min (3072 cfm)
Style	Style 2

For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
