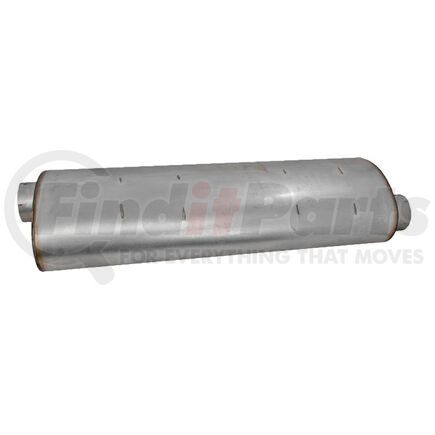

Name: Donaldson M120448 Exhaust Muffler - 50.00 in. Overall length
SKU: m120448
Price: 1370.99 USD
Availability: InStock

DONALDSON part description

Product Description

MUFFLER, OVAL STYLE 2

Product Attributes

Body Length	44.02 in
Overall Length	50.00 in
Attenuation Hr	18 dBA
Attenuation Lr	13 dBA
Back Pressure High-range	Hg2.99 inch Hg)
Back Pressure Low-range	Hg0.98 inch Hg)
Back Pressure Mid-range	Hg2.01 inch Hg)
Body Diameter Maximum	15.00 in
Body Diameter Minimum	10.00 in
Inlet Clock Position	12/31/1899 3:00:00 AM
Inlet Diameter	5.03 in
Outlet Clock Position	12/31/1899 9:00:00 AM
Outlet Diameter	5.03 in
Rated Flow Hr	62.9 m³/min (2221 cfm)
Rated Flow Lr	36.3 m³/min (1282 cfm)
Rated Flow Mr	51.3 m³/min (1812 cfm)
Style	Style 2
